53PERIODIC SERVICE

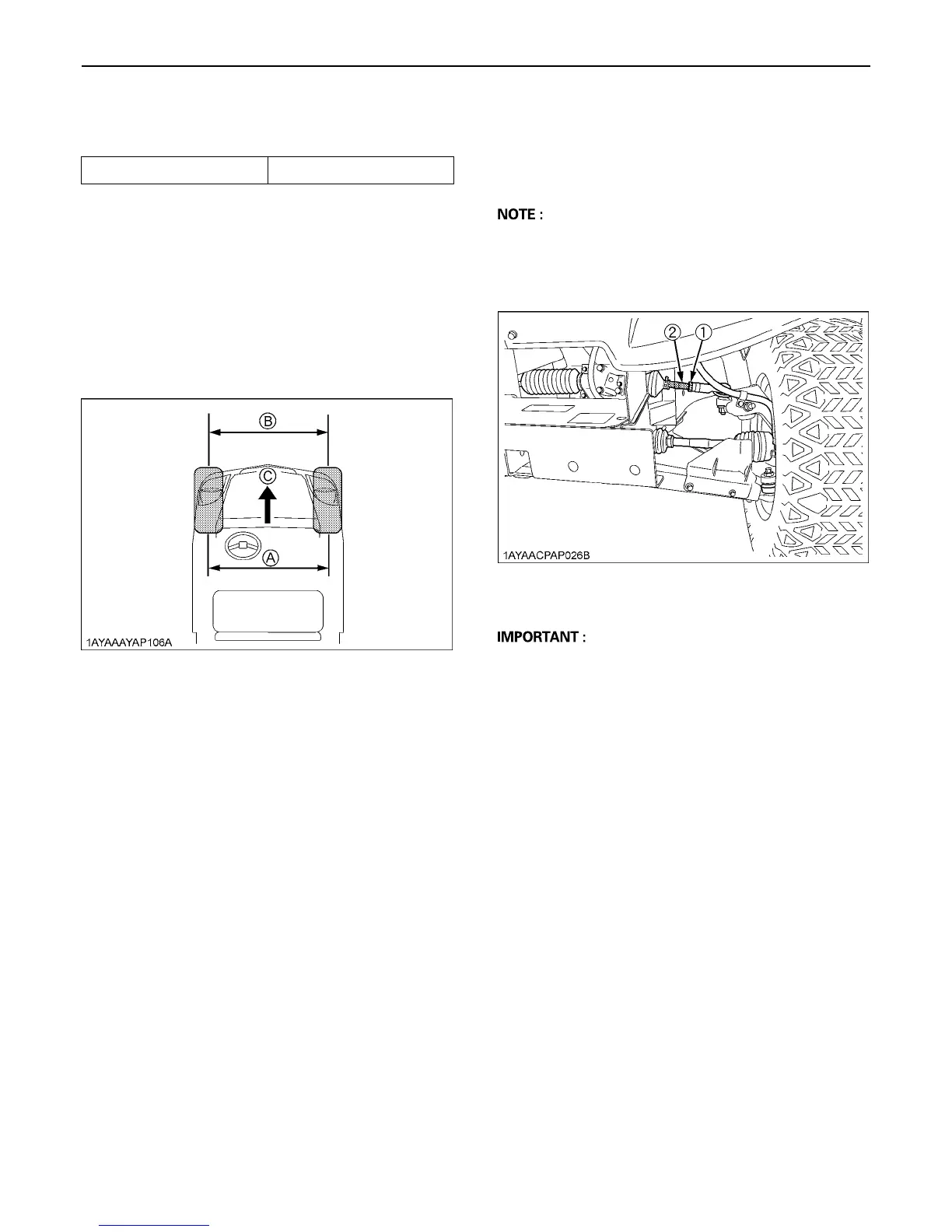

BAdjusting Toe-in
1. Park vehicle on a flat place.
2. Turn steering wheel so front wheels are in the straight
ahead position.
3. Lock the park brake and stop the engine.
4. Measure distance between tire beads at front of tire, at
hub height.
5. Measure distance between tire beads at rear of tire, at
hub height.
6. Front distance should be shorter than rear distance. If
not, adjust tie rod length.
C Adjusting procedures
1. Loosen the lock nut and turn the tie rod to adjust the
rod length until the proper toe-in measurement is
obtained.
2. Retighten the lock nut.
A Tightening torque:
74.0 to 84.0 N-m
(7.6 to 8.5 kgf-m)
(55 to 61 lbf-ft)
A Keep the length of the left and right tie-rod equal.
Proper toe-in 0 to 20 mm (0 to 0.79 in.)
(A) Wheel - to - wheel distance at rear
(B) Wheel - to - wheel distance at front
(C) "FRONT"
(1) Lock nuts
(2) Tie-rod
