63PERIODIC SERVICE
C Protected circuit
BReplacing Slow-Blow Fuses
The slow-blow fuses are intended to protect the electrical
cabling. If any of them have blown out, be sure to pinpoint
the cause. Never use any substitute, use only a KUBOTA
genuine part.
C Replacement procedure
1. Disconnect the negative cable of the battery.
2. Remove the cover and the slow-blow fuse box cover.
3. Pull out the slow-blow fuse.
4. Insert a new slow-blow fuse into the slow-blow fuse
box.
5. Install the slow-blow fuse box cover.
6. Connect the negative battery cable.

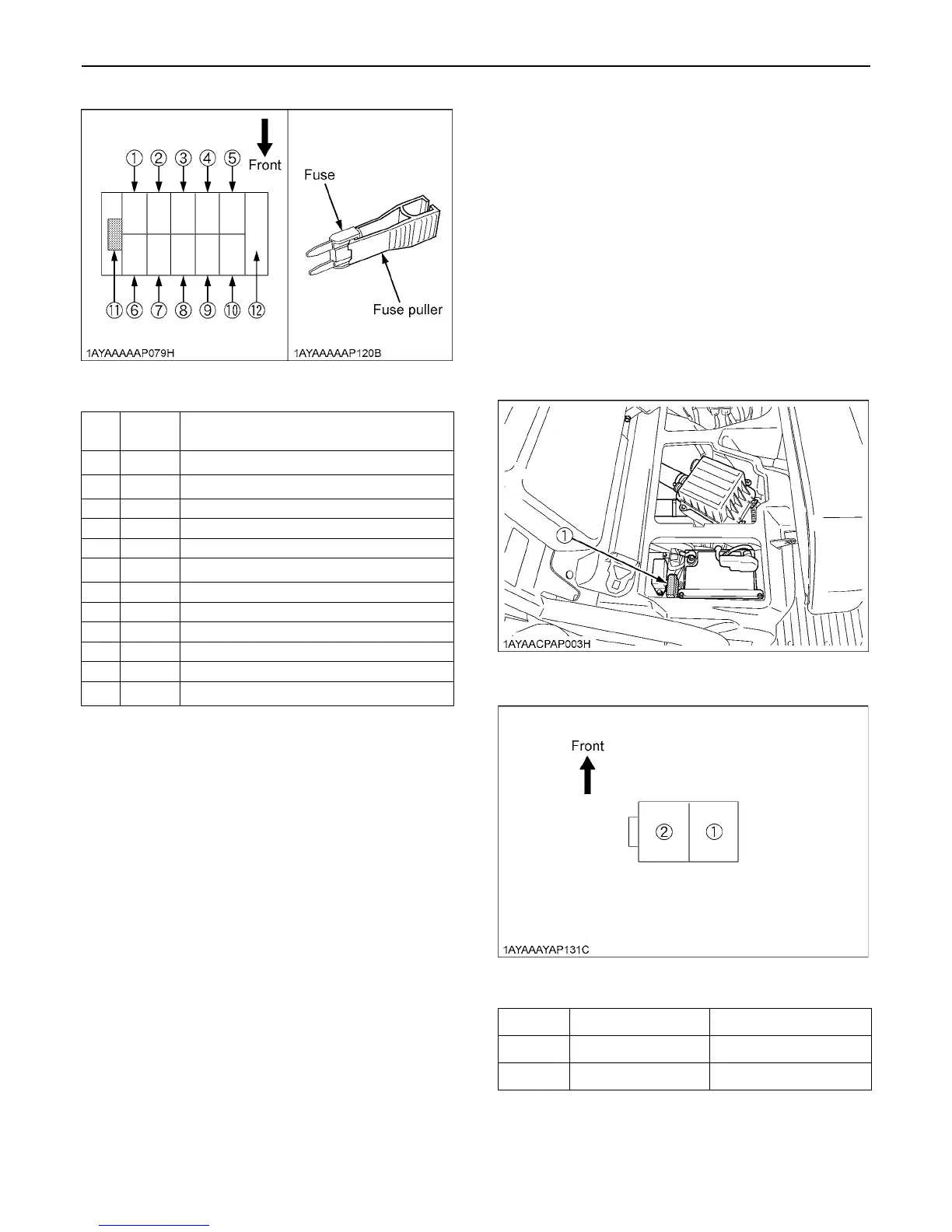

C Protected circuit
Fuse
No.
Capacity
(A)
Protected circuit (OLD)
1 15 Head lamp, Tail lamp, Panel
2 10 Eng. control, Fuel pump
35 Starter
4 --- ---
515 (Hazard)
6 10 Regulator, (Work light relay), (AUX (KEY ON))
75 Panel
8 10 12V DC output
9 15 Brake lamp, Horn
10 15 (Work light)
11 --- Fuse puller
12 5, 10, 15 Spare
(1) Slow-blow fuse box
Fuse No. Capacity (A) Protected circuit
1 Slow-blow fuse (30) Key switch
2 Slow-blow fuse (50) Regulator
