OTHER ADJUSTMENTS AND REPLACEMENTS82
BAuxiliary Electric
Max power is less than 110 W including the equipped light
55W.
If you need another auxiliary electric, contact your
KUBOTA dealer for details.
BSlow Blow Fuse
Slow blow fuse is provided to protect the electrical circuits.
If the slow blow fuse is blown, check the electrical circuits
for trouble and then replace with a new compatible slow
blow fuse.
[CAB]
[CANOPY]

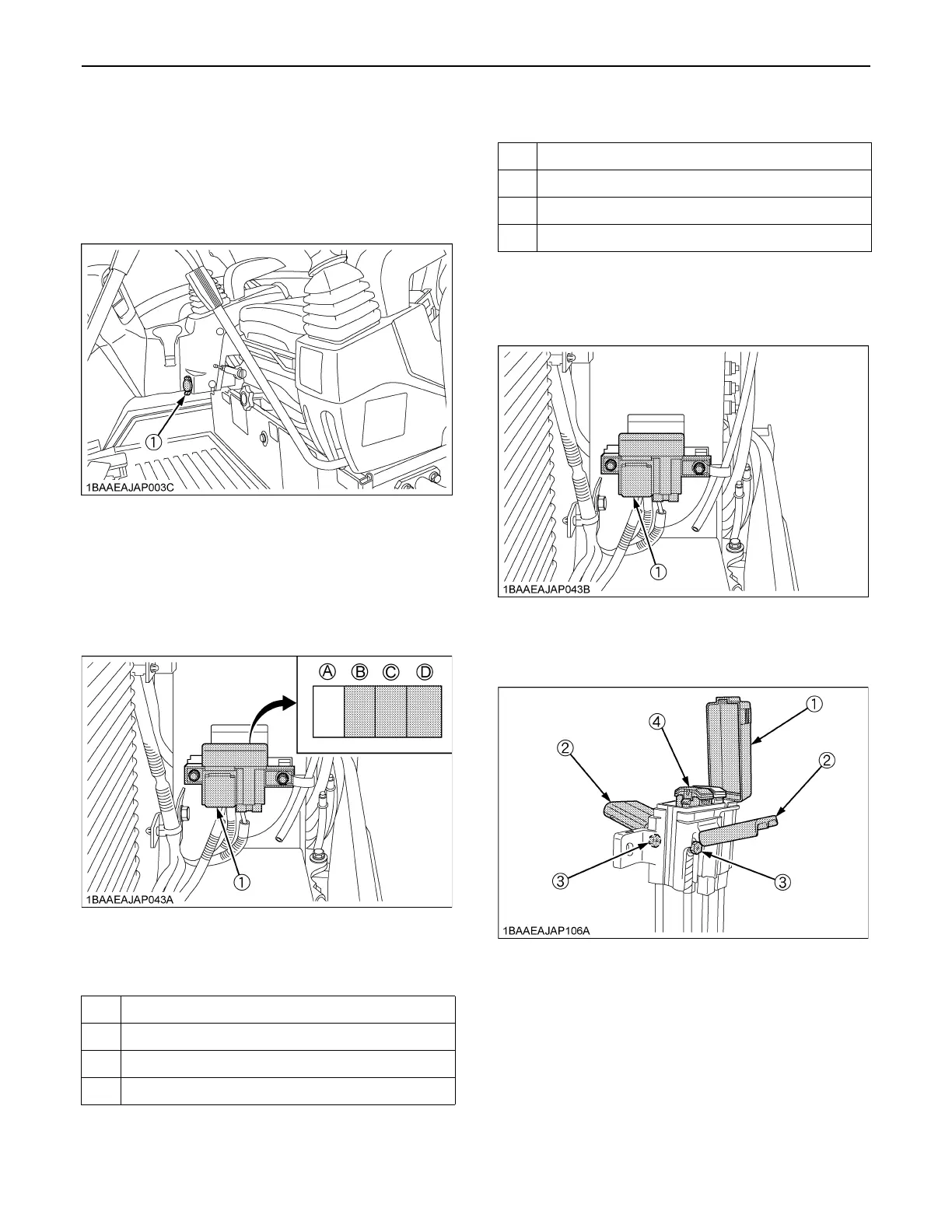

C Replacement procedure
[80 Amp. Slow-blow fuse]
1. Disconnect the negative cord of the battery.
2. Remove the slow blow fuse case.
3. Open the slow blow fuse case cap and covers, then
remove the bolts and draw out the slow blow fuse (B).
(1) Auxiliary Electric
(1) Slow blow fuse
(A)
(B) 80A Alternator
(C) 50A Main Power (1)
(D) 50A Main Power (2)
(A)
(B) 80A Alternator
(C) 50A Main Power
(D)
(1) Slow blow fuse case
(1) Slow blow fuse case cap
(2) Cover
(3) Bolt
(4) Slow blow fuse (B)
