REGULAR CHECKS AND MAINTENANCE WORK
To avoid personal injury or death:
A When operating, keep hands and body inside
of the ROPS/OPG (Top Guard Level I)
protective envelope.
A Do not touch the control levers and the pedals
from outside the cab during the engine
running.
EVERY 50 SERVICE HOURS
BDraining the Water from the Fuel Tank
To avoid personal injury or death:
A Before draining the water from the fuel tank, be
sure to stop the engine and remove the key.
A Do not smoke during inspection.
1. Open the drain plug.
BDraining Water Separator
[Checking and Draining]
Water and dirt contained in fuel will settle down in the
water separator. When such foreign substances are
deposited, set the water separator handle to the "OFF"
position. Loosen the retainer ring and remove the cup.
Then dump water in the cup.
[Cleaning]
1. Set the water separator handle to the "OFF" position.
2. Loosen and remove the cup proper, and clean its
inside with light oil.
3. Tighten up the cup proper.
A As water is collected, the red float goes up.
When the float has reached the specified line,
immediately drain the water separator.
A In reattaching the water separator, be careful to keep
off dust and dirt.
A Be sure to purge the fuel system before getting the
machine restarted.
(See "PURGING OF THE FUEL SYSTEM" in
"OTHER CHECKS AND REPLACEMENTS"
section.)

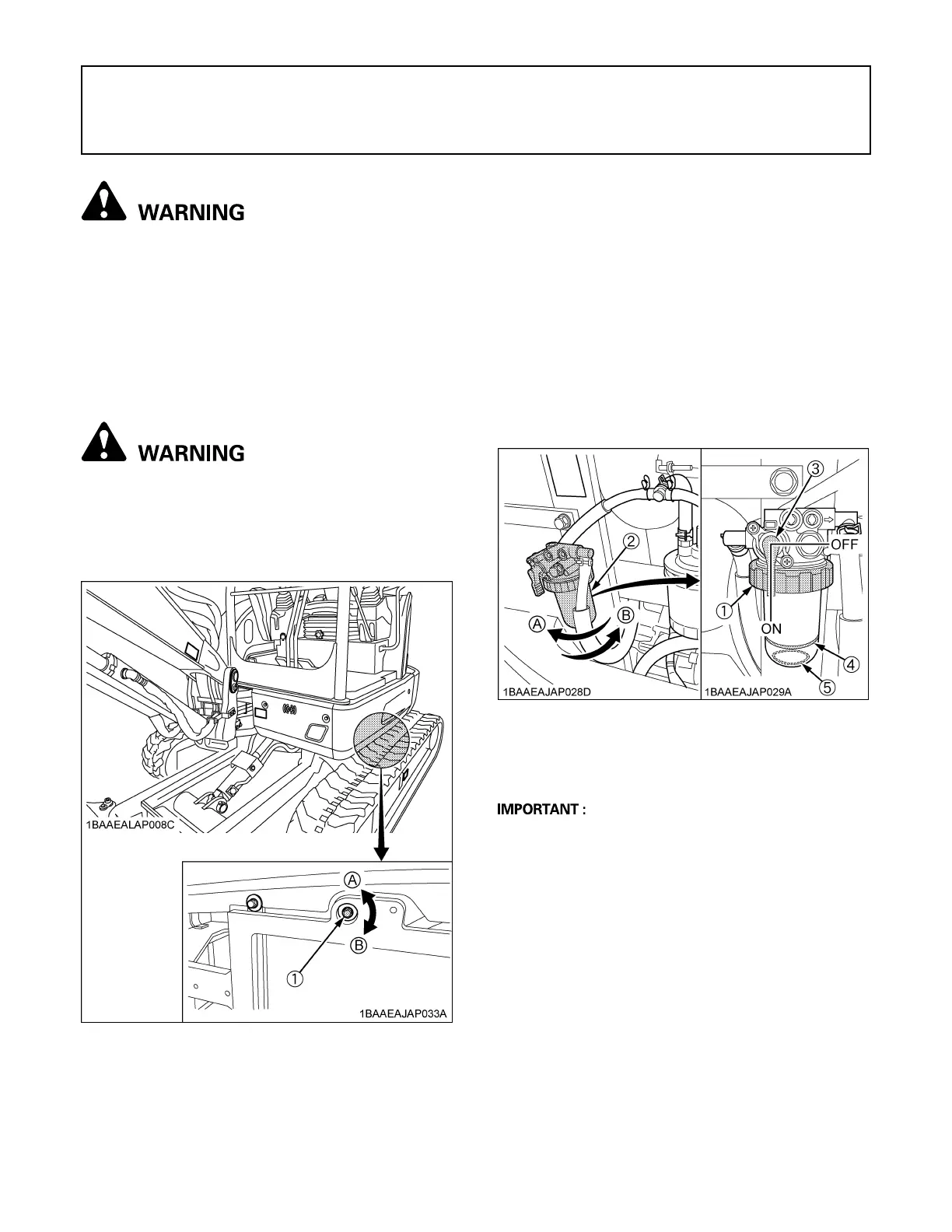

(1) Drain plug (A) Open
(B) Close
(1) Retainer ring
(2) Cup
(3) Water separator handle
(4) Line
(5) Float
(A) Loosen
(B) Tighten
