17
CHE
CKS BEFO
RE STAR
T
C

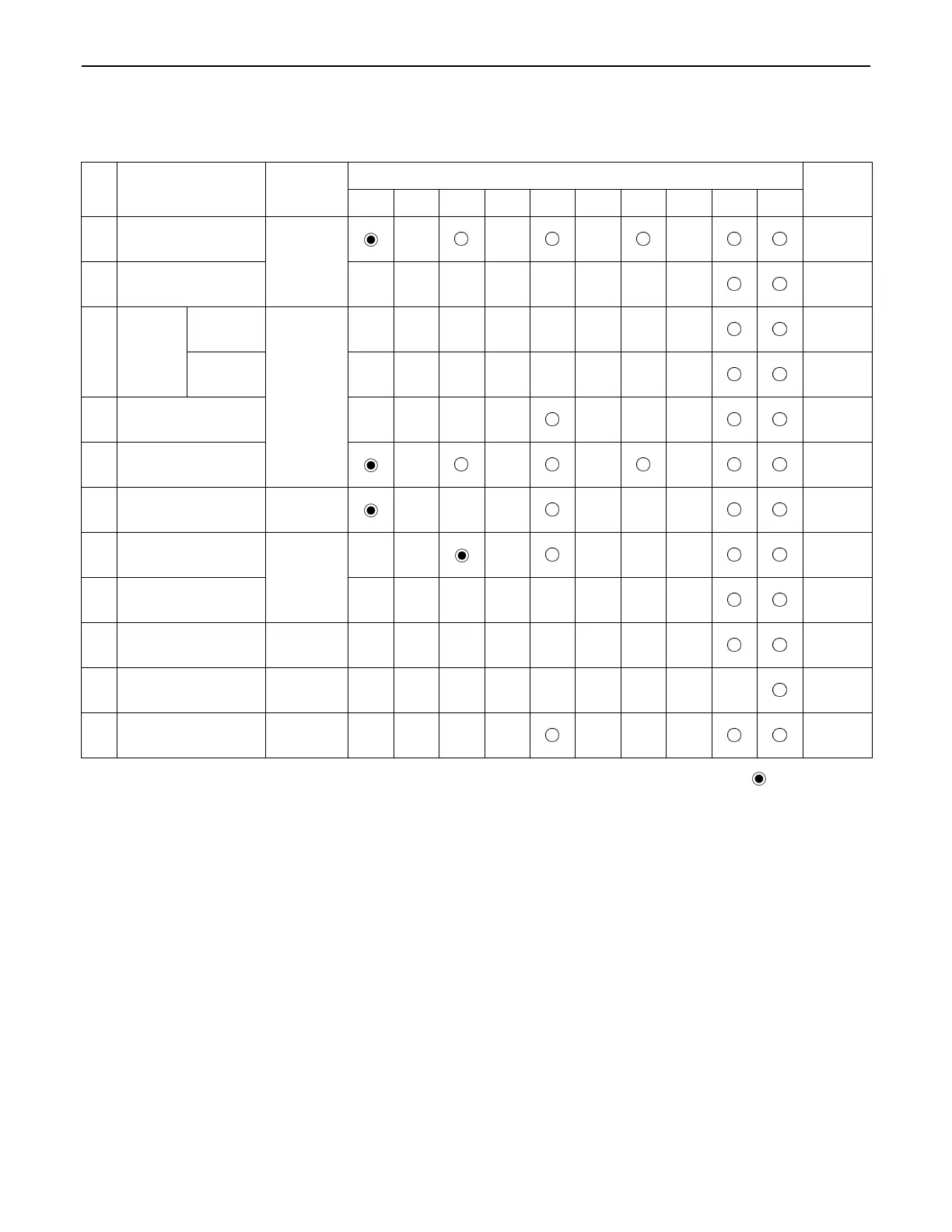

Service hour meter
When the hour meter reaches the hours circled in
the maintenance list below, a message appears. The message shows
up as follows.
No.
Check points
Measures
Hour meter indicator
Intervals
50
100
250
300
500
550
750
800
1000
2000
1
Engine oil (CF-4)
change
every
250 hrs
2
Hydraulic oil
every
1000 hrs
3
Air filter
element
Outer
element
replace
every
1000 hrs
Inner
element
every
1000 hrs
4
Fuel filter
every
500 hrs
5
Engine oil filter
every
250 hrs
6
Drive unit oil
change
every
500 hrs
7
Hydraulic return filter
element
replace
every
500 hrs
8
Hydraulic suction
filter element
every
1000 hrs
9
Pilot filter
replace
every
1000 hrs
10
Idlor, Track roller,
grease
-
every
2000 hrs
11
Breather filter
replace
every
500 hrs
First operation
38
40
Table of Contents
Table of Contents
5
Dealer Service
23
Safe Operation
23
Technical Data
25
Description of Machine Parts
26
Instrument Panel and Control Elements
27
Checks before Start
29
Daily Checks
29
Checking the Devices
29
Starter Switch
29
Display Selector Switch
30
LCD for Normal Operation
30
Fuel Gauge
30
Coolant Temperature Gauge
31
Engine Tachometer
32
Warning Lamp
33
LCD for Warning
33
Glow Indicator
33
Hour Meter
32
Information Switch
34
Setting the Clock
35
Reordering the Year/Month/Day and Changing the AM/PM System to the 24-Hour One
36
Log Record
37
Periodic Check
38
If All the Check Points Are Not Displayed at a Glance on a Single Screen
38
When the Check-Up Is Completed
40
Horn Switch
40
Light Switch
40
AUX Port Enable Switch
40
Auto Idle Control Switch
41
Throttle Potentiometer
41
Travel Speed Switch
41
Cab Type Machines
42
Wiper/Washer Switch
42
Interior Lamp
42
Opening/Closing of CAB Door
43
Opening/Closing of Front CAB Window
43
Opening/Closing of Side CAB Window
43
Emergency Hammer
43
Air Conditioner
44
Air Flow
44
Air Control Vent
44
Control Panel
45
Operation
45
Handling the Safety Devices
45
Pilot Control Lock Lever
45
Operation of the Engine
46
Starting the Engine
46
Drive Lever (Left)
46
Attachment Control Lever (Left)
46
Drive Lever (Right)
46
Attachment Control Lever (Right)
46
Starting the Engine under Cold Conditions
47
Starting with an Auxiliary Battery
48
Observe Following Guidelines When Starting with an Auxiliary Battery
48
Check Points after Starting the Engine
48
Stopping the Engine
49
Engine Stop Button
49
Precautions in Case of Overheat
49
Excavator Operation
50
Running-In of the New Excavator
50
Do Not Work with Full Engine Rpm's or Full Loads During the First 50 Working Hours
50
Oil Change in the Run-In Stage
50
Adjusting the Operator's Seat
50
Seat Belt
51
Starting
51
Pilot Control Lock Lever
51
Driving
52
Drive Levers (Right,Left)
53
Turns
53
Pivot Turn
53
Dozer Control Lever
53
Spin Turn
54
Up and Downhill Driving
55
Parking on a Slope
55
Operation of the Dozer
55
Two Pattern Selection System (Tpss)
56
Pattern Change
56
Operation of the Boom
57
Operation of the Arm
57
Operation of the Bucket
58
Unit Swing and Boom Swing Operation
58
Unit Swing Operation
58
Boom Swing Operation
58
Auxiliary Port Operation
59
Selecting the Action Modes
59
AUX Port Handling Procedure
60
Setting the Maximum Flow Volume
62
How to Release Pressure Trapped in the Hydraulic System
67
1-Way or 2-Way CIRCUIT SELECTION VALVE OPERATION
68
Auto Idle (Ai) Operation
69
Important Information on Excavator Operation
70
Transporting the Excavator on a Vehicle
71
Towing the Machine
72
Lifting of the Excavator
73
Maintenance
75
Maintenance Intervals
75
Opening and Closing of Covers
78
Opening/Closing of the Engine Hood
78
Opening/Closing of the Side Cover
78
Where to Store the Tool
79
Cup Holder
79
Where to Store the Grease Gun
79
Where to Keep Operator's Manual
79
Daily Checks
80
Checking Coolant Level
80
Checking Fuel Level
80
Checking Engine Oil Level
81
Checking Hydraulic Oil Level
81
Checking V-Belt
82
Checking Radiator and Oil Cooler
82
Checking Washer Liquid
83
Checking and Cleaning Engine and Electrical Wiring
83
Washing Whole Machine
83
Greasing Front Attachments (Without Bucket Pin and Boom Swing Fulcrum)
83
Greasing Bucket Pin
84
Greasing Boom Swing Fulcrum
84
Regular Checks and Maintenance Work
85
Every 50 Service Hours
85
Draining the Water from the Fuel Tank
85
Draining Water Separator
85
Checking Battery Condition
86
Greasing Swing Bearing Teeth
87
Every 200 Service Hours
88
Adjusting V-Belt Tension
88
Checking Radiator Hoses and Clamps
89
Grease Swing Ball Bearing
89
Inspection and Cleaning Air Filter Element
89
Air Filter Maintenance
90
Checking Fuel Line and Intake Air Line
90
Air Conditioner
91
Cleaning Air Filter
91
Checking Air-Conditioner Condenser
91
Every 250 Service Hours
92
Changing Engine Oil (First Engine Oil Change after 50 Service Hours)
92
Replacing Engine Oil Filter Cartridge
92
Hours)
92
Every 500 Service Hours
93
Drive Unit Oil Change(First Oil Change of the 50 Hours)
93
Replacing Fuel Filter Cartridge
93
Replacing Hydraulic Return Filter Element (First Replacement after 250 Service Hours)
94
Replacing Breather Filter
94
Replacing Fan Belt
94
Every 1000 Service Hours
94
Replacing the Hydraulic Pilot Filter Element
94
Hydraulic Oil Change (Including Replacing of the Suction Filter in the Hydraulic Tank)
95
Hydraulic Oil Check with Hydraulic Hammers
96
Every 1000 Service Hours or Once a Year
96
Replacing Air Filter Element
96
Every 1500 Service Hours
96
Checking Fuel Injection Nozzle (Injection Pressure)
96
Every 2000 Service Hours
96
Changing Front Idler and Track Roller Oil
96
Checking the Alternator and Starter Motor
96
Every 3000 Service Hours
96
Checking Injection Pump
96
Annual Servicing
97
Electrical Wiring and Fuses
97
Checking the Electrical Circuit
97
Checking Air-Conditioner Pipes and Hoses
97
Biennial Servicing
97
Replacing Air-Conditioner Pipes and Hoses
97
Replacement of Radiator Hoses and Hose Clamps
97
Changing Radiator Coolant
97
Replacing Fuel Hoses and Hose Clamps
98
Replacing Intake Air Line
99
Servicing as Required
99
Checking Amount of Refrigerant (Gas)
99
Other Adjustments and Replacements
100
Purging of the Fuel System
100
Adjustment of Tracks
100
Special Information When Using Rubber Tracks
101
Changing the Bucket
102
Fuses
102
Replacing Fuses
102
Fuse Capacities and Circuits
103
Auxiliary Electric
104
Slow Blow Fuse
104
Troubleshooting
105
Operation under Cold Weather Conditions
107
Preparation for Operation in Cold Weather
107
Procedure after Completing Work
107
Long Storage
108
Recommended Oils
110
Appendices
112
Main Dimensions
112
Lifting Capacity
113
List of Screens
116
List of Normal Screens
116
Navigation List of Screens
117
