Air filter cleaning
The air cleaner accumulates dust and must be
cleaned periodically. If the ATV is ridden in dusty
areas, the air cleaner must be cleaned at more
frequent intervals than specified in the
Maintenance Schedule. If the ATV is submerged
in water, the air cleaner should be checked and
water should be drained from the air cleaner
housing before starting the engine.
To clean the air cleaner:
1. Remove the seat. (See page 29.)
2. Unlatch the four retainer clips and remove the
air cleaner housing cover.
3. Unscrew the clamp and remove the air
cleaner assembly from the air cleaner
housing.

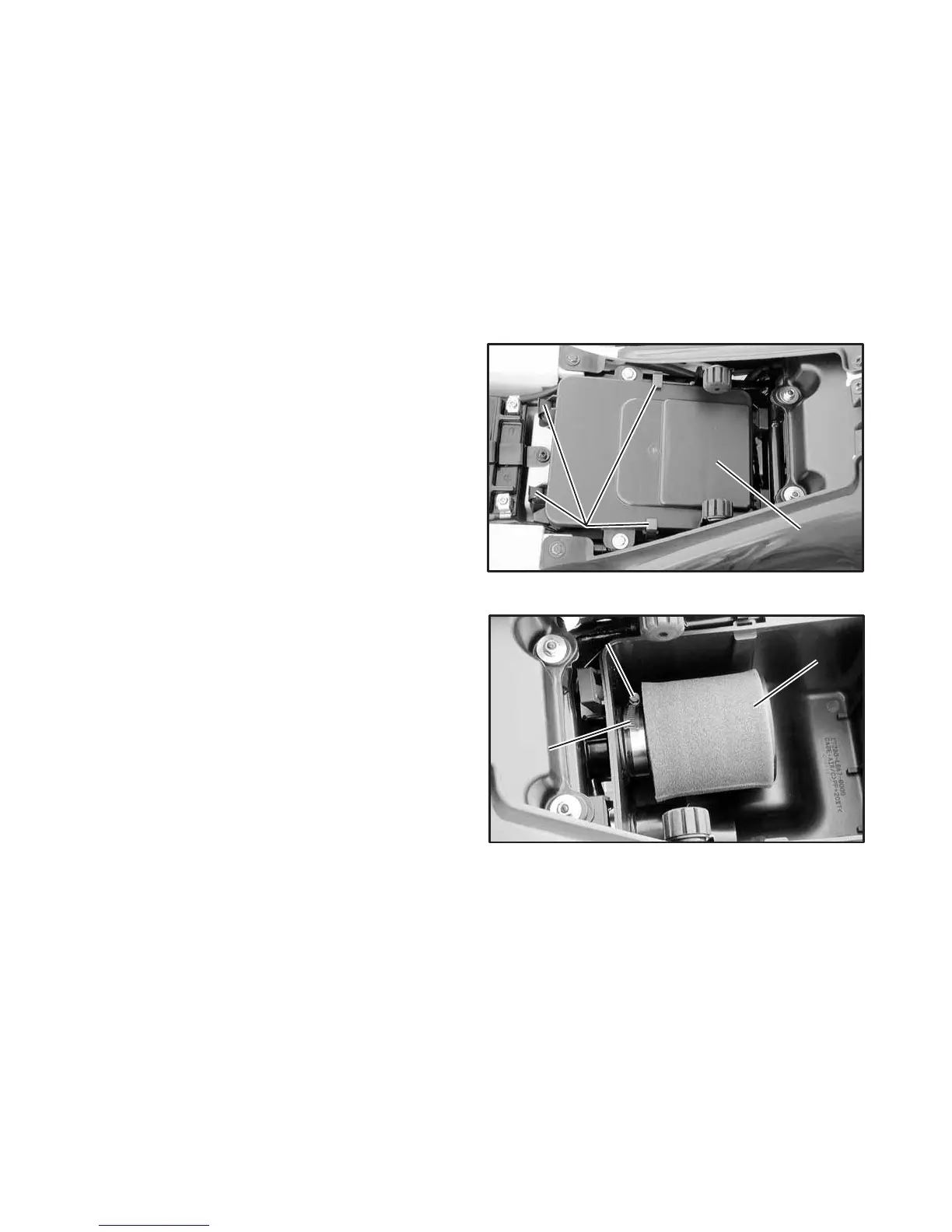

(1)
(2)
(1) Retainer clips (2) Air cleaner housing cover
(1)
(3)
(2)
(1) Screw (2) Clamp (3) Air cleaner assembly
