Fuel valve
The fuel valve supplies fuel from the fuel tank to
the carburetor.
The fuel valve has three positions.
OFF:
ON :
RES:
27
With the lever and " " mark in this
position fuel will not flow. Always turn the
lever to this position when the engine is
not running.
With the lever in this position,
fuel flows to the carburetor. Normal riding
is done with the lever in this position.
This indicates reserve. If you run out of
fuel while riding, turn the lever
to this position. THEN FILL THE FUEL
TANK AT THE FIRST OPPORTUNITY.
After refueling, return the fuel valve lever
to the "ON" position.
""mark
""mark
RES
OFF
ON
NOTE:
After refueling, do not operate the ATV with the
fuel valve in the RES position. If you run out of
fuel, there will be no reserve supply.

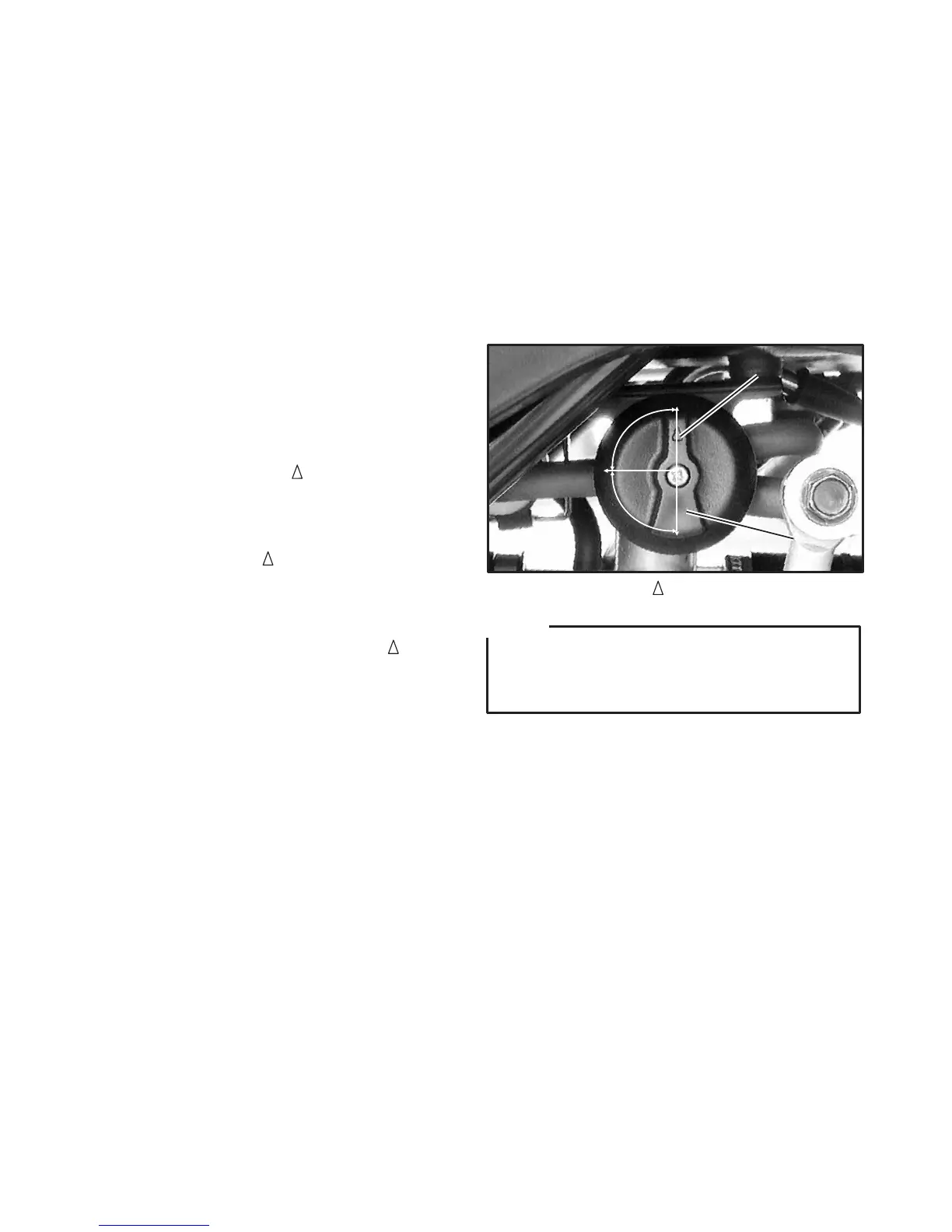

(1) Fuel lever (2) " " mark
(1)
(2)
