8-16
8.5. FRONT GEAR BOX OIL
Change the oil in the front gear box when specified by the
Maintenance Schedule. Change the oil with the front gear box
warm, and the ATV on level ground to assure complete and
rapid draining.
Front gear box oil replacement
1. To drain the oil, first place an oil drain pan under the oil
drain plug/washer (1).
2. Remove the oil filler bolt (2).

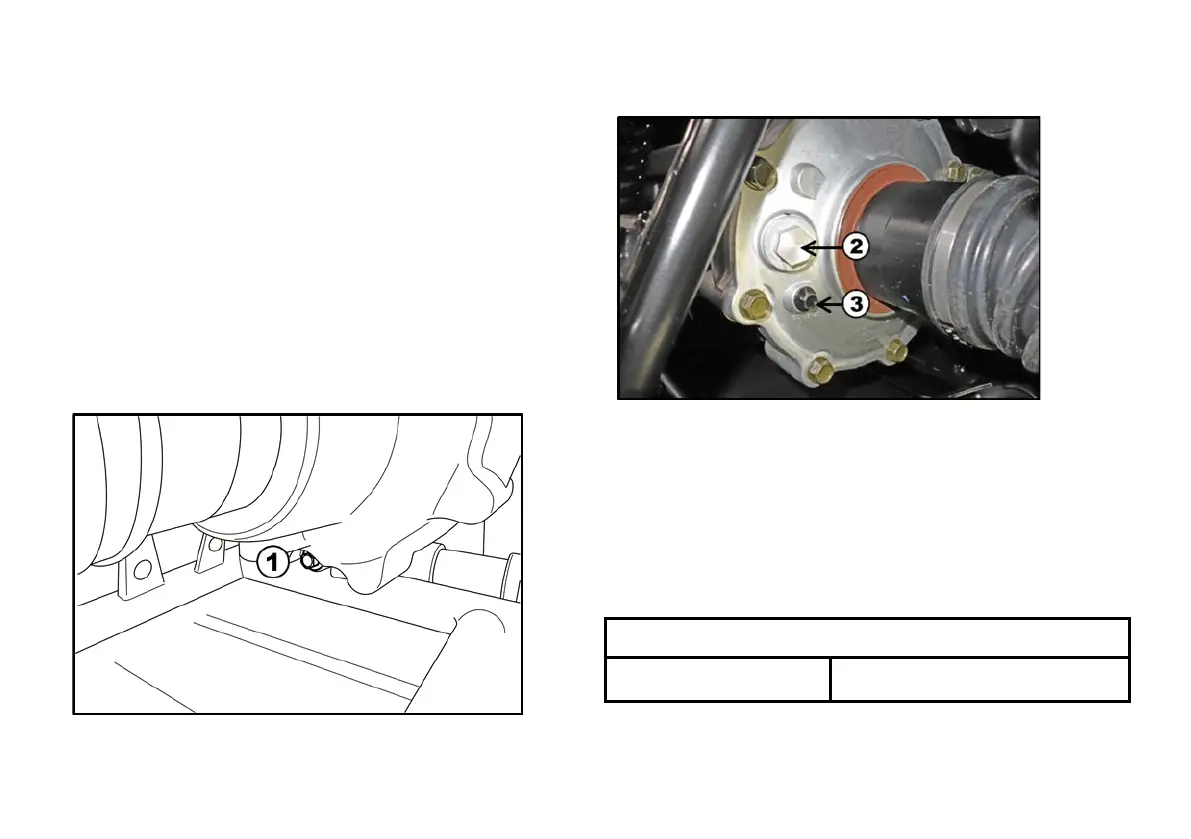

(1) Oil drain plug/washer
(2) Oil filler bolt
(3) Oil level check bolt
3. Remove the drain plug.
4. After the oil has completely drained, reinstall the drain
plug.
Tightening Torque
Drain plug 12 N-m (1.2 kgf-m, 9 lbf-ft)
To Next Page
