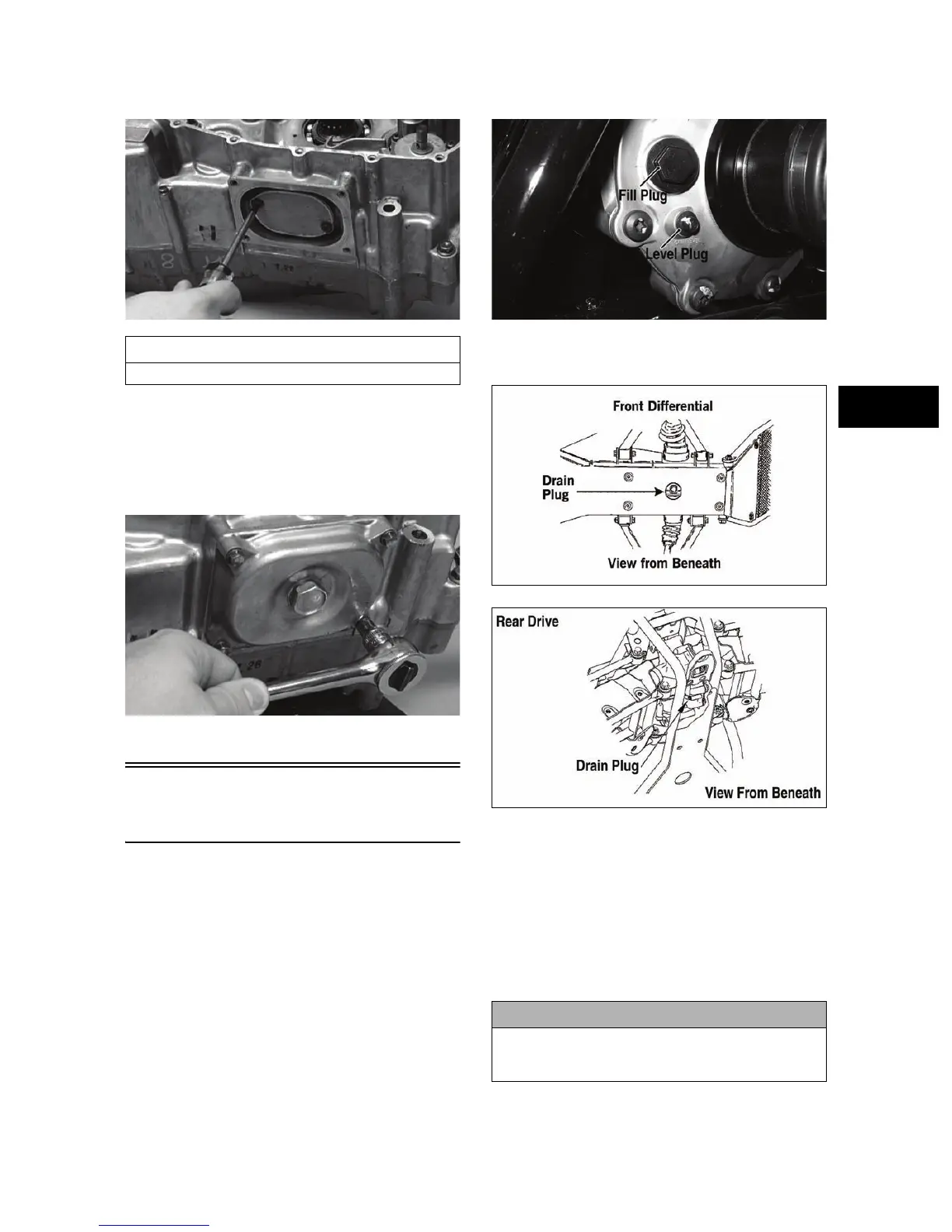

4. Place the oil strainer into position beneath the
crankcase and secure with the cap screws. Tighten
securely.
5. Place the strainer cap into position on the strainer
making sure the O-ring is properly installed; then
secure with the cap screws. Tighten securely.
CC091D
6. Install the belly panel.
Front Differential/Rear
Drive Lubricant
When changing the lubricant, use approved SAE
80W-90 hypoid gear lube.
To check lubricant, remove the rear drive filler plug;
the lubricant level should be 1 in. below the threads of
the plug. If low, add SAE approved 80W-90 hypoid
gear lubricant as necessary.
To change the lubricant, use the following procedure.
1. Place the ATV on level ground.
2. Remove each oil fill plug.
KC0077A
3. Drain the oil into a drain pan by removing the
drain plug from each.
ATV0082A
737-651B
4. After all the oil has been drained, install the drain
plugs and tighten to 45 in.-lb.
5. Pour the appropriate amount of approved SAE
80W-90 hypoid gear lubricant into the filler hole.
6. Install the fill plugs.
NOTE: If the differential/rear drive oil is contami-
nated with water, inspect the drain plug, filler plug,
and/or bladder.
AT THIS POINT
To check/service oil strainer, see Section 3.
! CAUTION
Water entering the outer end of the axle will not be
able to enter the rear drive unless the seals are dam-
aged.
