15. IGNITION SYSTEM
15-4
PEOPL E 12 5/150

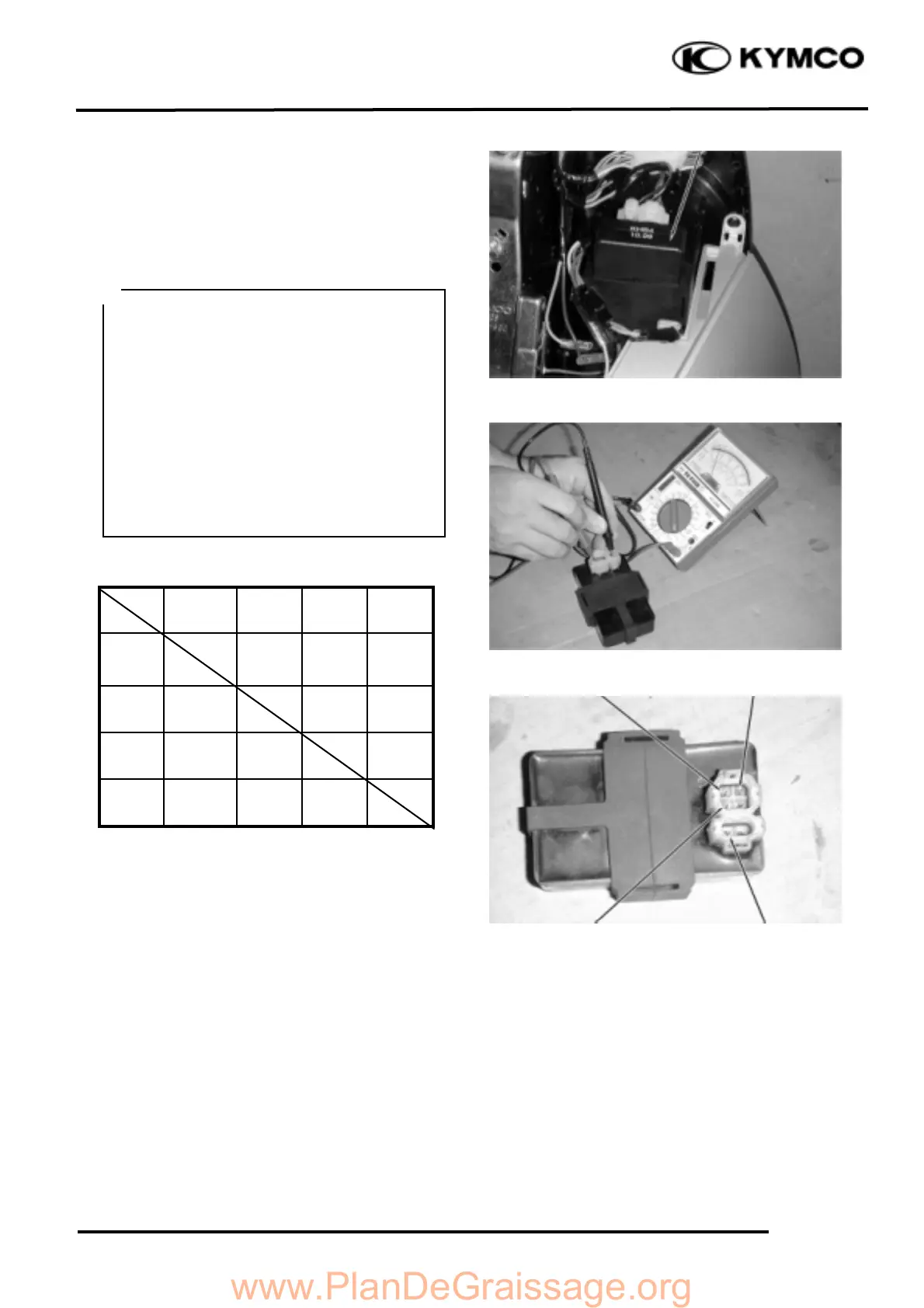

CDI UNIT INSPECTION
Remove the front cover screws.
Disconnect the CDI coupler and remove the
CDI unit.
Measure the resistance between the terminals
using the electric tester..
.
Unit: KW
Probe⊕
(-)Probe
Black/
Blue
Black/
Yellow
Blue/
Yellow
Green
Black/
Blue
150~28
0
20~30
∞
Black/
Yellow
75~100
50~70
∞
Blue/
Yellow
7~10
50~70
∞
Green
∞
∞
∞
AC 110V
Black/Yellow
• Due to the semiconductor in circuit, it is
necessary to use a specified tester for
accurate testing. Use of an improper
tester in an improper range may give
false readings.
• Use a Sanwa Electric Tester or Kowa
Electric Tester.
• In this table, “Needle swings then
returns” indicates that there is a charging
current applied to a condenser. The needle
will then remain at “∞ ” unless the
condenser is discharged.
＊
Green
CDI Unit
Blue/Yellow
Black/Blue
