47
MAINTENANCE

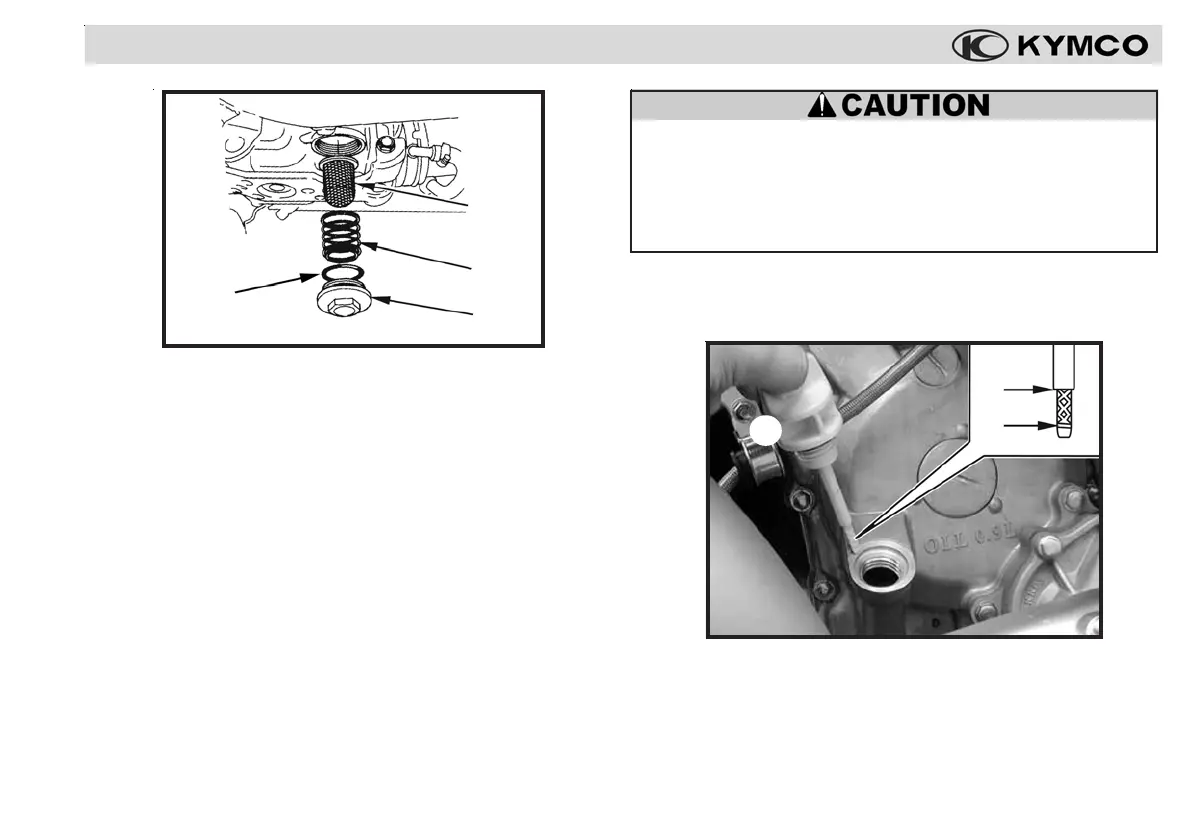

3. The spring 3 and the oil strainer screen 4 will come out
when the cap 2 is removed. Let the engine oil drain out.
4. Clean the oil strainer screen.
5. Make sure the oil strainer screen, the seal on the screen,
and the drain plug O-ring 5 are in good condition.
6. Install the oil strainer screen, the screen seal, the drain
plug O-ring and the oil strainer screen cap. Torque the cap
to the specified torque.
33
33
3
55
55
5
44
44
4
22
22
2
Engine oil capacity: 0.95 qt (0.8 L)
Engine oil viscosity: SAE 15W-40
Oil strainer screen cap torque:11 lb-ft (15 N.m)
7. Add the specified engine oil through the oil filler/dipstick
hole (amount is after draining).
8. Replace the oil filler/dipstick and tighten it securely.
9. Start the engine and let it idle for 2 - 3 minutes.
Do not overfill the engine with oil. Overfilling the en-
gine can cause oil leaks and/or oil contamination of
the air filter element. Always make sure the oil level is
above the "L" mark but not higher than the "F" mark
on the dipstick.
10. Stop the engine and recheck the oil level. Make sure the
oil level is at the upper mark âFâ on the dip stick 1 when
the scooter is parked upright on level ground. Make sure
there are no oil leaks and reinstall the dip stick.
F
L
11
11
1
