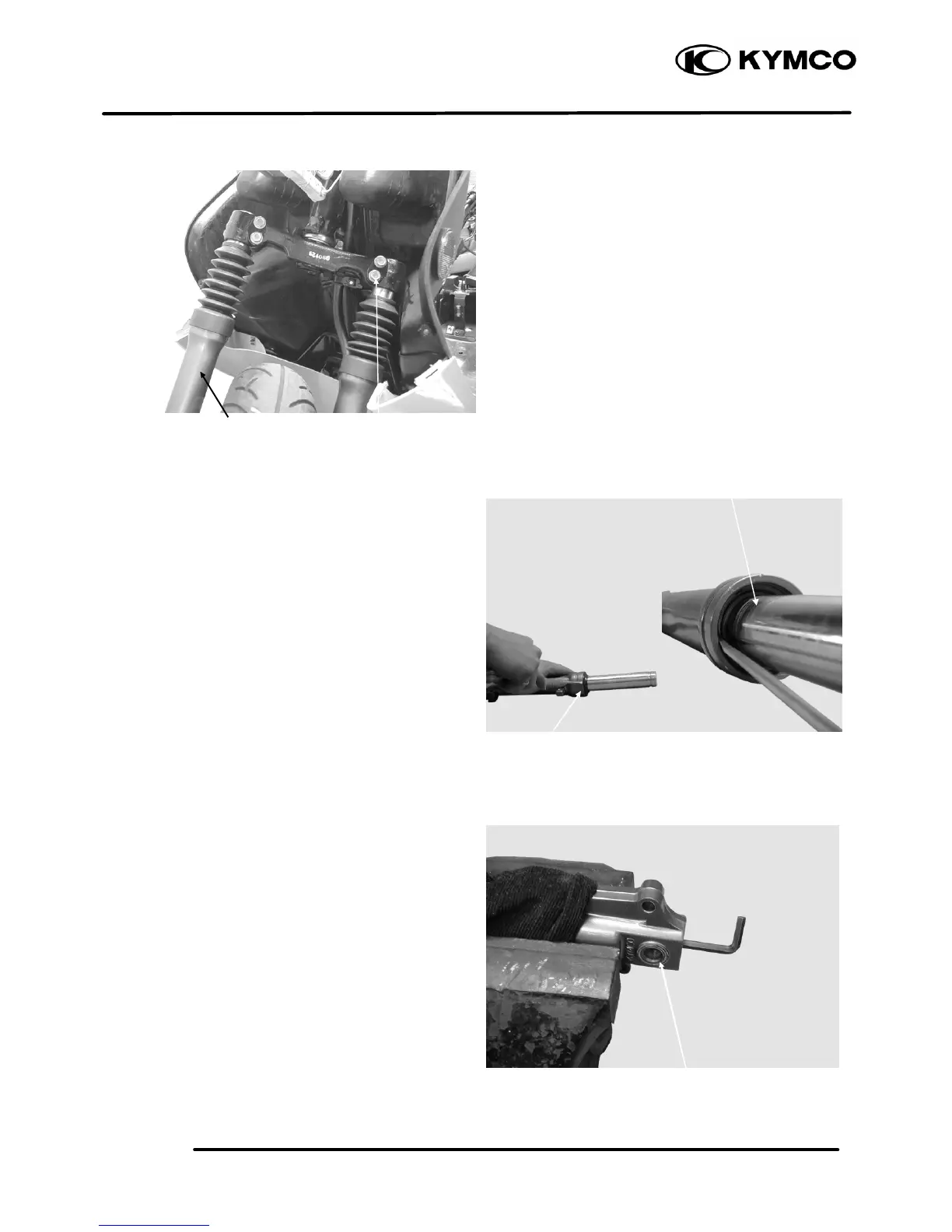

LEFT FRONT SHOCK ABSORBER
DISASSEMBLY
Remove the dust boot.
Remove the circlip.
Use a vise to hold the front shock absorber
and remove the shock absorber tube, hex bolt
and copper washer from the front shock
absorber.
Use a vise to hold the front shock absorber tube
and remove the damper from the shock absorber
tube.
When holding the shock absorber tube,
place a shop towel under it and do not
apply too much force.
*
Front Shock
Absorber
Circlip
Front Shock Absorber
Mount Bolt
Dust Boot
