15. ELECTRICAL EQUIPMENT
15
-
11
ZX / SCOUT

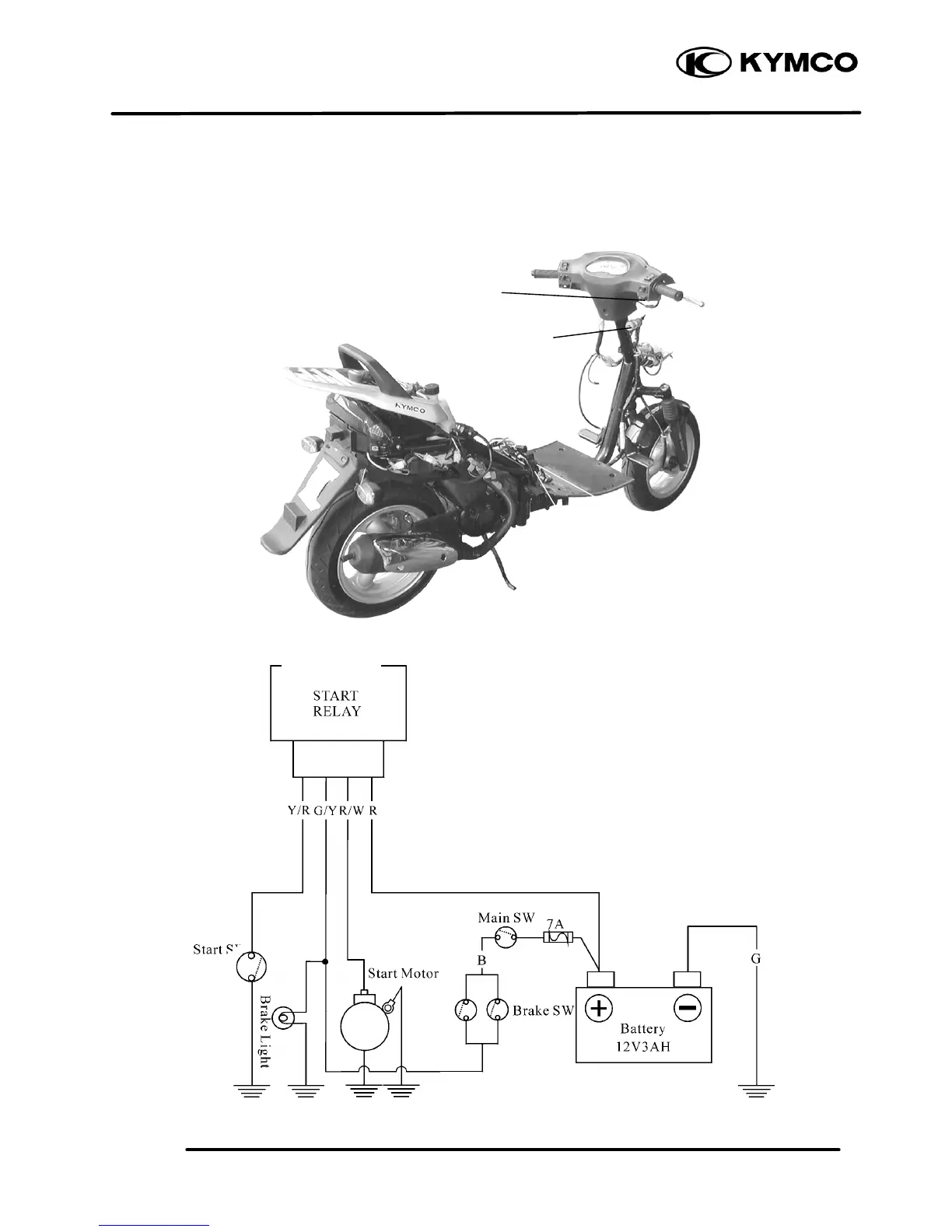

Starting System
STARTER RELAY
INSPECTION
Remove the battery cover.
Disconnect the starter relay coupler and then
Starter Button
Ignition Switch
Starter Relay
Battery
Starter Button
Starter Button
Starter Morter
Starter
Relay
