Remove the two exhaust muffler joint lock
nuts.
Remove the two exhaust muffler lock bolts.
Remove the exhaust muffler.

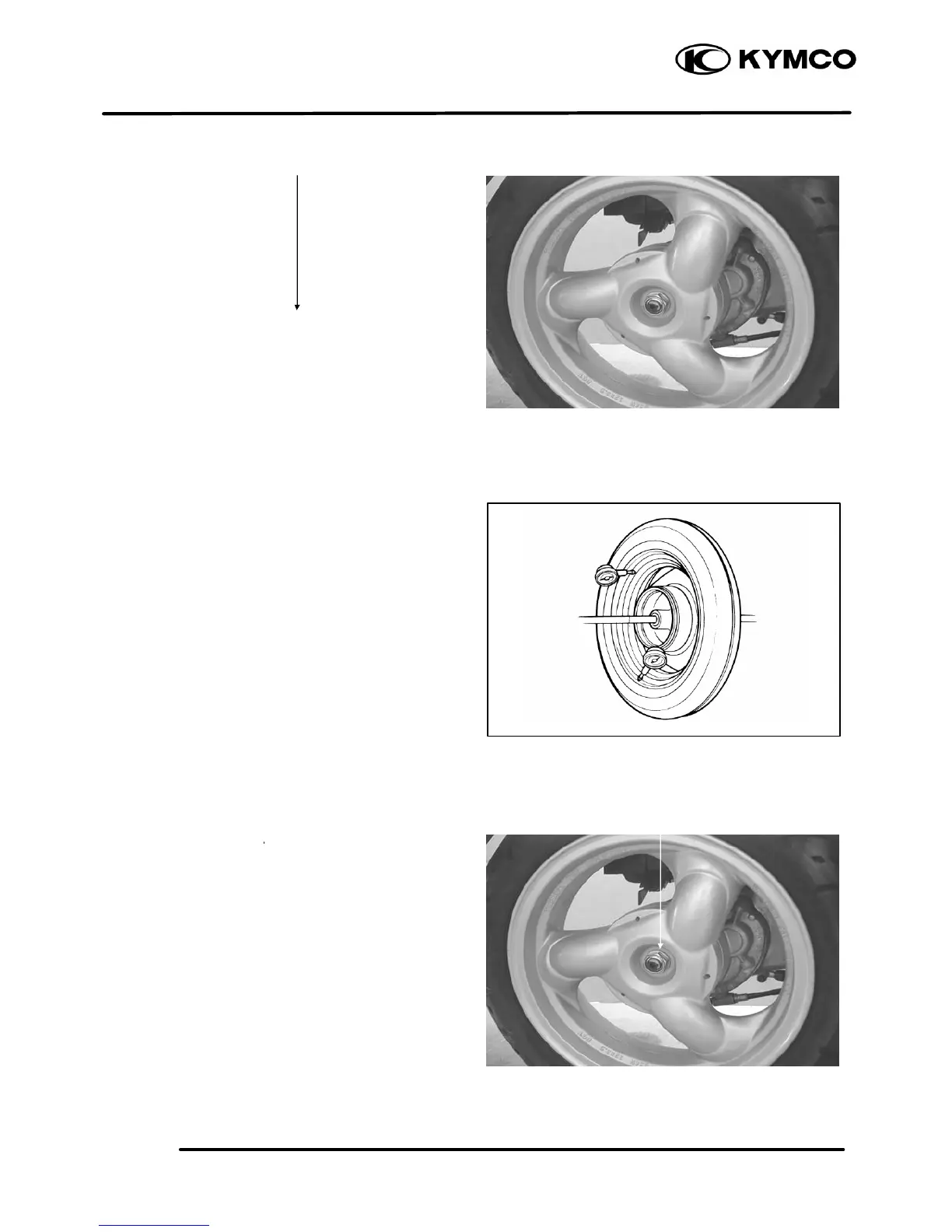

Remove the rear axle nut to remove the rear
wheel.
INSPECTION
Measure the rear wheel rim runout.
Service Limits:
Radial : 2.0mm replace if over
Axial : 2.0mm replace if over
INSTALLATION
Install the rear wheel and apply SAE30#
engine oil to the axle threads. Then, tighten the
rear axle nut.
Torque values:
Rear axle nut: 11.0 13.0kg-m
REAR BRAKE
Remove the rear wheel. (
ð
14-3)
