14. REAR WHEEL/REAR BRAKE/REAR
SHOCK ABSORBER
14
-
4
ZX / SCOUT

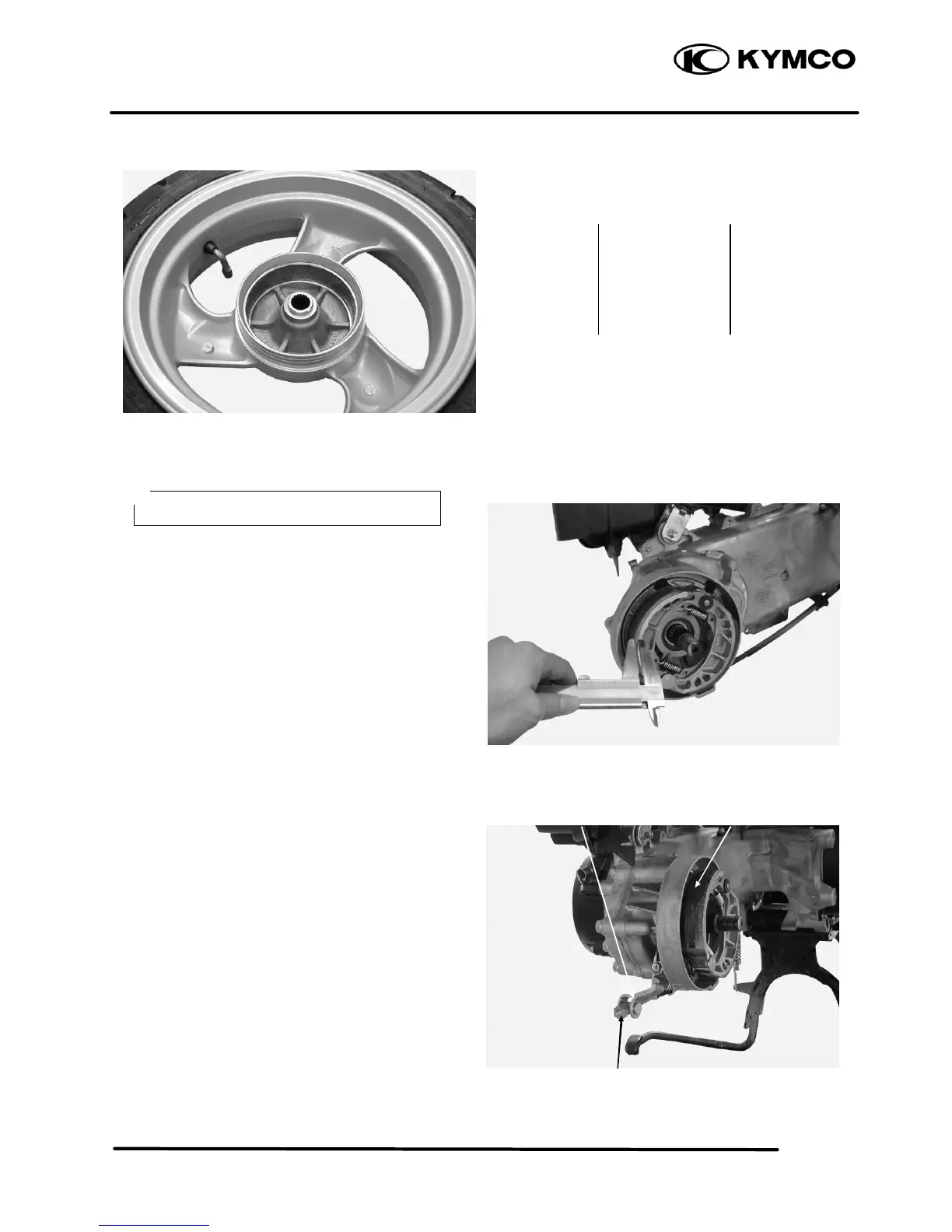

Inspect the rear brake drum.
Measure the rear brake drum I.D.
Service Limit: 95.5mm replace if over
BRAKE LINING INSPECTION
Measure the brake lining thickness.
Service Limit: 2.0mm replace if below
REAR BRAKE DISASSEMBLY
Remove the rear brake adjusting nut and
disconnect the rear brake cable.
Remove the rear brake shoes.
Remove the brake arm bolt to remove the brake
arm, wear indicator plate and felt seal.
Remove the brake cam.
Adjusting Nut
Brake Arm
Brake Shoes
Keep oil or grease off the brake linings.
*
