8. KICK STARTER/DRIVE PULLEY/
CLUTCH/DRIVEN PULLEY
8
-
6
ZX / SCOUT

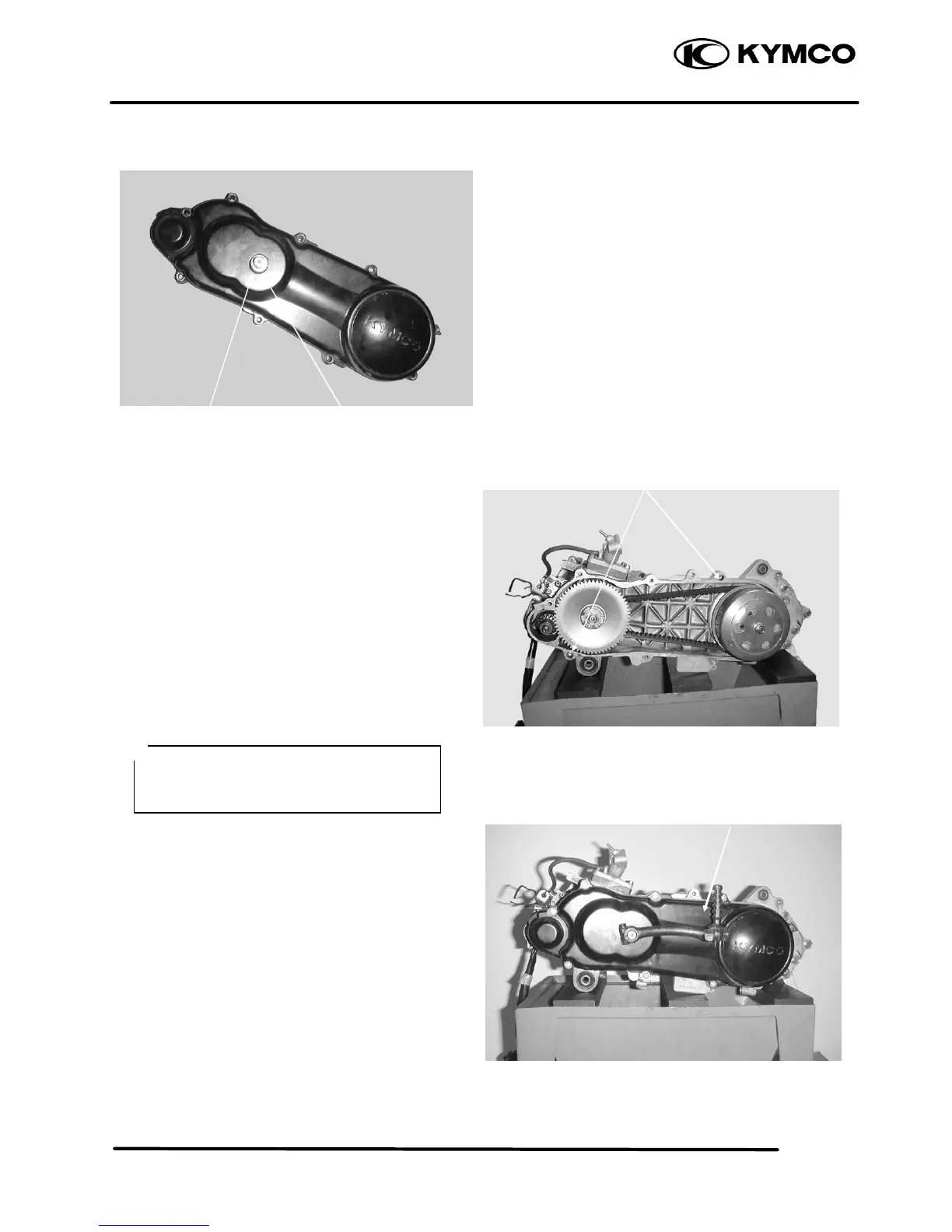

LEFT CRANKCASE COVER
INSTALLATION
First install the dowel pins and then the seal
rubber.
Install the left crankcase cover and tighten the
nine bolts diagonally.
Connect the drive belt cooling air tube and
install the circlip.
DRIVE BELT
Remove the left crankcase cover.
INSPECTION
Check the drive belt for cracks, separation or
abnormal or excessive wear.
Left Crankcase Cover
Dowel Pins
Washer
Circlip
For drum brake, note the location of the
brake cable clamp and install the rear
brake cable in place with the clamp.
*
