3NC/3NB/3NK
2-1-1
2-1 Mechanical Construction
2-1-1 Bridge unit section

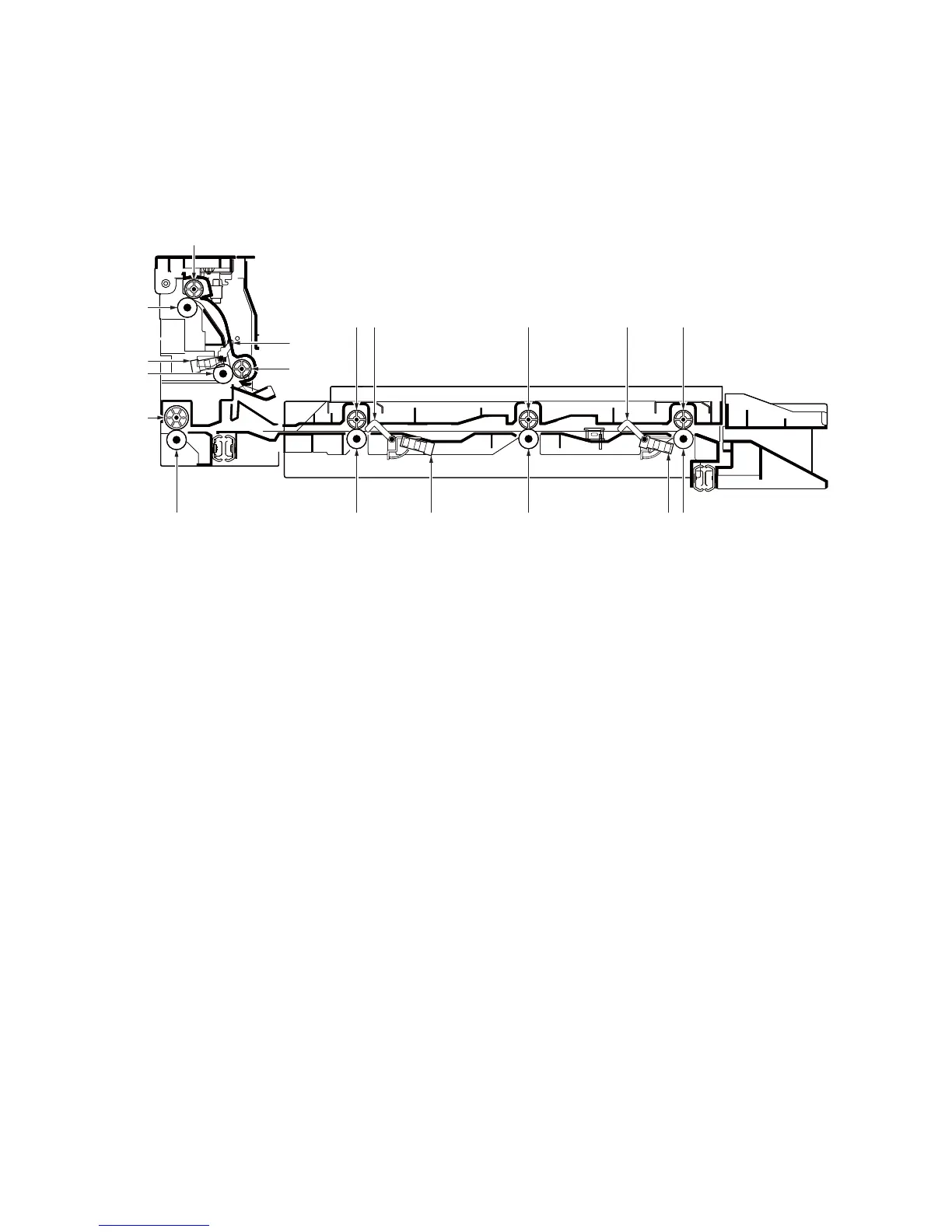

The bridge unit section consists of the parts shown in figure below and discharges paper conveyed from the
machine to the document finisher or DF sub tray.
Figure 2-1-1 Bridge unit section
5
11134
6
5
2 2 2
7
8
9
10
11
13
12
1. Paper conveying roller
2. Paper conveying pulley
3. Bridge conveying sensor1 (BRCS1)
4. Bridge conveying sensor2 (BRCS2)
5. Actuator(Bridge conveying sensor)
6. Eject roller 1
7. Eject pulley 1
8. Feedshift roller
9. Feedshift pulley
10. Bridge eject sensor (BRES)
11. Actuator(Bridge eject sensor)
12. Eject roller 2
13. Eject pulley 2
