Kyocera AK-730 - Bridge PWB

3NC/3NB/3NK
2-3-6
2-3-2 Bridge PWB

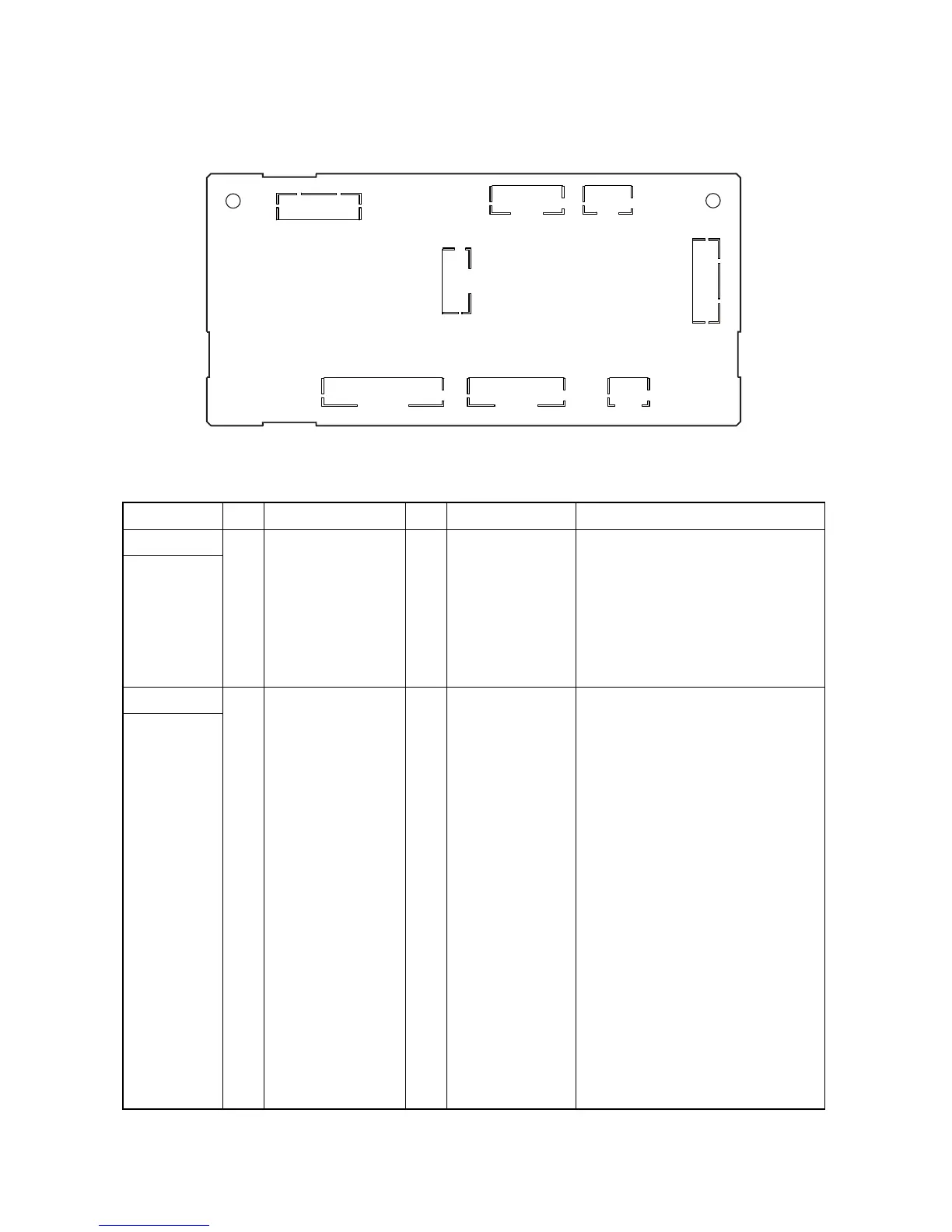

Figure 2-3-2 Bridge PWB silk-screen diagram
Connector Pin Signal I/O Voltage Description
YC1 1 +24V I 24V DC 24 V DC power input from machine
Connected to
the machine
2 +24V I 24V DC 24 V DC power input from machine
3 GND - - Ground
4 GND - - Ground
5 +5V I 5V DC 5 V DC power input from machine
6 GND - - Ground
YC3
1 BRIDGE_SENS 1 O 0/5V DC BRCS1: On/Off
Connected to
the machine
2 BRIDGE OPEN O 0/5V DC BRCUSW: On/Off
3 BRIDGE_SENS 2 O 0/5V DC BRCS2: On/Off
4 BRIDGE1 DIR I 0/5V DC BRCM1 control signal
5 BRIDGE1 PD I 0/5V DC BRCM1 control signal
6 BRIDGE1 CLK I 0/5V DC(pulse) BRCM1 clock signal
7 BRIDGE1 MODE I 0/5V DC BRCM1 mode signal
8 BRIDGE1 REM I 0/5V DC BRCM1: On/Off
9 BRIDGE2 DIR I 0/5V DC BRCM2 control signal
10 BRIDGE2 PD I 0/5V DC BRCM2 control signal
11 BRIDGE2 CLK I 0/5V DC(pulse) BRCM2 clock signal
12 BRIDGE2 MODE I 0/5V DC BRCM2 mode signal
13 BRIDGE2 REM I 0/5V DC BRCM2: On/Off
13
1
10
1
13
14
17
1
8
1
6
1
8
YC3 YC2
YC1
YC7 YC6 YC8
YC5
YC4
