Kyocera Ecosys FS-1320D Technical Reference Manual

Chapter 5 Barcodes
5-12
Printing a Two-dimensional Barcode
XBAR, XBCP, XBUF, and ENDB commands support two-dimensional barcode printing.
Each command does the following to put data together for printing a barcode.
Functions of XBCP
The mode parameter in XBCP command format identifies the various functions as listed
below. These commands are detailed in the PRESCRIBE Commands Command
Reference.
XBAR Prints a two-dimensional barcode from the given data string. Must
be followed by an ENDB command.
XBCP Specifies various options for the barcode to be printed using XBAR
depending on the mode following the command (0 through 19). See
Macro PDF417 on page 14.
XBUF Defines a buffer name for a data input for XBAR command.
ENDB Terminates a XBAR command sequence.
XBCP mode Meaning
XBCP 0 Reset
XBCP 1 Narrowest element width
XBCP 2 Error correction (by percentage)
XBCP 3 Error correction (by predetermined level)
XBCP 4 Number of rows
XBCP 5 Number of columns
XBCP 6 Aspect ratio of height and width
XBCP 7 Bar height by a ratio of element width
XBCP 8 Number of rows and columns (XBCP 4 and 5)
XBCP 9 Truncation
XBCP 10 through 19 These modes give additional control options used to support Macro
PDF417 barcodes. See more details in section Macro PDF417.

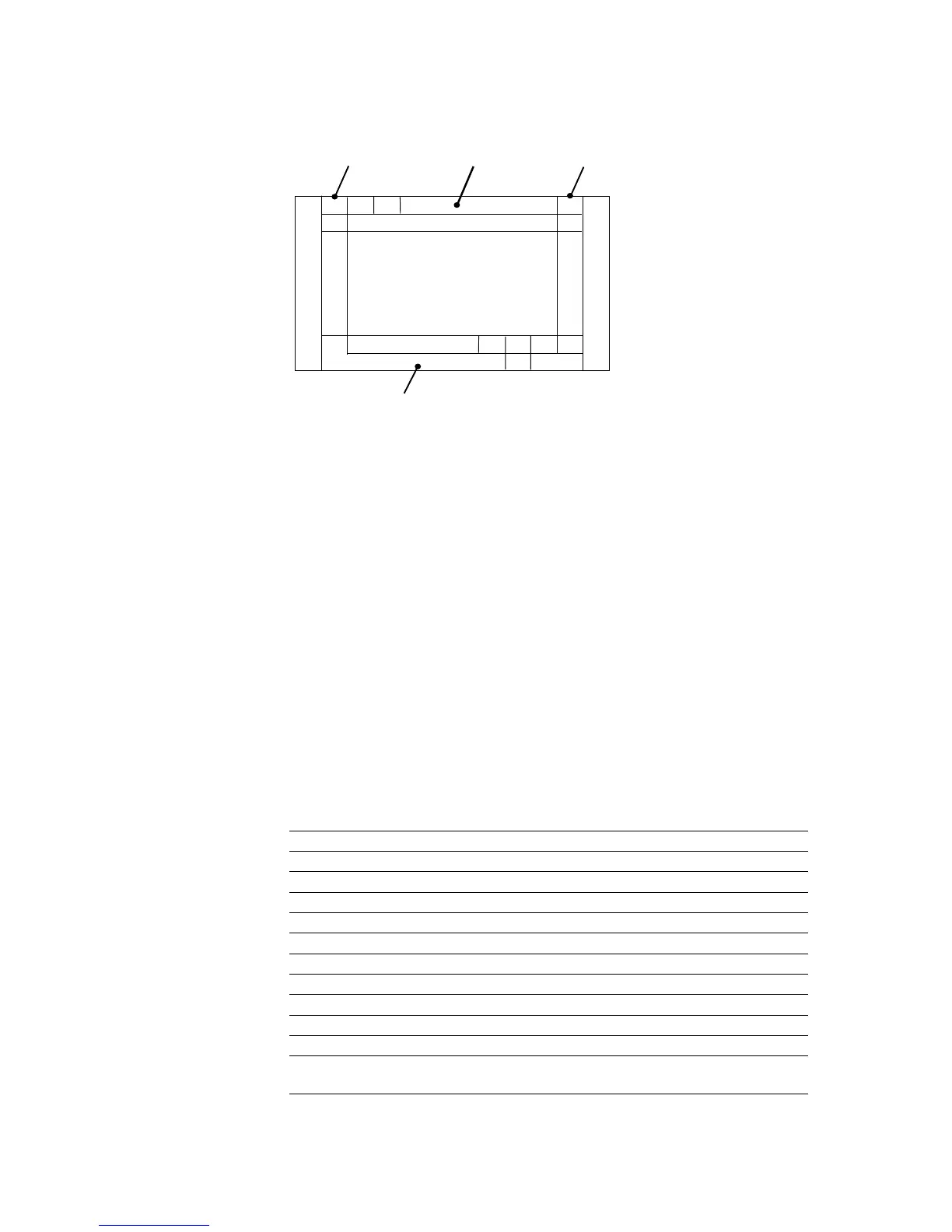

dn-1
dn-2
d0
C1
L1
Lm-2
Lm-1
Ck-1 Ck-2
C0
Rm-2
Rm-1
R0
R1
Stop
Start
L0
Left row indicators Right row indicatorsData codeword area
Error correction area

Kyocera Ecosys FS-1320D Specifications

General

Ethernet LAN	No
Network ready	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	7 s
Print speed (black, normal quality, A4/US Letter)	35 ppm
Printing colors	Black
Maximum duty cycle	50000 pages per month
Number of print cartridges	1
Page description languages	IBM ProPrinter, PCL 5c, PCL 6, PostScript 3
Processor model	405F5
Processor family	PowerPC
Maximum internal memory	544 MB
Display	LED
Certification	TÜV/GS, CE, PTS, C-Tick
Total input capacity	250 sheets
Maximum input capacity	800 sheets
Maximum number of input trays	3
Multi-Purpose tray input capacity	50 sheets
Custom media width	70 - 215.9 mm
Maximum print size	216 x 356 mm
Custom media length	148 - 356 mm
Duplex media weight	60 - 105 g/m²
Paper tray media types	Plain paper
Paper tray media weight	60 - 120 g/m²
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Standard interfaces	USB 2.0
Optional connectivity	Ethernet
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	7.2 W
Power consumption (printing)	544 W
Power consumption (PowerSave)	4.3 W
Media thickness	0.11 mm
Compatible operating systems	Windows OS Linux OS Unix OS Mac OS X 10.2+

Weight and Dimensions

Dimensions (WxDxH)	375 x 393 x 250 mm
