181
7
Operating Control and Displays
7.3.3.4
CMS Menu
The "CMS" menu path provides access to:
•
Parameters
•
Configuration
•
Safety
•
VR curves
•
CO/O
2
data
•
Histories
•
Input/output measurement values
•
Manual burner firing rate specification
•
Cold check
•
System time and date
•
Module replacement
•
Device information
and the corresponding sub-menus available

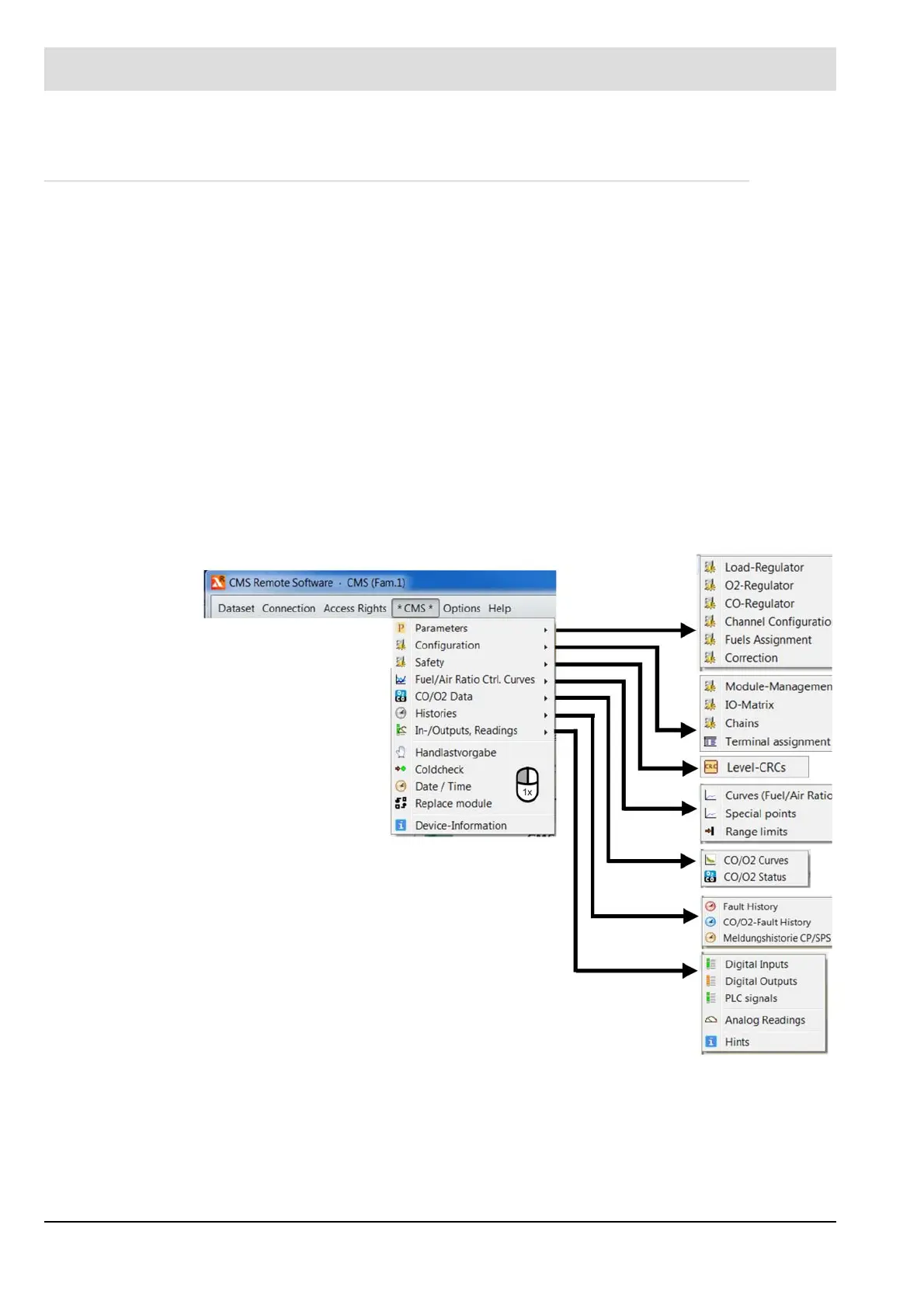

Fig. 7-57 Menu CMS with sub-menus
181
183
