219
8 CO/O
2
Control
8.10.3.2 Operating and Comparing O
2
and CO
e
Measurements
Information in the corresponding basic documents (see Chapter 1.1 Validity of these Instruc-
tions).
8.10.4 Setting the CMS Correction Range

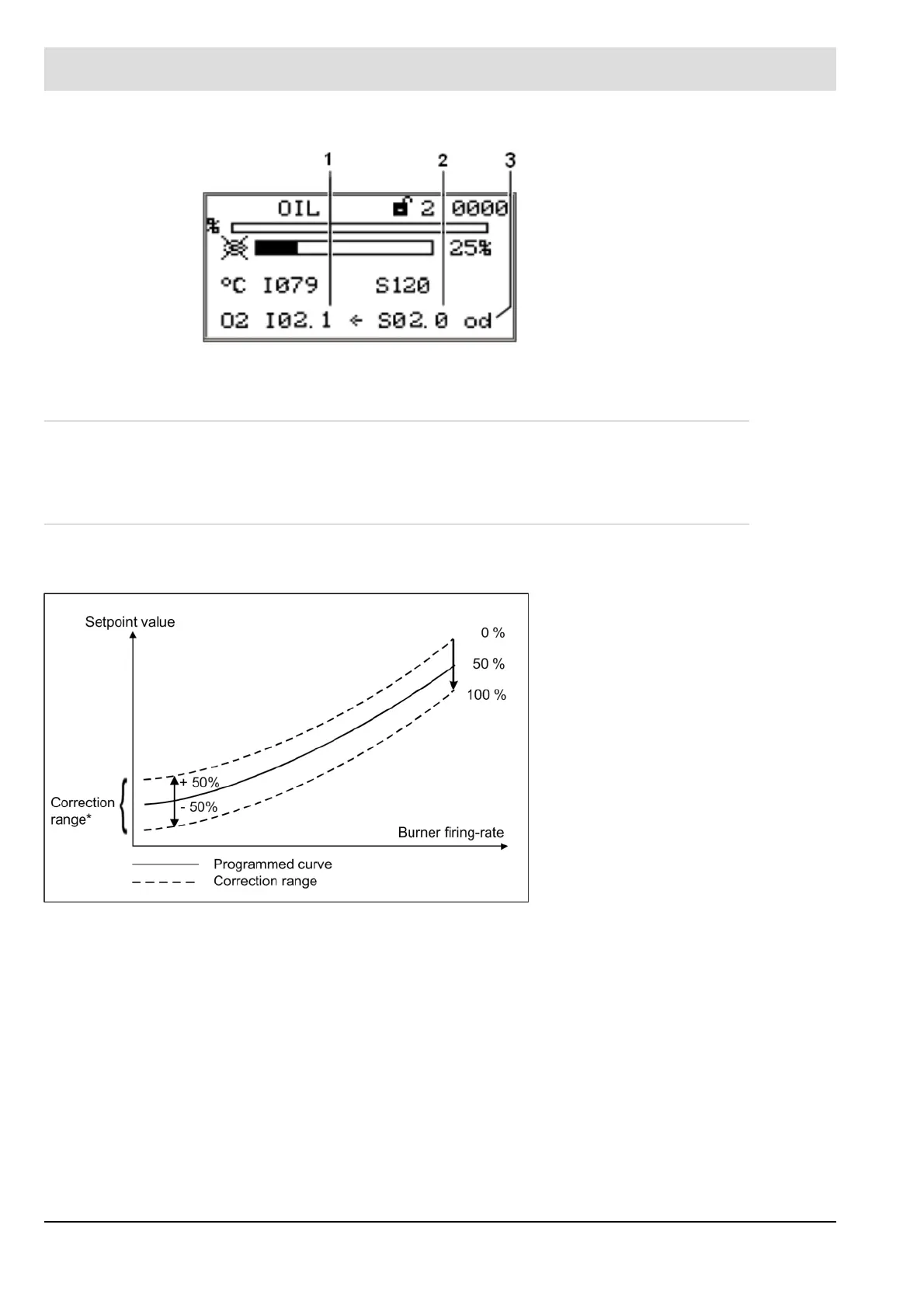

Fig. 8-8 Display for active O
2
trim
1O
2
actual value
2O
2
setpoint value
3 Status display
Spread factor in case off correction of air actuator
Fig. 8-9 Correction with a spread factor of 10 (unchanging correction)
Spread factor (P725 seq.)
Increase
Mode
Input
Neutral value
Correctional range*
= 10
= 1.0
+50 ... -50
0 % ... 100 %
50 %
P 705 ff.
