69
8
Correcting Faults
8.1.3

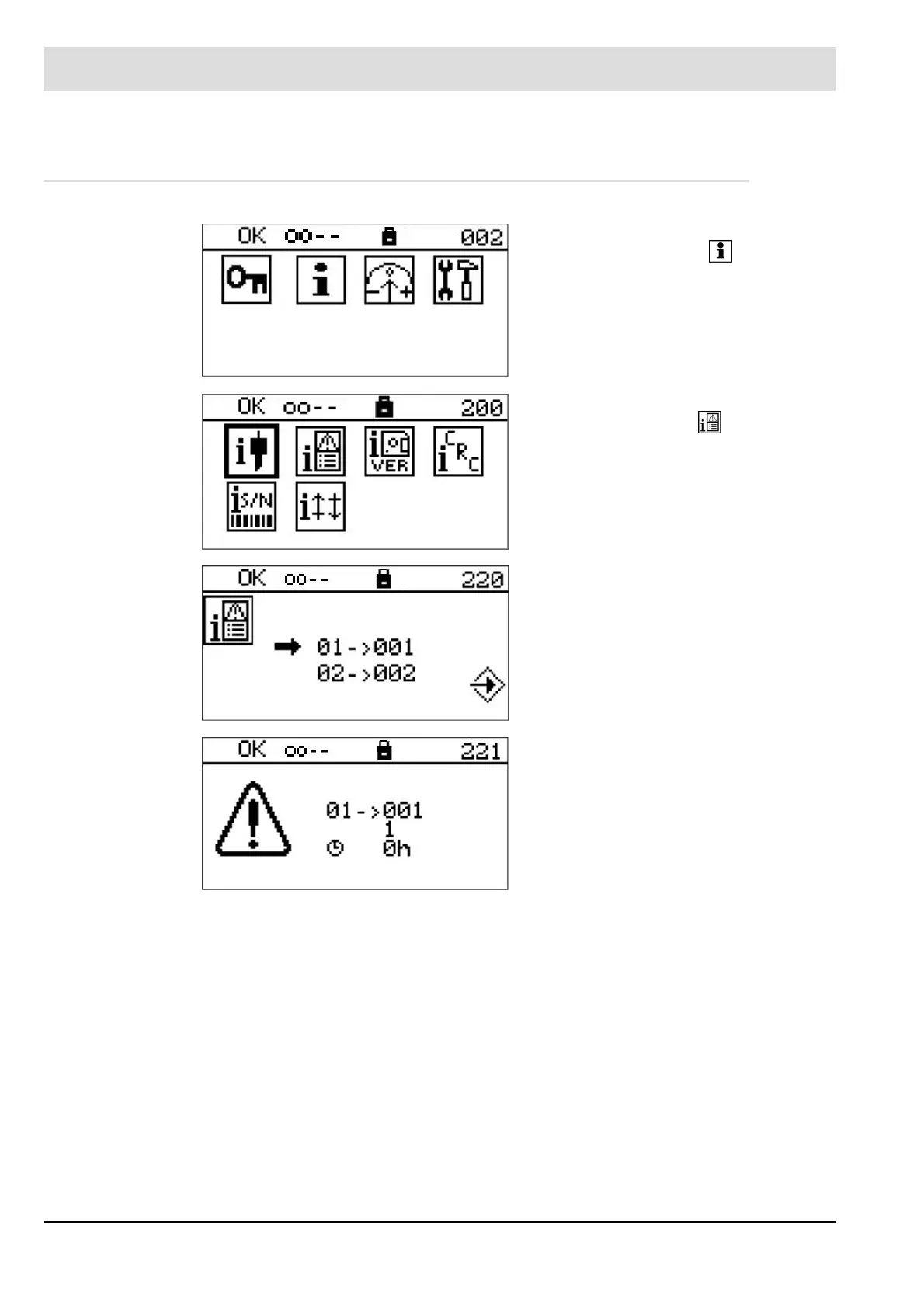

Call of the Fault History
In the MAIN MENU select
for informa-
tion.
In INFORMA
TION select
for the fault
history
.
Fault history
01
Number of the entry
001
Fault number of the main processor
If the fault number is displayed as "101"
(+100), there is a fault in the monitoring
processor
.
1
T
rigger 1
0h
Occurs in case of ... Operating hours
For fault numbers, see Chapter
8.1.1 Faults
.
69
71
