LAUNCH Getting Started & Connections
18

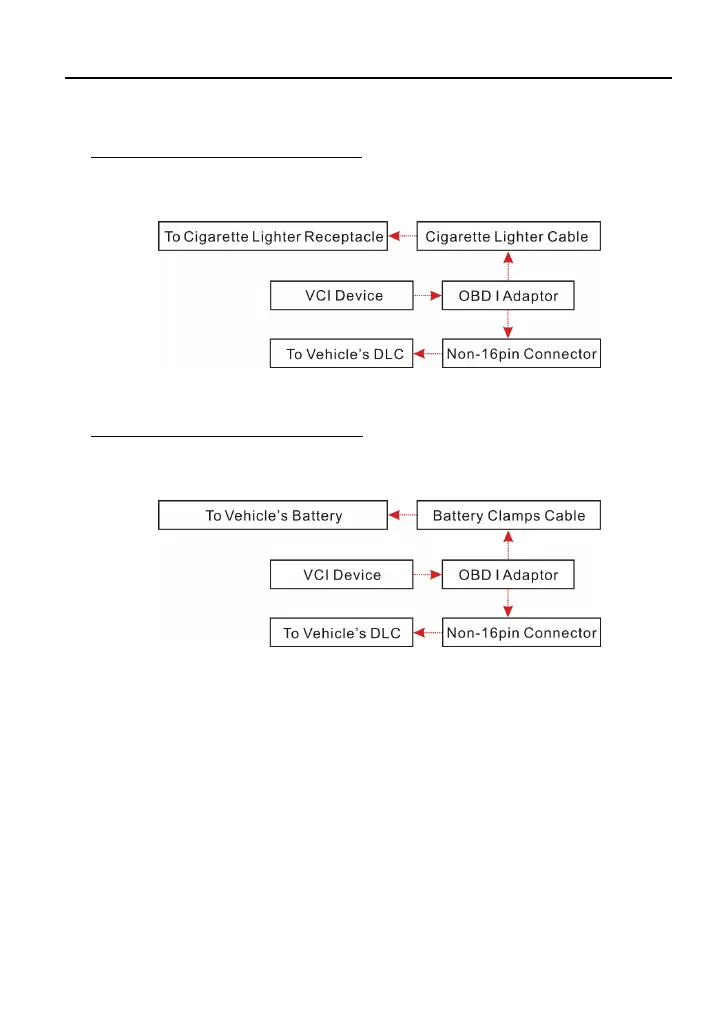

5. To supply power to OBD I adaptor from:
A. Cigarette Lighter Cable (optional): Connect one end of the cigarette lighter
cable to vehicle’s cigarette lighter receptacle, and the other end to the power
jack of OBD I adaptor.
Fig. 4-8
B. Battery Clamps Cable (optional): Connect one end of the battery clamps
cable to vehicle’s battery, and the other end to the power jack of OBD I
adaptor.
Fig. 4-9
4.4 Communication Setup
1. Go to the Bluetooth setting screen by tapping “Settings” -> “Bluetooth”, slide
the Bluetooth switch to ON and the tablet starts searching for all available
Bluetooth device.
2. Tap the desired VCI to pair and match. By default, the Bluetooth ID of the VCI
is 98********00 (where ******** stands for 8 digits).
3. If the Bluetooth pair request pops up on the screen, enter the request pin
code (default code: 0000 or 1234).
4. Once the VCI is paired with the tablet, it will be shown under the paired device
tab.
