LAUNCH X-431Diagun User's Manual
17

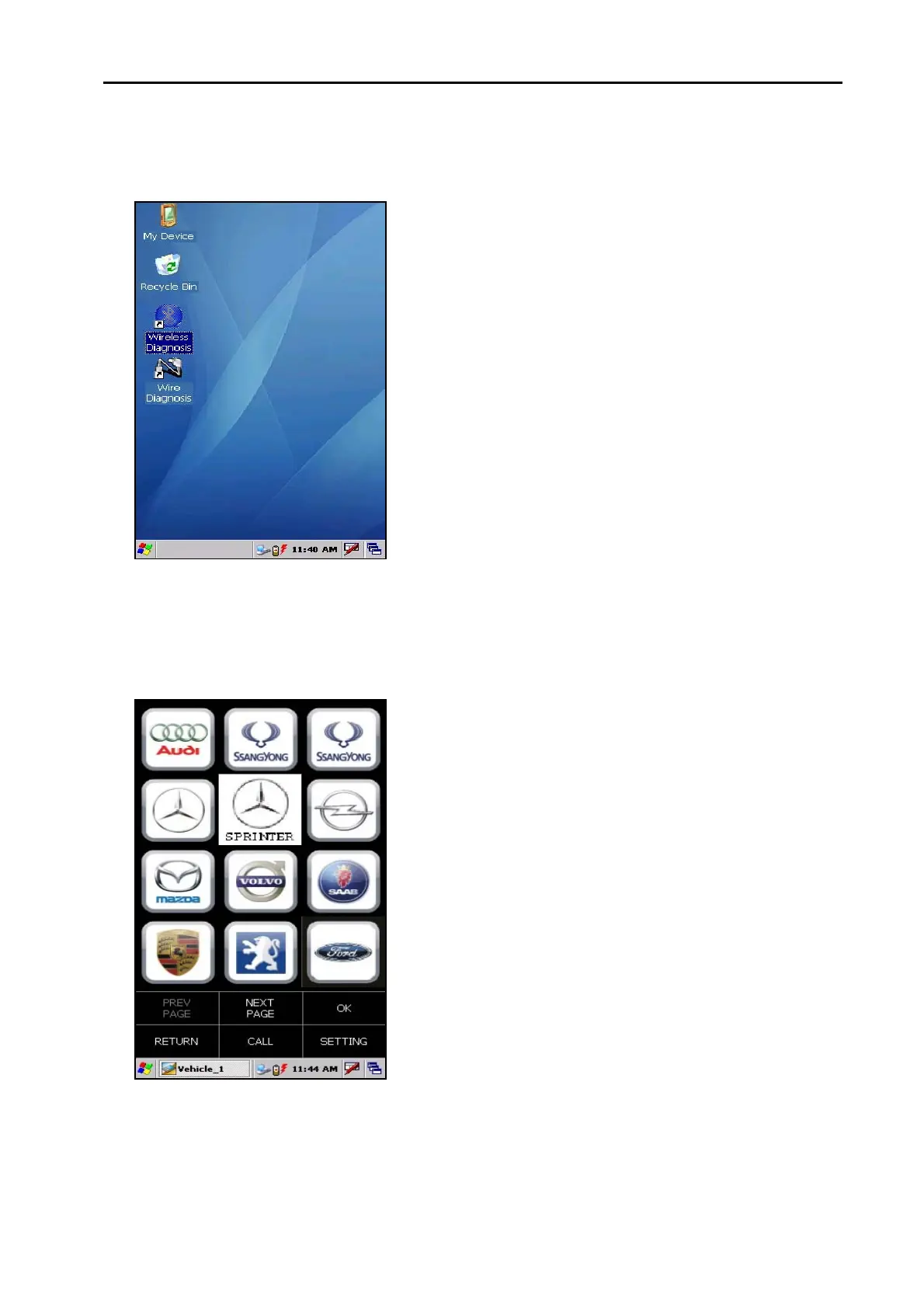

3.2.1 Diagnostic Program
After connections (for details to see
3.1.3), Power on and the calibration
screen appears (see 2.5.2), and after
that, with the Wince screen displayed,
double click the icon "Wireless
Diagnosis" on the desktop to operate
X-431Diagun, as shown on the left.
The maker screen will appear as shown
on the left.
Button Descriptions:
[RETURN]: returns the previous
interface.
[PREVPAGE]: shows the previous page.
This button is invalid if there is only one
page or the first page currently.
[NEXTPAGE]: shows the next page. This
button is invalid if there is only one page
or the last page currently.
[CALL]: view the vehicle management
record. (the stored datastream and
oscillograph)
[SET]: select the language.
