Keor MOD
Installation and maintenance manual
25
4.2.4 Cable fastening
In the accessory box there are two metal bars for Keor MOD 125 and three metal bars for Keor MOD 250. They are used
along with the plastic supports for cable ties to fasten the installation cables.
Each bar must be fixed to the cabinet using two hex M8x14 screws.
The plastic supports for the cable ties must be fixed on the bar using the M6 torx pan head screws.
(all the dimensions are in mm)

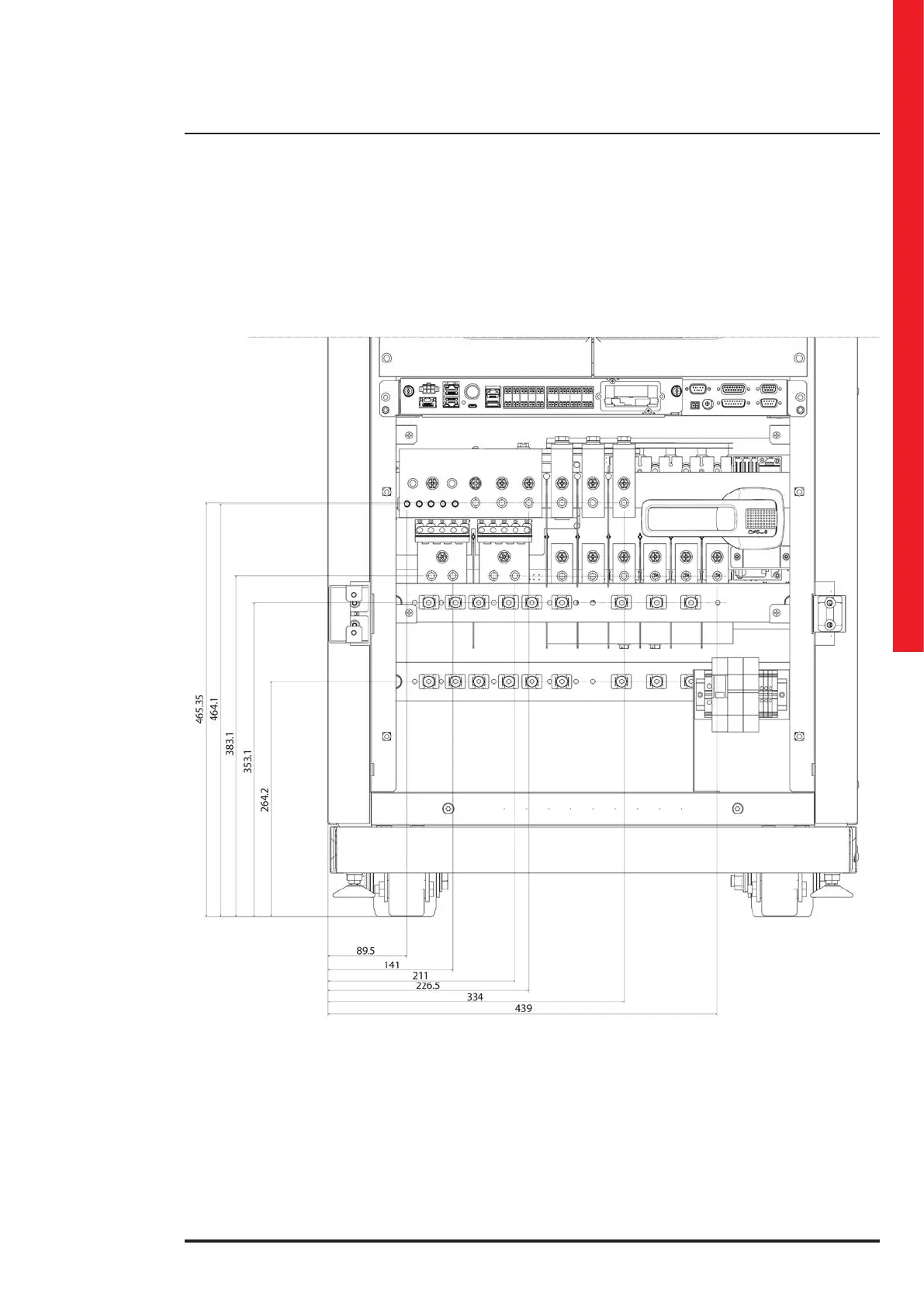

KEOR MOD 125 – view of the two metal bars for cable fastening
