GR30/GM30/GR50, Description of the System
21
Minimum setup
components

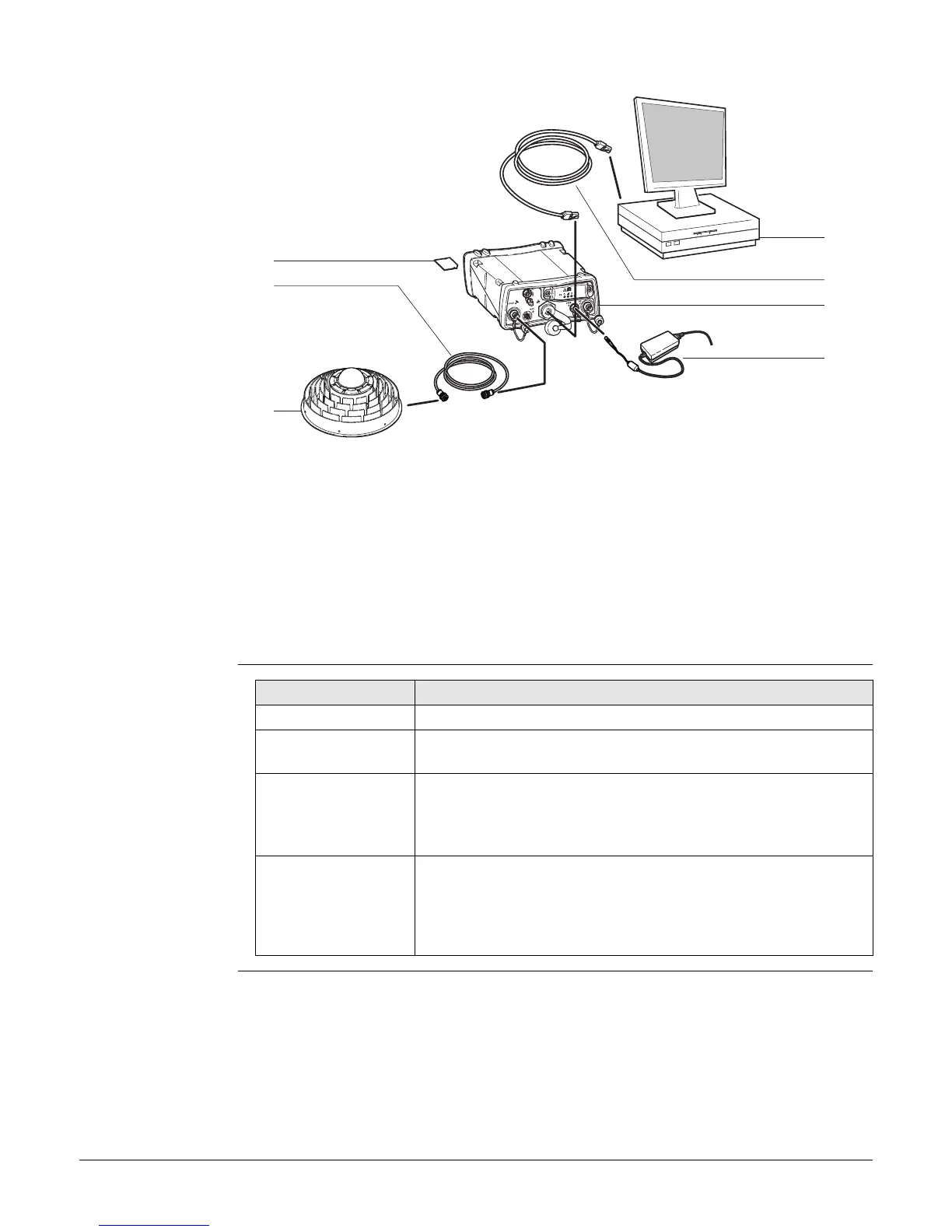

The following diagram shows the minimum components required to operate a
GR30/GM30/GR50.
Main components
a) SD card
*
b) Antenna cable
c) GNSS antenna
d) Computer running web interface or Leica GNSS Spider
e) Ethernet or USB cable
f) GR30/GM30/GR50
g) Power supply
*
The instrument can be operated without the SD card but only data streaming will
be possible.
a
e
d
f
g
b
c
GR10_021
Component Description
GR30/GM30/GR50 To provide the storage and streaming of raw satellite data.
Antenna To receive the satellite signals from the GNSS (Global Naviga-
tion Satellite System) satellites
Web interface Web-based tool to configure the GR Series instrument.
The GR50 features a display and buttons which can be
used for intial instrument setup or minor configuration
changes in the field.
Leica GNSS Spider The reference station office software including comprehensive
instrument control and configuration, file download and firm-
ware upload functions which support working with Leica GR
Series instruments. Supports the connection to single or
multiple reference instruments simultaneously.
To Next Page
