GR30/GM30/GR50, Operation
58
7.4.3 Slot-in Devices
Devices fitting into
the
GR30/GM30/GR50
Digital cellular phones fitting into the slot-in port (P3)
Radios fitting into the slot-in port (P3)

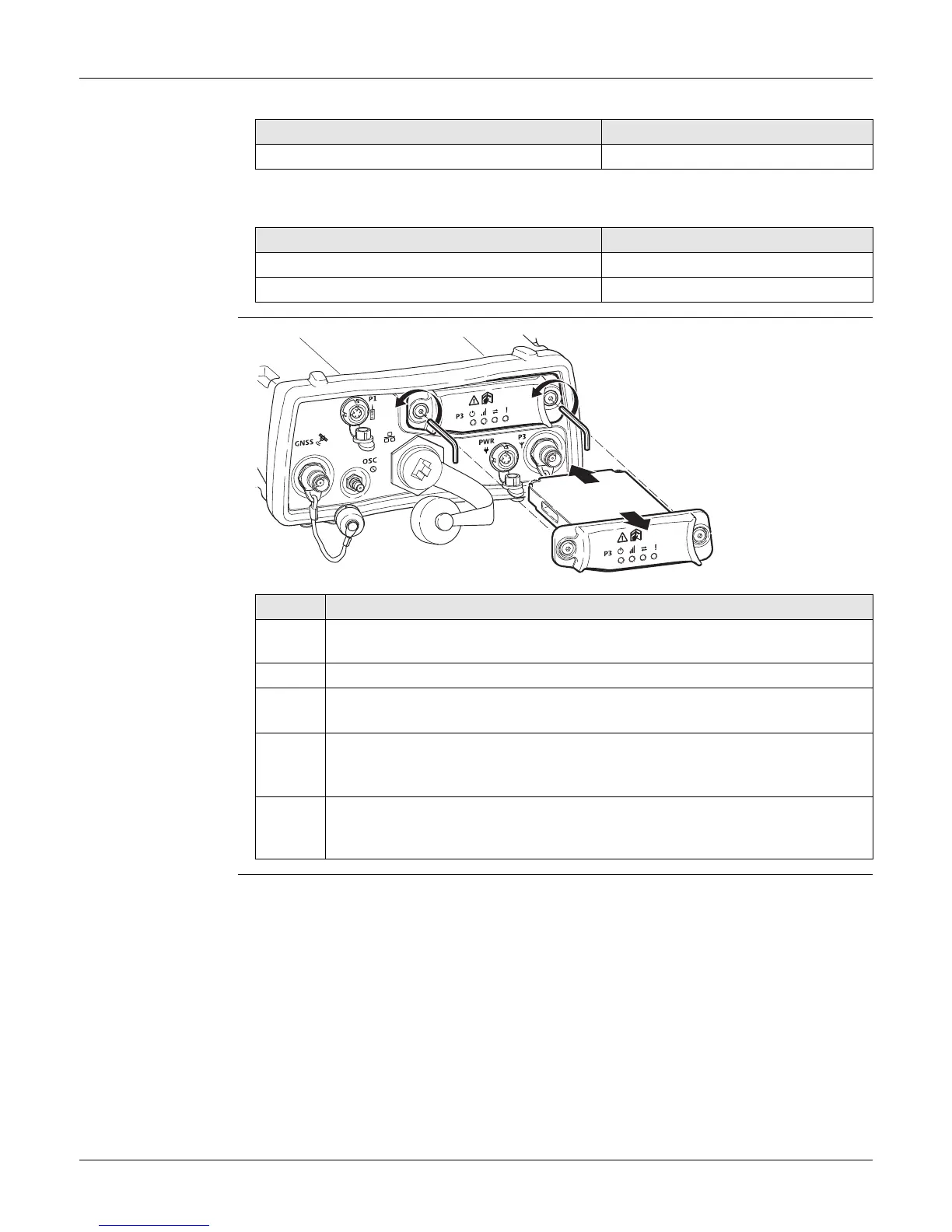

Insert and remove a
slot-in-device in a
GR30/GM30/GR50
Digital cellular phone Device
Telit 3G GSM/GPRS/UMTS SLG1-2
Radio Device
Satelline TA11 (TX only) SLR1-2
Satelline M3-TR1 (TX/RX) SLR5-1
Step Description
1. Loosen the screws of the communication slot-in port (P3) with the Allen key
that is supplied with the slot-in device.
2. Remove the compartment cover and attach it to the slot-in device.
3. Insert the slot-in device into the P3 slot-in port.
The LEDs on the device must point downwards.
4. Tighten the screws.
All screws have to be tightened to ensure that the instrument is
waterproof.
5. Attach the antenna for the slot-in device to communication slot-in port
antenna (P3), which is located below the slot-in port next to the power port
(PWR).
GR10_010
1
1
2
3
