GR30/GM30/GR50, Installation
30
3.2 Installation Options
Description GR Series instruments are designed for various installation cases. Below is a short
description of four installation cases for the instrument. Please note that the diagrams
do not show all the equipment required for a complete reference station installation.
For full installation details, please refer to the
• GNSS Reference Station and Networks - An Introductory Guide.
• GNSS Networks and Reference Stations Equipment List

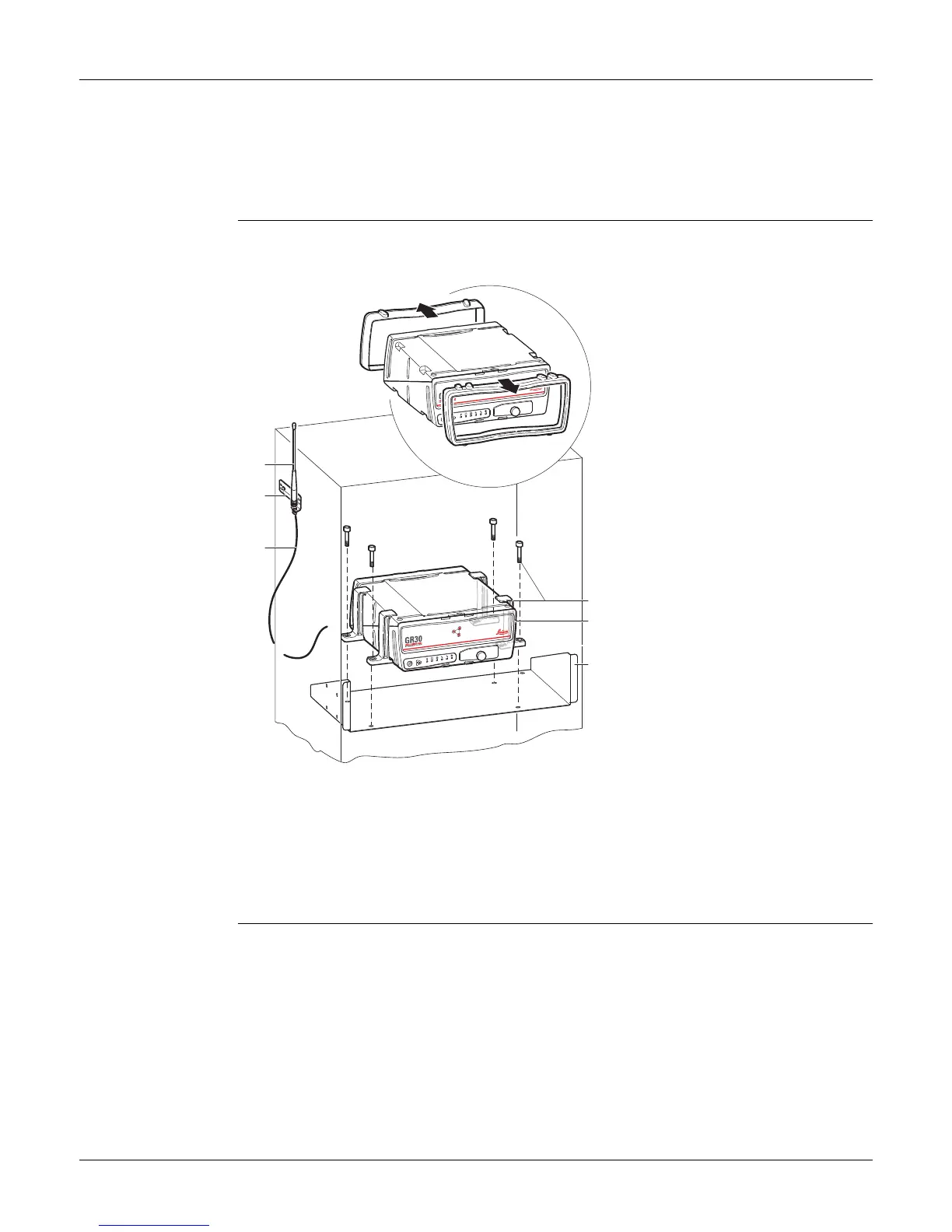

Rack Mount Together with the rack mount accessory kit the instrument can be easily mounted into
a standard 19 inch IT rack.
If space in the rack is limited, then the rubber bumpers on the instrument can
be removed. The total height of the rack kit and instrument is then 2U. If the
bumpers are removed, please remove the small feet from the mounting
brackets.
The radio/GSM antenna must be installed on the outside of the rack if a slot-
in or serial device is used.
a) Radio/GSM antenna
b) Antenna bracket
c) Radio/ GSM antenna cable
d) Rack mount kit
e) GR30/GM30/GR50
f) Rack mount kit
011642_001
a
b
c
d
e
f
