8
T
echnical Information
Service Manual

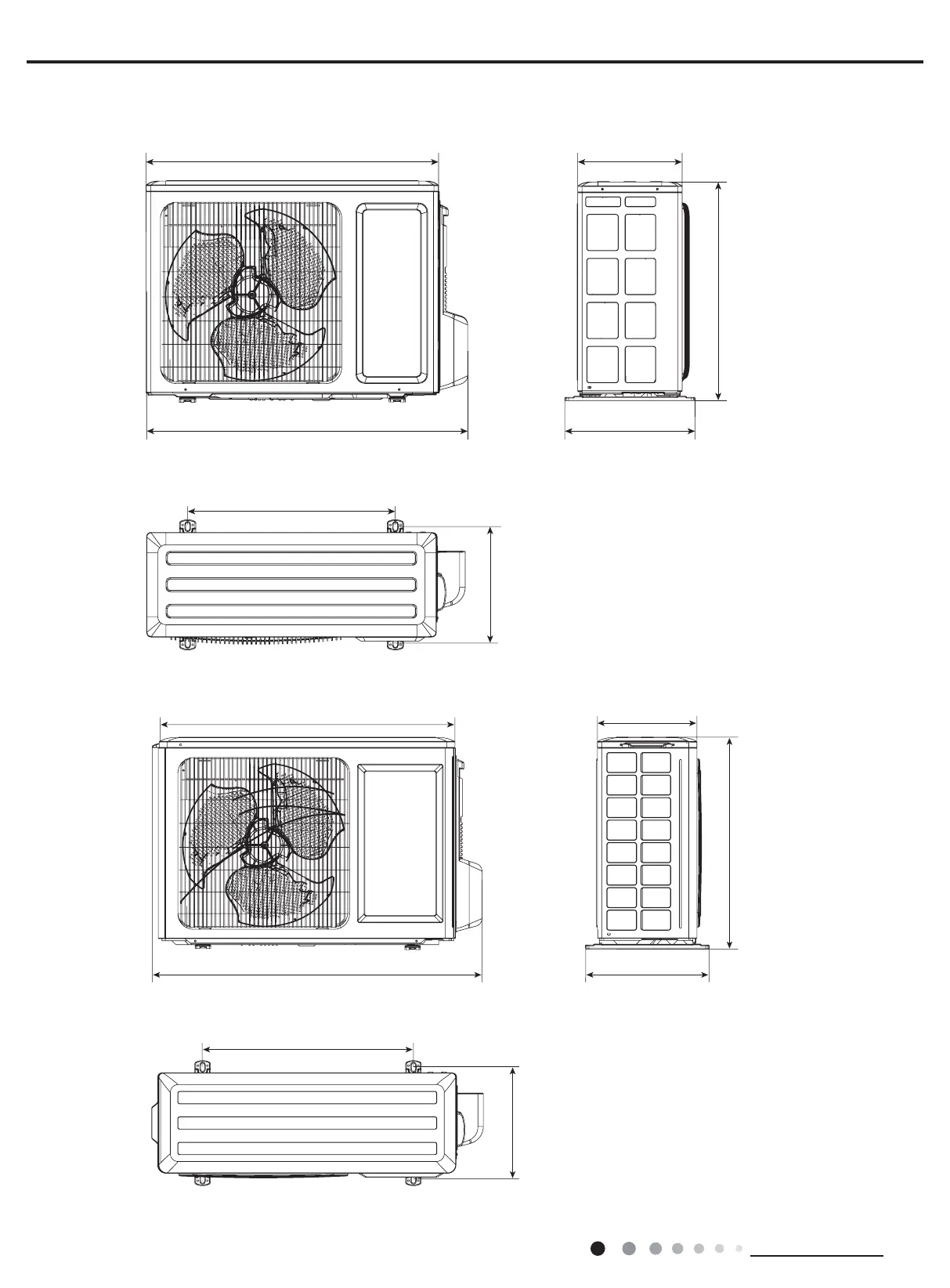

3.2 Outdoor Unit
LM012CO-100T432-1
LM009CO-100T432-1
848
257
540
286
320
763
540
Unit:mm
Unit:mm
712
776
510
32
0
25
7
286
540
10
12
Table of Contents
Default Chapter
2
Table of Contents
2
Part Ⅰ : Technical Information
4
1 Summary
4
2 Specifications
5
Specification Sheet
5
Capacity Curve in Different Outdoor Temperature
9
Cooling and Heating Data Sheet in Rated Frequency
9
3 Outline Dimension Diagram
10
Indoor Unit
10
Outdoor Unit
11
4 Refrigerant System Diagram
13
5 Electrical Part
14
Wiring Diagram
14
PCB Printed Diagram
18
6 Function and Control
19
Remote Controller Introduction
19
Brief Description of Modes and Functions
23
Part Ⅱ : Installation and Maintenance
27
7 Notes for Installation and Maintenance
27
8 Installation
29
Installation Dimension Diagram
29
Installation Parts-Checking
31
Selection of Installation Location
31
Electric Connection Requirement
31
Installation of Indoor Unit
31
Installation of Outdoor Unit
34
Vacuum Pumping and Leak Detection
35
Check after Installation and Test Operation
35
9 Maintenance
36
Error Code
36
Procedure of Troubleshooting
38
Maintenance Method for Normal Malfunction
45
10 Exploded View and Parts List
47
Indoor Unit
47
Outdoor Unit
53
11 Removal Procedure
61
Removal Procedure of Indoor Unit
61
Removal Procedure of Outdoor Unit
71
Appendix
89
Appendix 1: Reference Sheet of Celsius and Fahrenheit
89
Appendix 2: Configuration of Connection Pipe
89
Appendix 3: Pipe Expanding Method
90
Appendix 4: List of Resistance for Temperature Sensor
91
