Technical Information
Service Manual

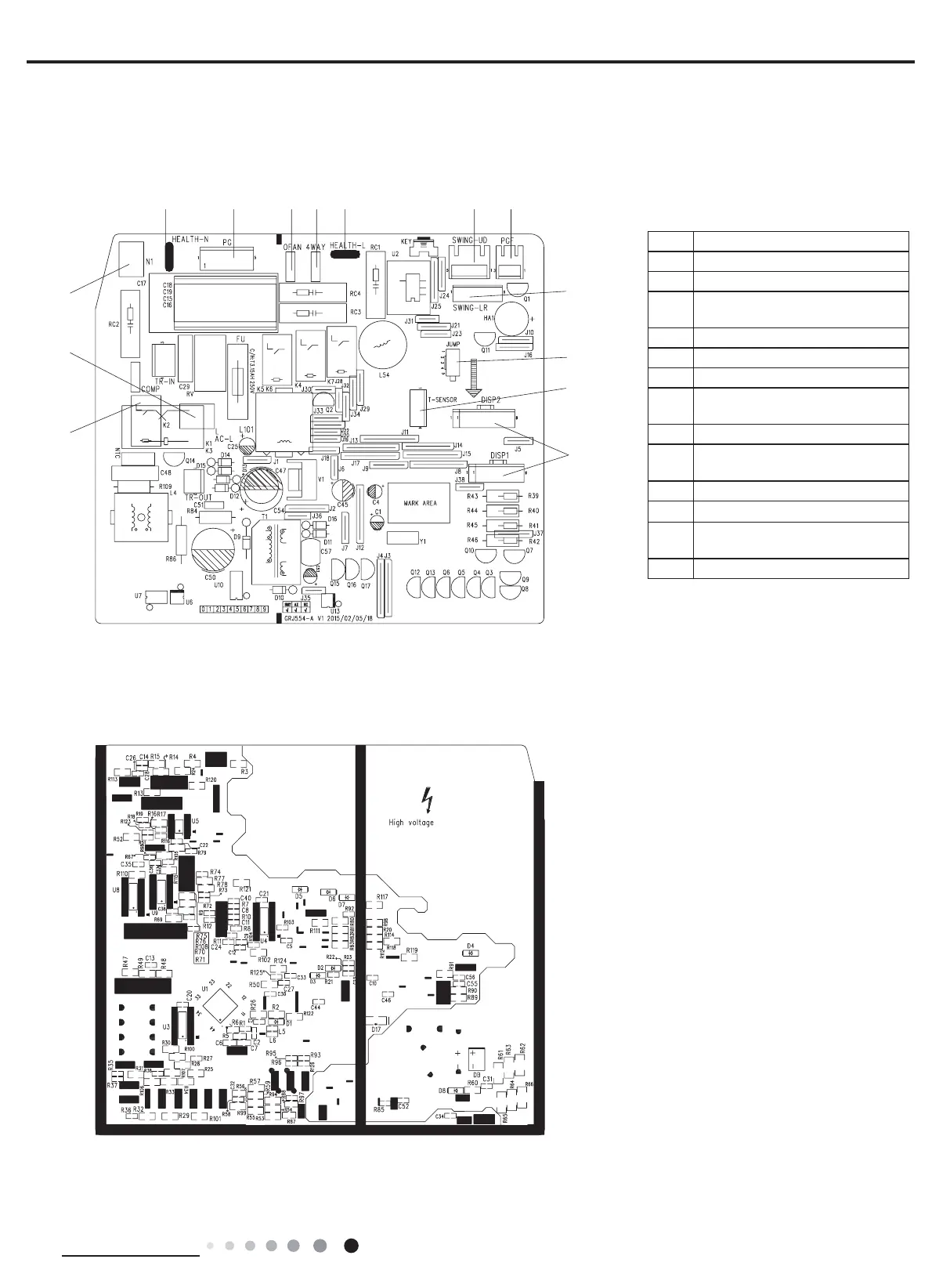

5.2 PCB Printed Diagram
● Top view
● Bottom view
1Interface of compressor
2Interface of live wire
3Interface of neutral wire
4
Interface of neutral wire for
cold plasma
5Interface of PG motor
6Interface of outdoor fan
7Interface of 4-way valve
8
Interface of live wire of cold
plasma
9Interface of up&down swing
10
Feedback interface of PG
motor
11 Interface of left&right swing
12 Jumper
13
Interface of temperature
sensor
14 Interface of display board
1
2
3
4567 8
910
11
12
13
14
