Technical Information
Service Manual

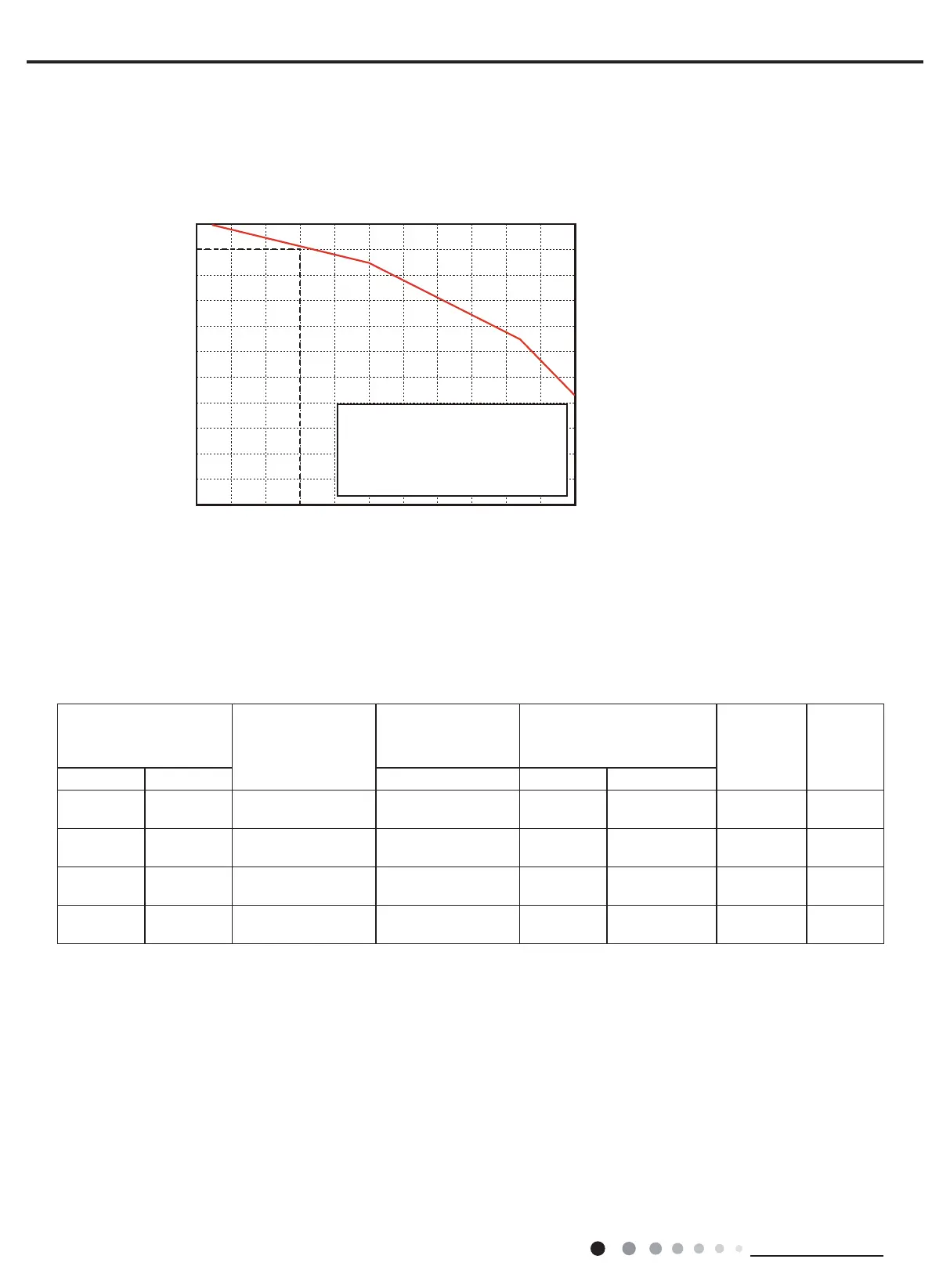

2.2 Capacity Curve in Different Outdoor Temperature
Cooling:
2.3 Cooling and Heating Data Sheet in Rated Frequency
Rated cooling condition(°C)
(DB/WB)
Model
Pressure of gas pipe
connecting indoor and
outdoor unit
Inlet and outlet pipe
temperature of heat exchanger
Fan speed of
indoor unit
Fan speed
of outdoor
unit
Indoor Outdoor P (MPa) T1 (°C) T2 (°C)
27/19 35/24
LM009CI-100T432-1
LM009CO-100T432-1
0.9~1.1
in:10~14
out:11~14
in:72~83
out:35~40
Super High High
27/19 35/24
LM012CI-100T432-1
LM012CO-100T432-1
0.8~1.1
in:10~14
out:11~14
in:69~74
out:38~45
Super High High
27/19 35/24
LM018CI-100T432-1
LM018CO-100T432-1
0.8~1.0
in:8~11
out:11~14
in:75~85
out:37~43
Super High High
27/19 35/24
LM024CI-100T432-1
LM024CO-100T432-1
0.9~1.1
in:8~11
out:11~12
in:75~85
out:36~43
Super High High
Cooling:
Instruction:
T1: Inlet and outlet pipe temperature of evaporator
T2: Inlet and outlet pipe temperature of condenser
P: Pressure at the side of big valve
Connection pipe length: 5m.
Outdoor temp.( )
)%(oitar yticapaC
32 33 34 35 36 37 38 39 43
40 41 42
100
105
95
90
85
80
75
70
65
60
55
50
Conditions
Indoor:DB27°C/WB19°C
Indoor air flow:Super High
Pipe length:5m
°C
