Technical Information
Service Manual
5. Electrical Part

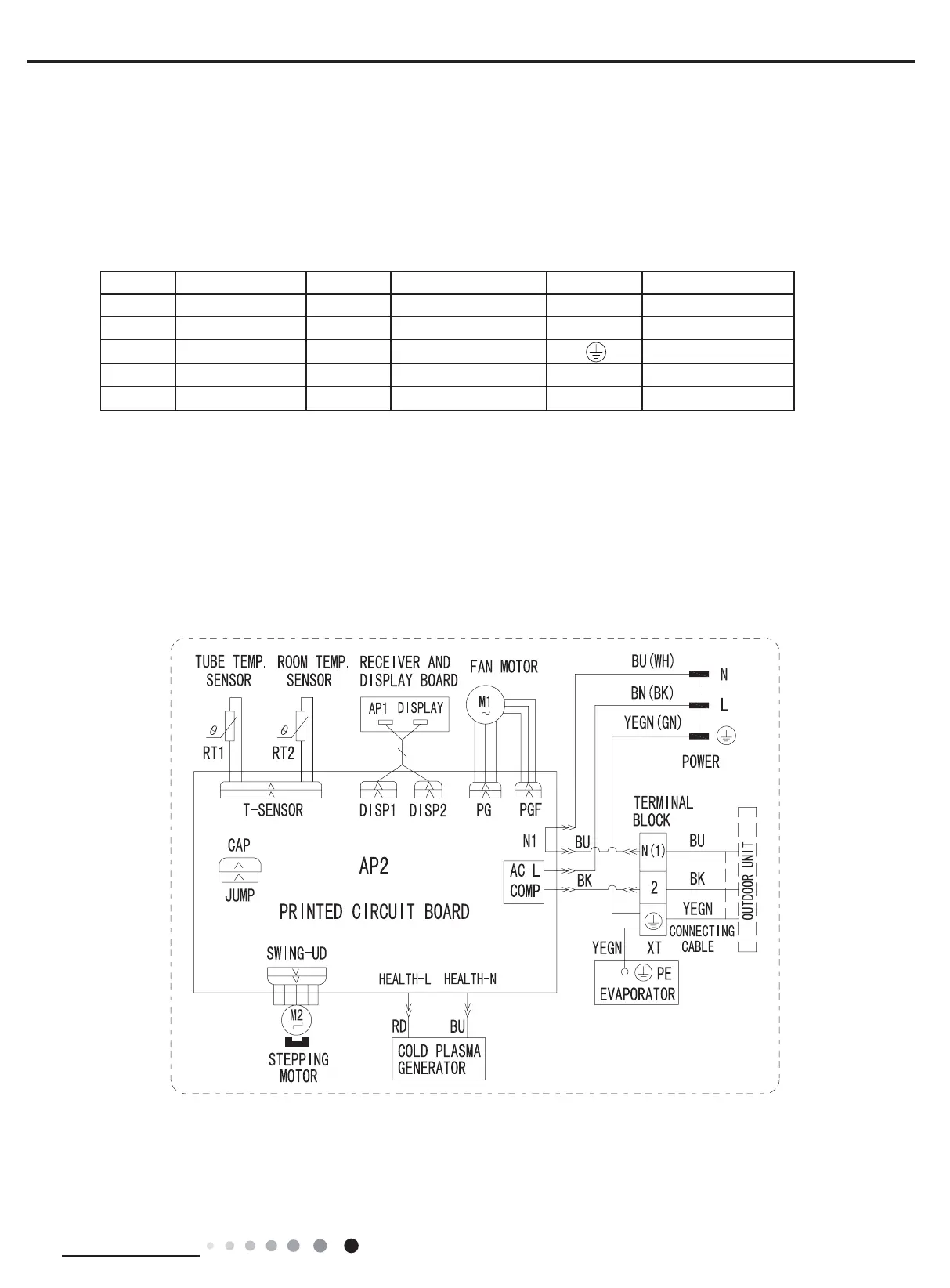

5.1 Wiring Diagram
● Indoor Unit
●Instruction
LM009CI-100T432-1 LM012CI-100T432-1
Symbol Symbol Color Symbol Symbol Color Symbol Name
WH White GN Green CAP Jumper cap
YE Yellow BN Brown COMP Compressor
RD Red BU Blue Grounding wire
YEGN Yellow/Green BK Black / /
VT Violet OG Orange / /
Note: Jumper cap is used to determine fan speed and the swing angle of horizontal lover for this model.
..

