Lennox Prodigy 2.0 User Manual

Page 61
(terminated)(terminated) (not terminated) (not terminated)
CONTROLLER/
ROUTER
(not ter
minated)
(not termin
ated)
(not terminated)
(terminated per mfg
instructions)
The configuration shown above has terminations on the
M3 Unit Controller BACnet modules at both ends and
ONLY at both ends of the chain.
The configuration shown to the right has a termination at
the controller/router on one end and a termination at the
M3 Unit Controller BACnet module on the other end; ter
minations are ONLY at the ends of the chain.
Cable type - twisted pair with shield, 22 awg minimum,
Belden #88761 or #8761 (Lennox 27M19, 94L63, 68M35).
CONTROLLER/
ROUTER
(not terminated) (terminated)
(not ter
minated)

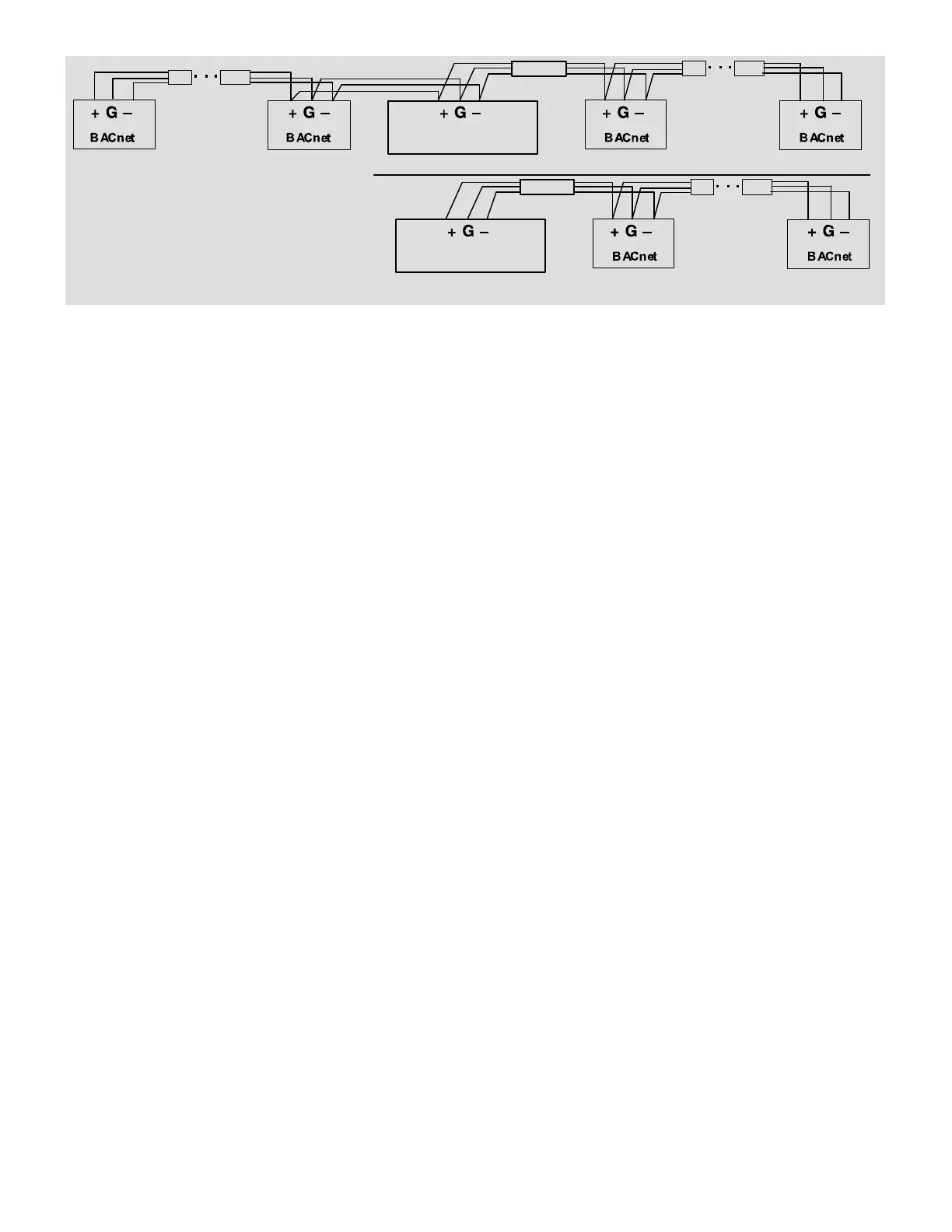

Figure 21. Terminating ends of daisy-chained networks
12.4. Analog Output Objects
Optional Properties Supported: Min_Pres_Value, Max_Pres_Value
Optional Writable Properties: Out_Of_Service
Analog output object's Overridden status flag set if the equivalent set point in the M3 Unit Controller is written to by an Sbus
device.
Table 44. Analog Output Objects List
Object ID Object Name Units Min. Value Max. Value Valid Values within Range
101 Application Mode Control None 0 255 0,1,3,6,9,208,209,216,217,218,224‐254,255*
102 Outdoor Air Min PPS Control Percent 0 255
If set to 101 through 255, local M3 Unit
Controller parameter will be used.
103 Occupancy Override Control None 0 255
104 Occupancy Scheduler Control None 0 255
107 Occupancy Sensor Input None 0 255
108 Space Dehumidification Set point Percent 0 100
109 Temperature Set Point (abs) Deg. F 36.25 100
110 Temperature Set Point Offset Deg. F -32 31.75
113 Space Temperature Input Deg. F 36.25 100
114 Emergency Override Control None 0 255
115 Compressor Enable Control None 0 255
117 Primary Heat Enable Control None 0 255
119 Auxiliary Heat Enable Control None 0 255
123 Duct Static Set Point In. of water 0 5
124 Building Static Set Point In. of water -0.5 0.5
125 Discharge Air Cooling Set Point Deg. F 40 80 -9,40‐80*
126 Discharge Air Heating Set Point Deg. F 60 140 -9,80‐140*
127 Supply Fan Capacity Input Percent 101 255
If set to 101 through 255, local M3 Unit
Controller parameter will be used.
128 Exhaust Fan Capacity Input Percent 101 255
129 Set Economizer Outdoor Air Suitable None 0 255
