Menu Interface
Table 2 shows the major levels of the menu interface.
Many of these options have more levels and are described
in the following sections that detail DISPLAY, SERVICE,
DATA, and SETTINGS.
Use rectangular button
to progress to next
lower level (i.e. Level 1 to Level 2).
Use left arrow toback up" to the next higher level
(i.e. Level 2 to Level 1).
Use the up/down arrows to move within a level
and change values of selected item.

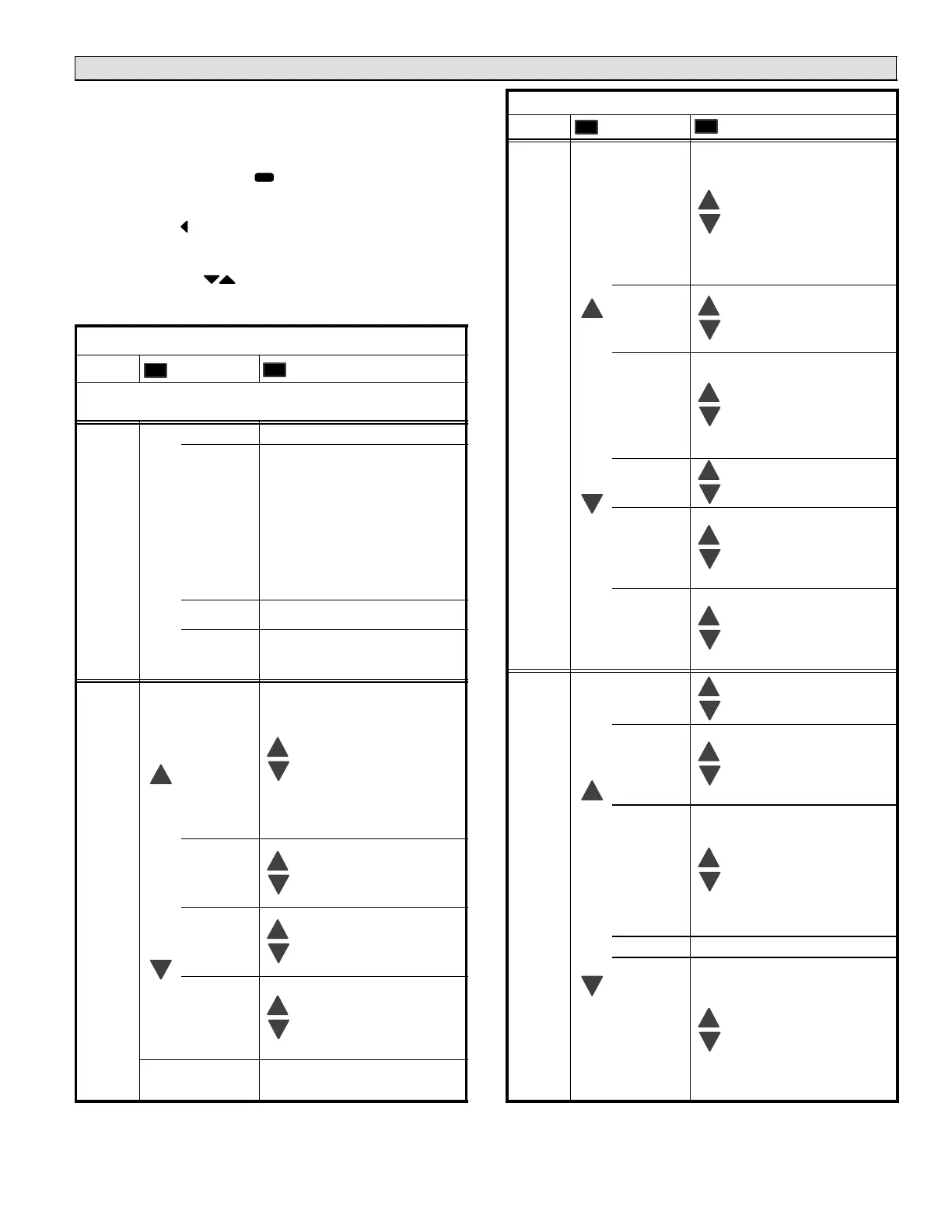

Table 2. Menu Interface
Level 1 Level 2 Level 3
NOTE − Features and options not currently available are greyed out in
the manual and will show a message of N/A" on the display
(dis-
play
area)
ALARM
SILENCE (push any button to silence)
MODE
COMP LOAD
SHEDDING
COOLING
DEHUMIDIFICA-
TION
FAN ONLY
FREE COOLING
FRESH AIR COOL
FRESH AIR HEAT
HEATING
HVAC OFF
IDLE
LOW AMBIENT
LOCKOUT
MORNING
WARMUP
M2 FAILED TO
RESPOND
M2 RESET
OFF ON ALARM
PRE−COOL
PRE INSTALL
RESTARTING..
SMOKE
TEST
LONTALK
NEURON ID
XX:XX:XX:XX:XX:XX
USB
WRITING USB
WRITING ALARM/STATUS LOG
USB COMPLETE
SER-
VICE
USE ARROWS TO MOVE
TEST
GUIDED (N/A)
BLOWER
FANS
COOL
HEAT
DAMPER
HUMIDITROL
MGV
VAV
SENSORS
OUTPUTS
CONTROLLER
OFFLINE
LOCKOUT
BLOWER ONLY (N/A)
COOLING ONLY (N/A)
HEATING ONLY (N/A)
M2 RESET
IN / OUT-
PUTS
THERMOSTAT
ZONING (N/A)
SENSORS
RELAYS
NETWORK
REPLACE
FILTER
BELT
UV LAMP
FANS
BLOWER
COMPRESSOR
REPORT
MAKE REPORT (N/A)
READ INSTALL (N/A)
READ FACTORY (N/A)
Table 2. Menu Interface (cont’d)
Level 1 Level 2 Level 3
DATA
USE ARROWS TO MOVE
RUNTIMES
POWER ON
FILTER: XX HRS
BELT: XX HRS
UV LAMP: XX HRS
BLOWER: XX HRS − XX CYC
COOLING
HEATING
FREE COOLING: XX HRS − XX CYC
FANS
EXHAUST
HUMIDITROL: XX HRS − XX CYC
HISTORY
ALARMS
STATUS
LAST USB REPORT
READ INSTALL RPT
CLEAR HISTORY
SENSORS
(also ac-
cessible
thru In /
Outputs)
TSTAT
BRPM:XX
DPOS:XX%
OAT:XXºF
RAT:XXºF
DAT:XXºF
ZAT:XXºF
IAQ:XX PPM
SMK:OFF/ON
RH:XX%
IE:XX MA
OE:XX MA
GLO:OFF/ON
DI2:OFF/ON
DI3:OFF/ON
DI4:OFF/ON
NETWORK
LCONN ADDRESS
BACNET
LONTALK
FACTORY
READ M2 SOFTWARE VERSION
READ DB SOFTWARE VERSION
READ FACTORY RPT
CATALOG NO.
MODEL NO.
SERIAL NO.
STATUS
OCCUPIED/UNOCCUPIED
SETPOINTS HH CC F
APP MODE 255 255
COMM TYPE
COMM TIMER
#CURR ALRMS N: A1, A2, AN
SET-
TINGS
USE ARROWS TO MOVE
UNIT
UNIT NO.
DATE/TIME
UNITS F/C
SET-
POINTS
COOLING
HEATING
DAMPER
REHEAT
EXHAUST
IAQ
CONTROL
LOCAL
THERMOSTAT
LCONN
BACNET
LONTALK
MSAV
REHEAT
SMOKE MODE
GUIDED SETUP
ECTO
OPTIONS
N/A
INSTALL
NEW M2
DAMPER
LANGUAGE (ENGL/SPAN/FREN)
FLOAT SW
BLOWER PROVING SW
DIRTY FILTER SW
BLOWER OVERLOAD SW
PHASE MONITOR
UV LAMP
ELECTRIC HEAT STAGES
UPDATE DISPLAY SOFTWARE
