Service Center
This menu provides access for the installer or service technician to perform
various functions such as advanced equipment congurations, notications,
tests, diagnostics, installation reports and general information about the
system.
To access the service center screen, from the home screen, go to Menu >
Settings > Advanced Settings > View Support Service Control Center.

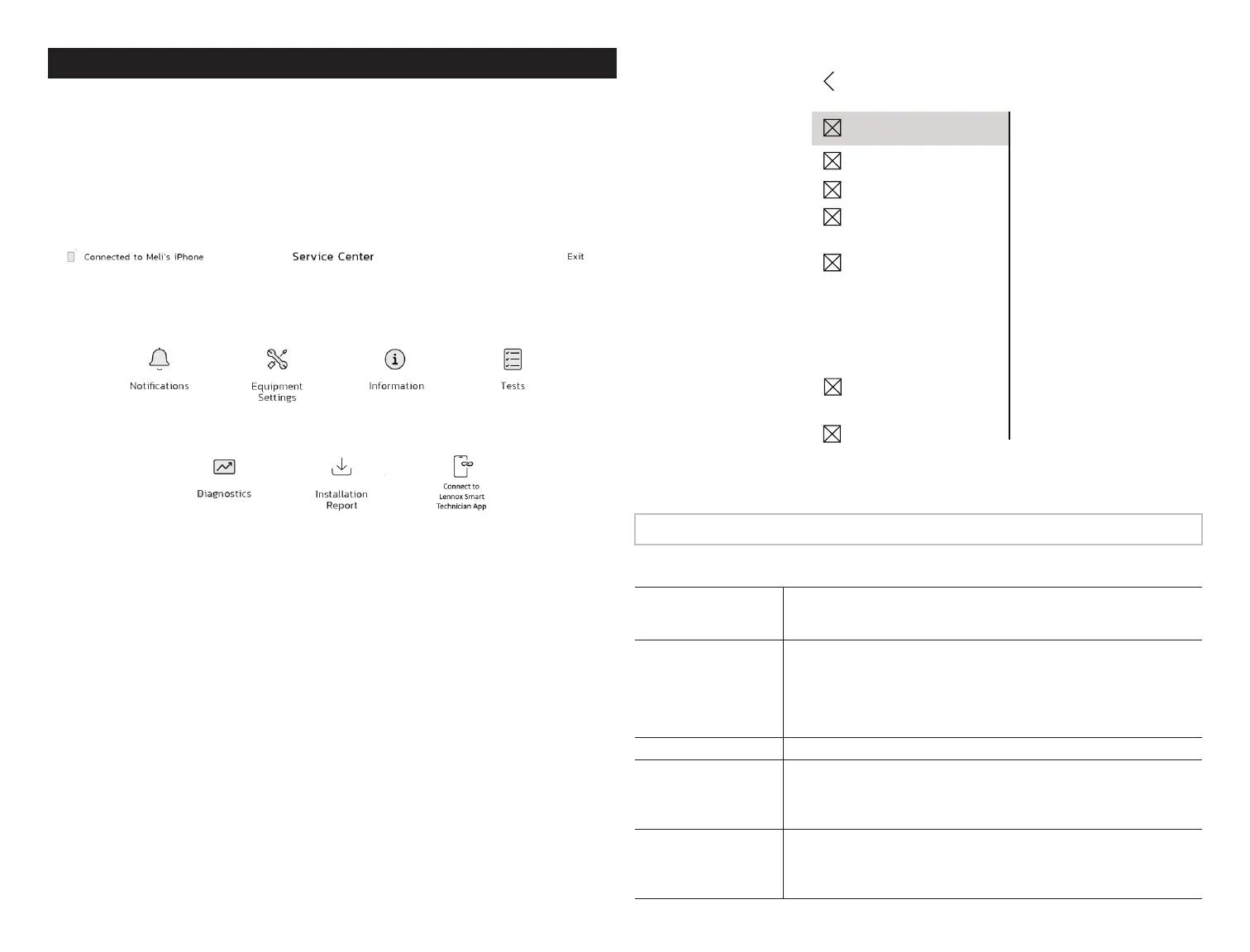

Figure 15. Service Center
Notications
Any active alert conditions will be listed in this section. Reminders will also be
displayed on this screen as well. A list of already cleared notications is also
available.
Equipment Settings
Selections listed in this section are dependent on system hardware
conguration. Not all options listed in this section will be available.
NOTE: When changing the default settings for any parameter, there is a
possibility that it will affect the settings for another parameter. If this
happens, a pop-up message will be displayed listing the other affected
parameters and their new automatically set values.
The following is a complete list of all possible parameters listed under System.
Parameters actually available are dependent on the Lennox communicating
equipment type detected and non-communicating equipment added.
Back
Thermostat
Sensors
Heat Pump
Air Handler
Zoning Control
Add/Remove Equipment
Humidifier
Add Sensors
Reset
Figure 16. Equipment List
Thermostat
Table 5. Thermostat Parameters
Parameter
(In alphabetical
order)
Description
About
This screen provides information concerning language supported,
equipment type name, control software revision, model, control mode
number, control serial number, control hardware revision, protocol
revision number, device product level, 24VAC average power
consumption, 24VAC peak power consumption, compatible devices
list, application code memory size and micro-controller part number.
Auto Brightness Options are on and off. Default is ON.
Auto Changeover
- Humidif.
Deadband
Prevents the humidication and dehumidication settings from being
closer together than 5% or greater than 10% (Dead-band).
Range is 5 to 10%. Default is 5%. Adjustments are in increments of
1%.
Auto Changeover -
Temp Deadband
Prevents the heating and cooling from being set closer together than
3ºF (1.67°C) or 9ºF (5.0°C) (Dead- band).
Range is 3 to 9°F (1.67 to 5.0°C). Default is 3°F (1.67°C).
Adjustments are in increments of 1°F (0.56°C).
