Replacing hardware 15
CRUs and FRUs locations

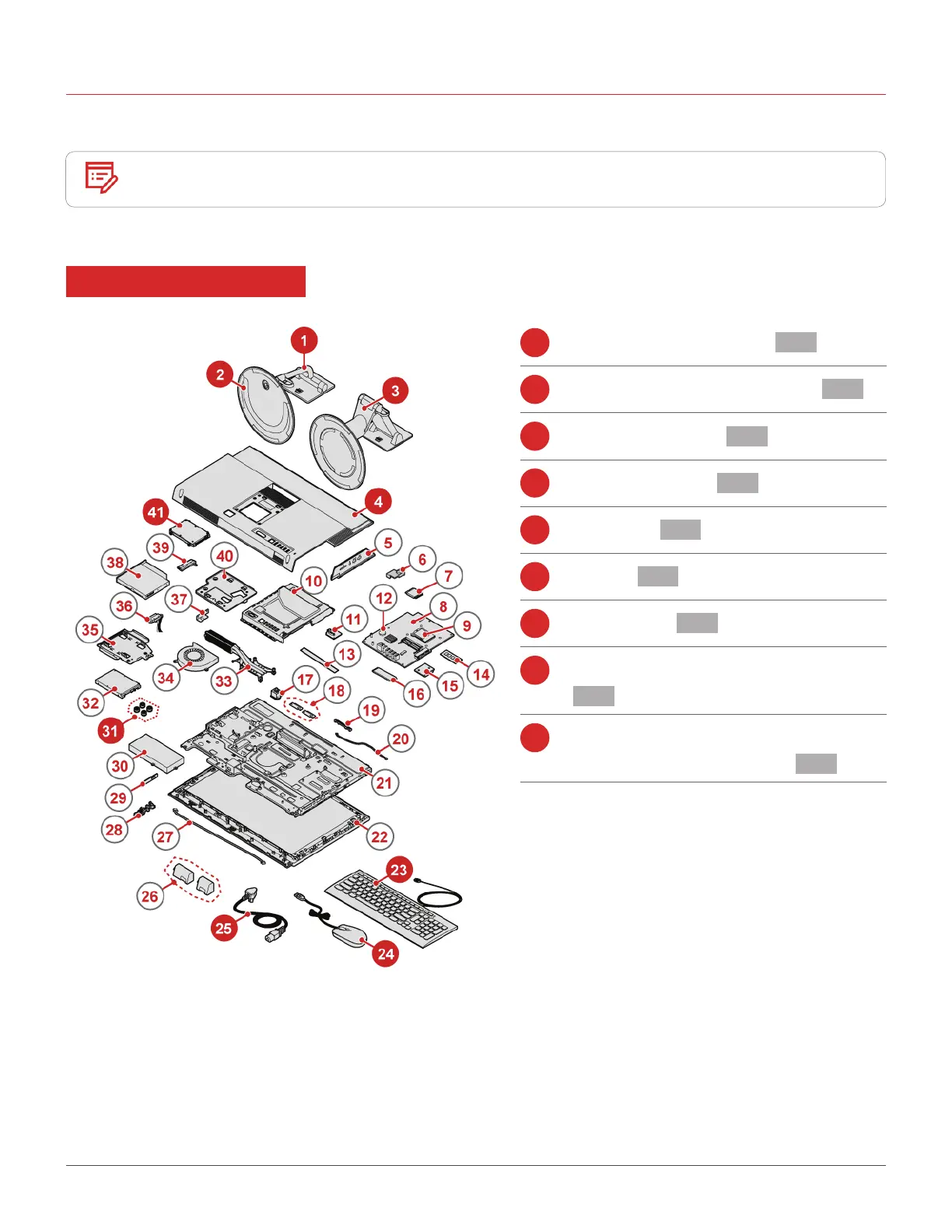

Refer to the following illustrations to check the locations of CRUs and FRUs within the computer.
Note
Some of the following parts are optional on some models.
Self-service CRU
1
Tilt-only monitor stand p. 24
2
Tilt-only monitor stand base p. 24
3
UltraFlex II Stand p. 24
4
Computer cover p. 26
23
Keyboard p. 20
24
Mouse p. 21
25
Power cord p. 23
31
Storage drive rubber cushions (4)
p. 27
41
Primary storage drive
(a 2.5-inch storage drive) p. 27
