Overview 7

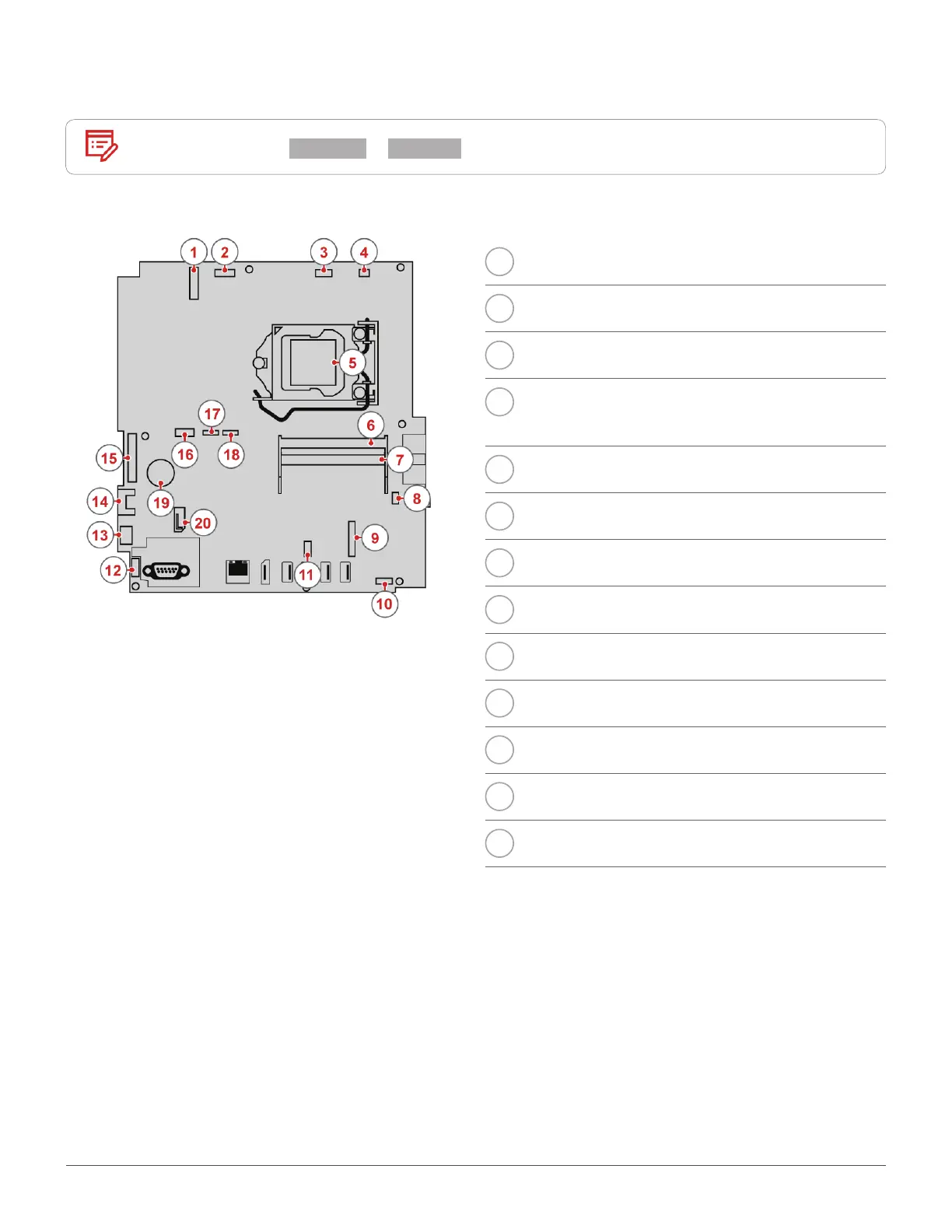

System board
Note
See Front view or Rear view for additional component descriptions.
1
M.2 Wi-Fi card slot
2
Converter board connector
3
Integrated camera connector
4
Cover presence switch connector
(Intrusion switch connector)
5
Microprocessor
6
Memory slot (DIMM1)
7
Memory slot (DIMM2)
8
Card reader connector
9
M.2 storage drive slot
10
Internal speaker connector
11
Serial (COM2) connector
12
Control button board connector
13
Power supply assembly connector
