Lenz Digital Plus BM3 User Manual

27
E
Driving section
Direction of travel
Braking
section
Driving section
Block signal Entry
signal
Braking
section
C
21
2b
2a
T
O C
T
O

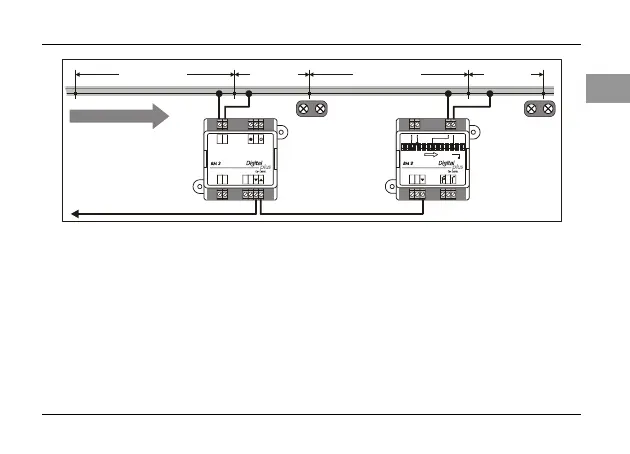

Figure 3
The BM2 has a control output designed for this purpose. Connect this output to the BM3 control
input that controls the previous block (All other wirings necessary for this function are not shown in
Figure 3).
7.2 Controlling the entry into a block section / exit signal
Normally, the signal connected to a BM3 module automatically switches to "Clear" if the block that
is next in the direction of travel is clear. It is possible that you do not want this to happen
automatically because you want to define yourself when the train should accelerate again after a
stop. Typical applications are the exit from a train station or a stop within a block section.
