3.4.15 POS−PFI (Program Function Inputs)
3−93
l
EDSVS9332P−EXT DE 2.0
3.4.15 POS−PFI (Program Function Inputs)
Purpose
l Input for digital signals for controlling user programs, e. g. initiators at the machine or switches
in the keyboard.
POS-PFI1
C1370/1
POS-PFI2
C1370/2
POS-PFI3
C1370/3
POS-PFI4
C1370/4
POS-PFI5
C1370/5
POS-PFI6
C1370/6
POS-PFI7
C1370/7
POS-PFI8
C1370/8
POS-PFI9
C1370/9
POS-PFI10
C1370/10
POS-PFI11
C1370/11
POS-PFI12
C1370/12
POS-PFI13
C1370/13
POS-PFI14
C1370/14
POS-PFI15
C1370/15
POS-PFI16
C1370/16
POS-PFI17
C1370/17
POS-PFI18
C1370/18
POS-PFI19
C1370/19
POS-PFI20
C1370/20
POS-PFI21
C1370/21
POS-PFI22
C1370/22
POS-PFI23
C1370/23
POS-PFI24
C1370/24
POS-PFI25
C1370/25
POS-PFI26
C1370/26
POS-PFI27
C1370/27
POS-PFI28
C1370/28
POS-PFI29
C1370/29
POS-PFI30
C1370/30
POS-PFI31
C1370/31
POS-PFI32
C1370/32
C1371/1
C1371/2
POS-PFI
HIGH-
WORD
LOW-
WORD
9300pos018

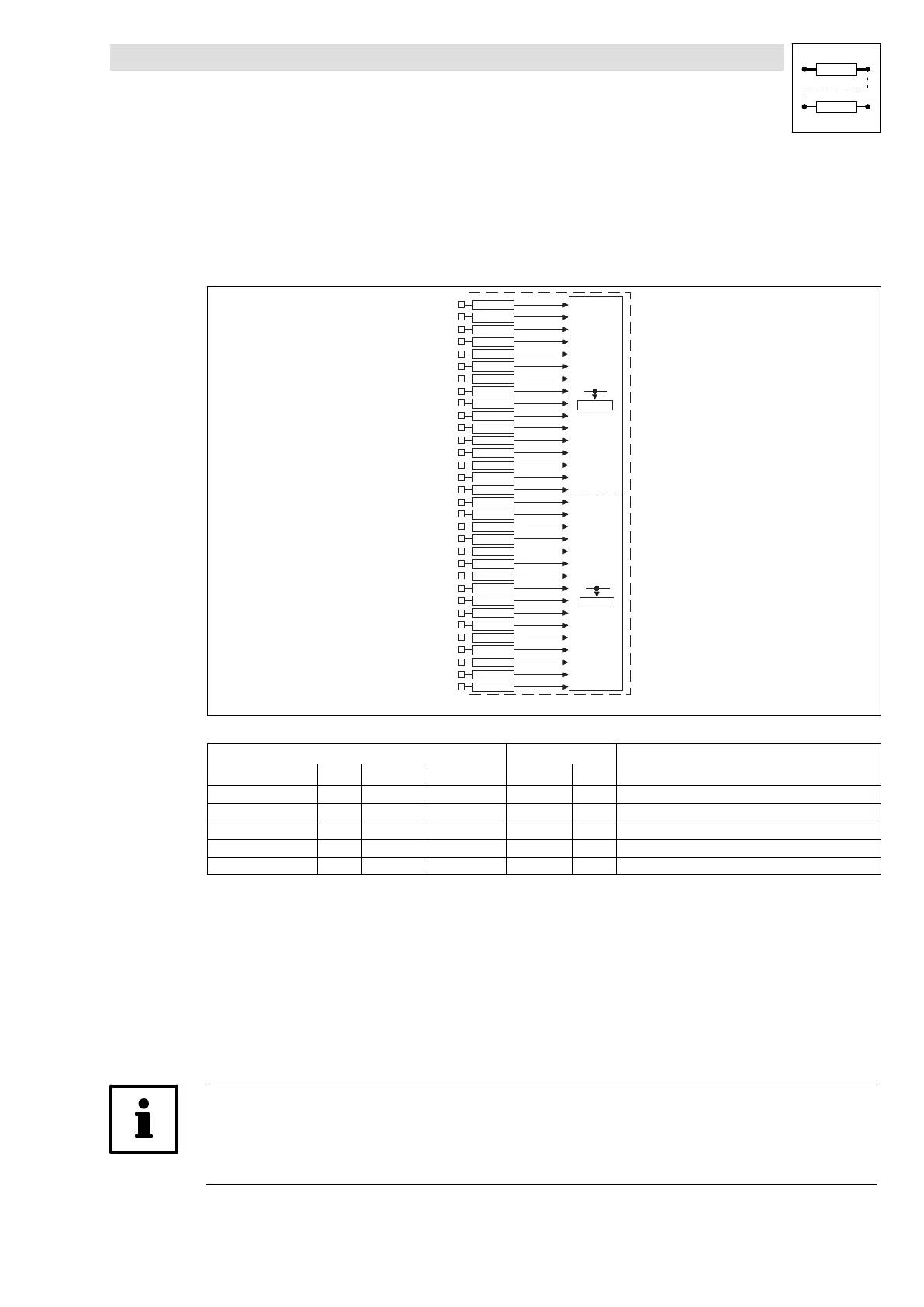

Fig. 3−41 POS−PFI, Program Function Inputs
Signal
Source Note
Name Type DIS DIS format CFG List
POS−PFI1 d − − C1370/1 2 −
... d − − ... 2 −
POS−PFI32 d − − C1370/32 2 −
LOW−WORD − C1371/1 hex − − −
HIGH−WORD − C1371/2 hex − − −
Function
l The PFI are evaluated during PS processing through the following program functions:
Wait for input",
Branch 1" and
Branch 2".
l 32 PFI available.
l The PFI can be linked to any number of digital signal sources (e.g. the digital input terminals
(DIGIN), fieldbus control signals (AIF−IN) or system bus control signals (CAN−IN) (function block
interconnection).
Tip!
The function block POS−PFI is part of POS. Therefore it is not necessary to explicitly transfer it to the
processing.
