Function library
Function blocks
3−106
l
EDSVS9332P−EXT DE 2.0
Function
ANDx−IN1 ANDx−IN2 ANDx−IN3 ANDx−OUT
0 0 0 0
1 0 0 0
0 1 0 0
1 1 0 0
0 0 1 0
1 0 1 0
0 1 1 0
1 1 1 1
The function corresponds to a series connection of normally−open contacts in a contactor control.
ANDx−IN1
ANDx−IN2
ANDx−IN3
ANDx−OUT

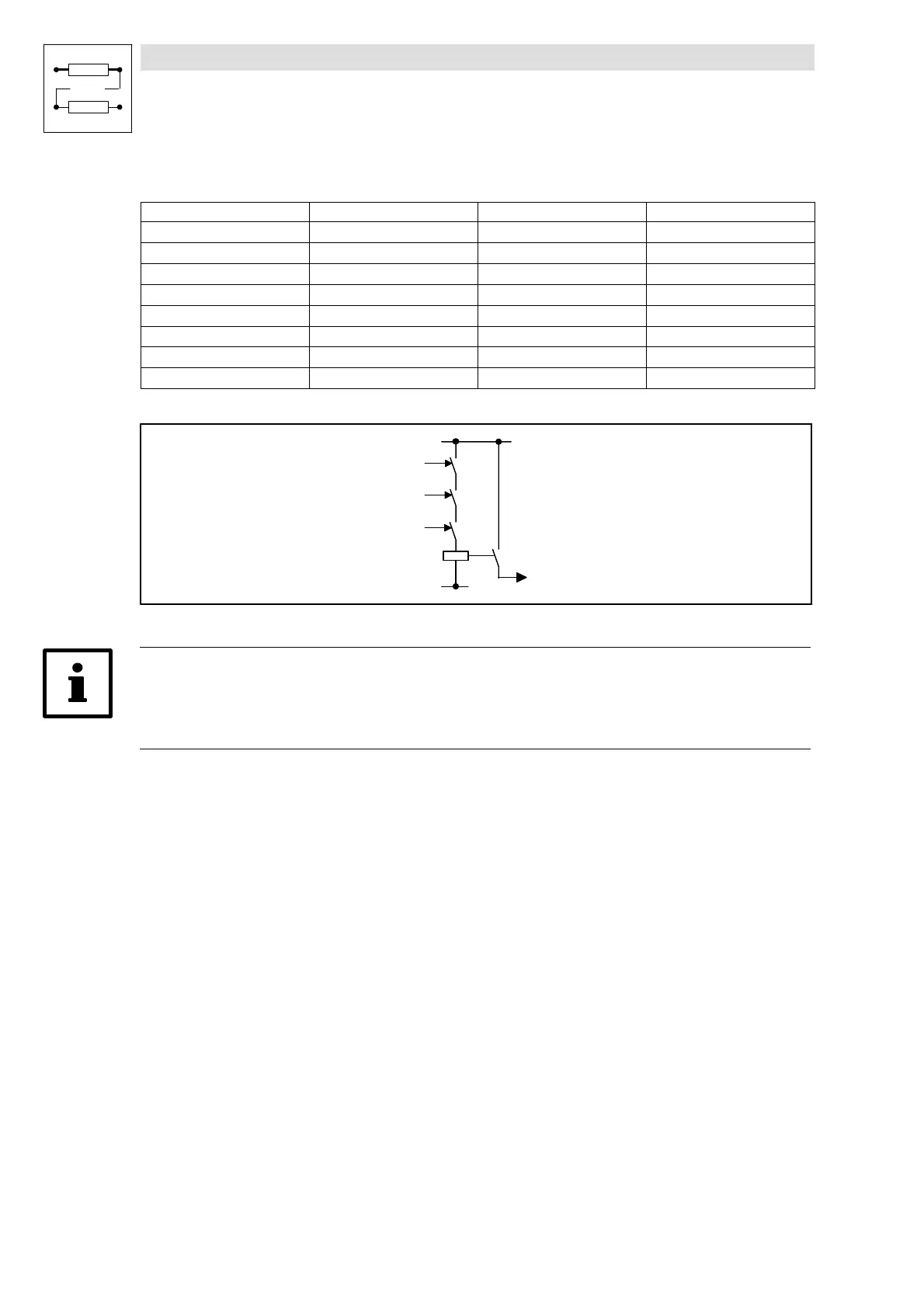

Fig. 3−55 AND function as a series connection of normally−open contacts
Tip!
If only two inputs are required, use the inputs ANDx−IN1 and ANDx−IN2. Assign the input ANDx−IN3
to the signal source FIXED1 via the configuration code.
