3.5.22 Phase−analog converter (CONVPHA)
3−154
l
EDSVS9332P−EXT DE 2.0
CONVPHA3
CONVPHA3
CONVPHA3-OUT
C1617
± 199,99%
CONVPHA3-IN
C1616
2
C1615
1

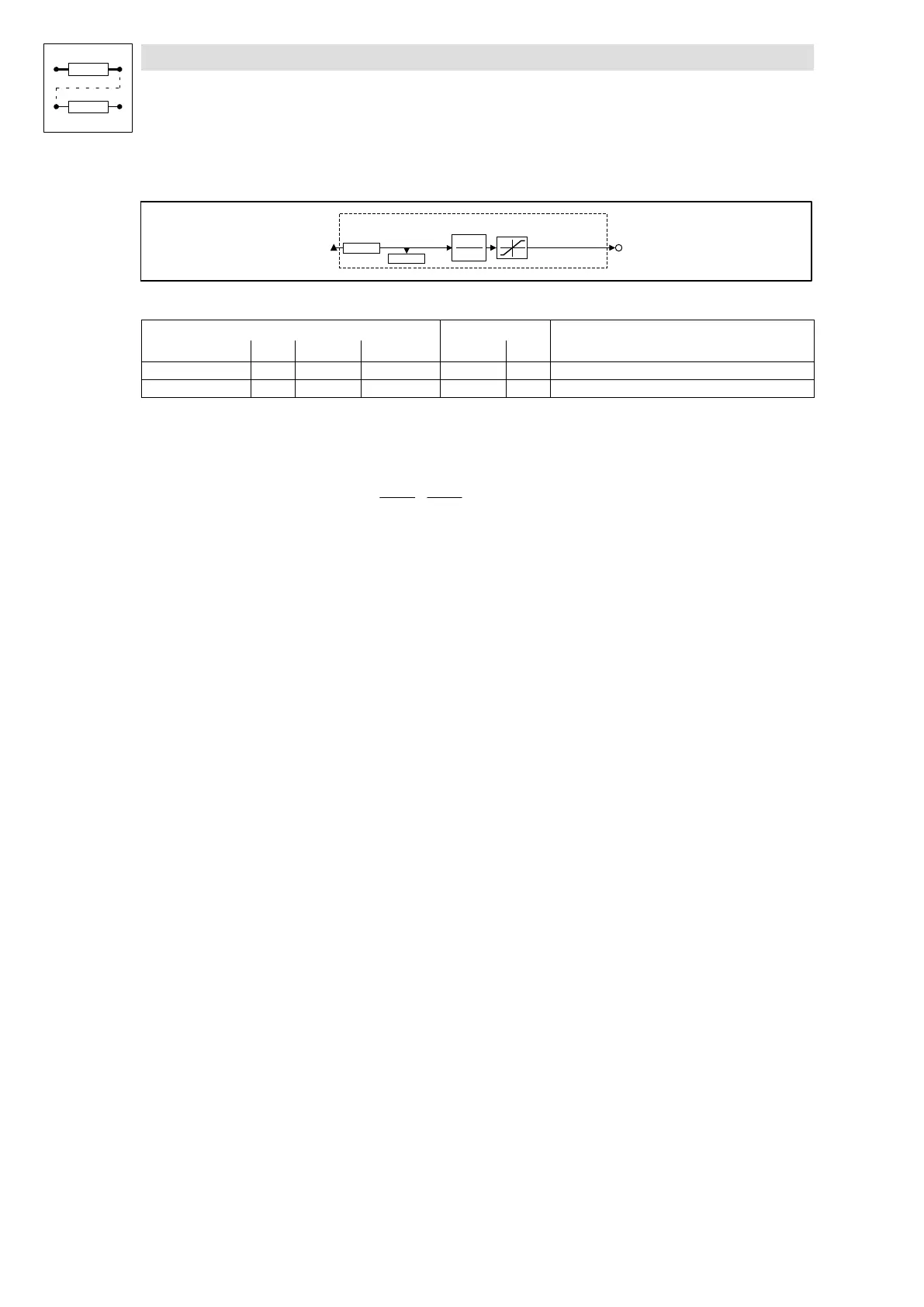

Fig. 3−107 Function block CONVPHA3
Signal
Source Note
Name Type DIS DIS format CFG List
CONVPHA3−IN ph C1617 dec [inc] C1616 3 −
CONVPHA3−OUT a − − − − Limited to ±199.99 %
Function
l Conversion with adaptation using divisor and exact residual value treatment.
l The conversion is performed according to the formula:
CONVPHA3–OUT + CONVPHA3–IN @
1
2
C1615
@
100%
16384
