Mechanical installation
Mounting of g500 short/servo adapters with clamping connection
Mounting the shrink disc with a rotating cover
4
26
Lenze ¯ MA 12.0018 ¯ 2.0
Note!
With the shaft−mounted helical gearbox, the hollow shafts are turned
free in the middle of the hollow shaft, i.e. the bore diameter is greater by
0.1 mm in this area! A sufficient length of the machine shaft must be
observed.

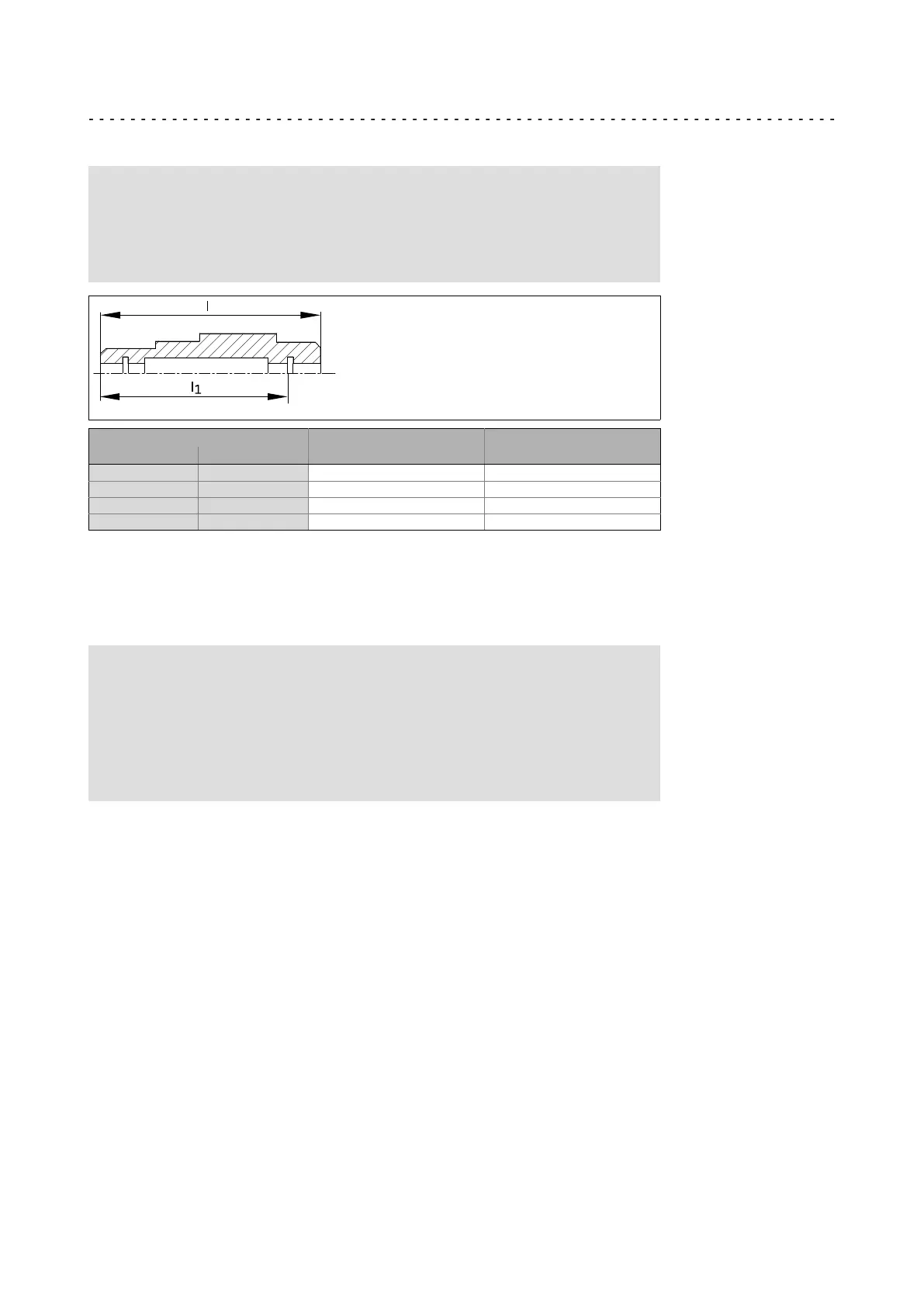

Gearbox
l
1
min l max.
Code Type
G50BS113 g500−S130 89 104
G50BS122 g500−S220 105 120
G50BS140 g500−S400 134 150
G50BS166 g500−S660 150 170
Tab. 6 Dimensions in mm
4.4.6 Mounting the shrink disc with a rotating cover
Stop!
Do not dismantle new shrink disc.
Never tighten clamping screws before the machine shaft is pushed in.
Otherwise the hollow shaft may be deformed plastically. Protect the
shrink disc against contact while in operation by appropriate measures
(e.g. cover).
Degrease hollow shaft bore and machine shaft!
