Mechanical installation
Mounting of g500 short/servo adapters with clamping connection
Mounting the fixed cover
4
30
Lenze ¯ MA 12.0018 ¯ 2.0

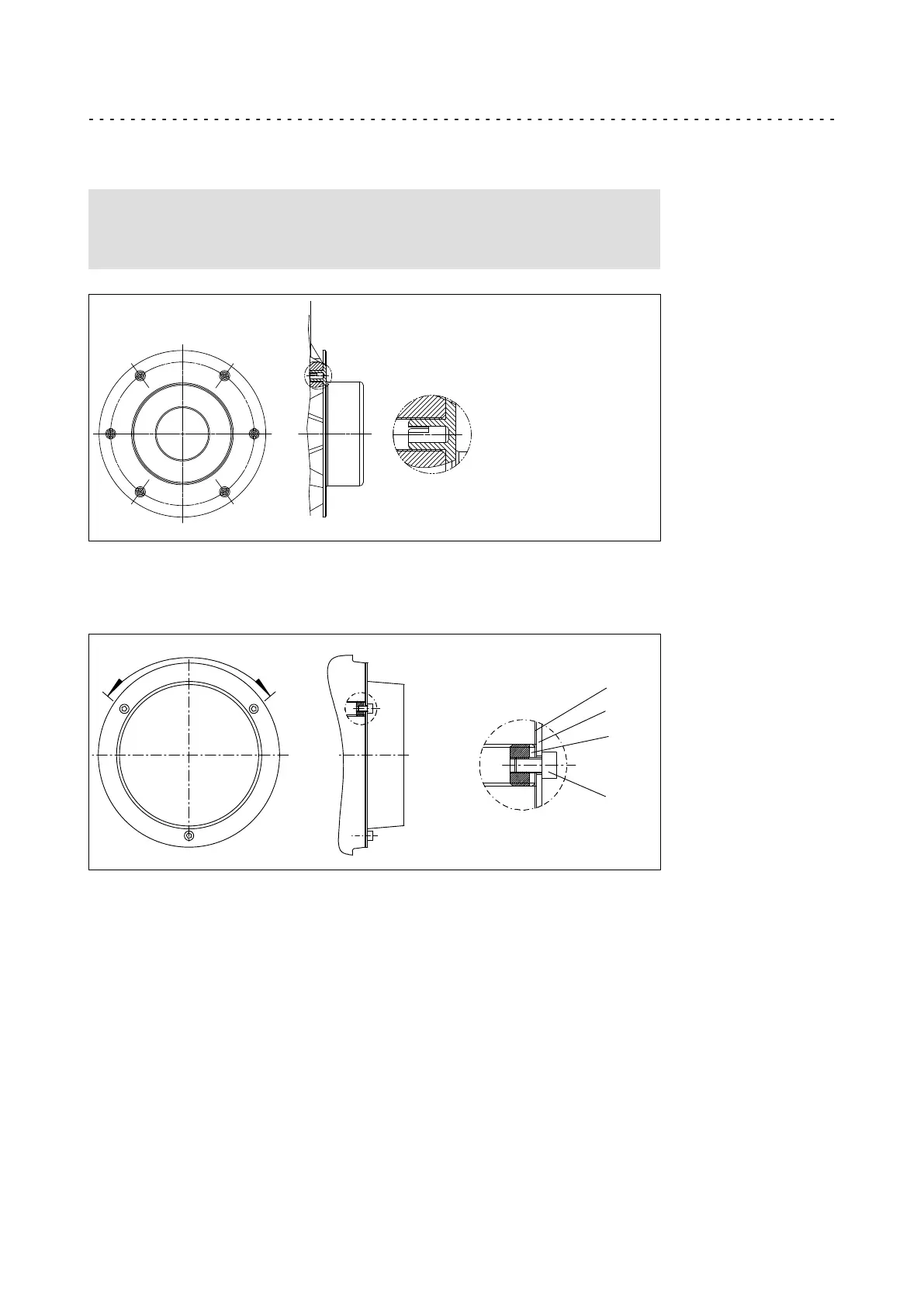

4.4.7 Mounting the fixed cover
Note!
This cover can be ordered optionally and is loosely enclosed with the
shipment!
Clip the protection cover into the bores, 6 x flange side, 4 x motor side.
4.4.8 Mounting the hoseproof hollow shaft cover
1
3
2
4
3x120°
1 Protection cover 3 Reducing bush
2 Cheese head screw 4 Seal
1. Screw the three reducing bushes (3) into the flange with a screwdriver so they are
flush and staggered by 120°.
2. Fit seal (4) between flange and protective cap (1).
3. Fasten the protective cap (1) over the reducing bushes (3) on the flange using
three cheese head screws (2).
