Communication manual 8400 motec CANopen
Product description
Connections and interfaces
3.3 Connections and interfaces

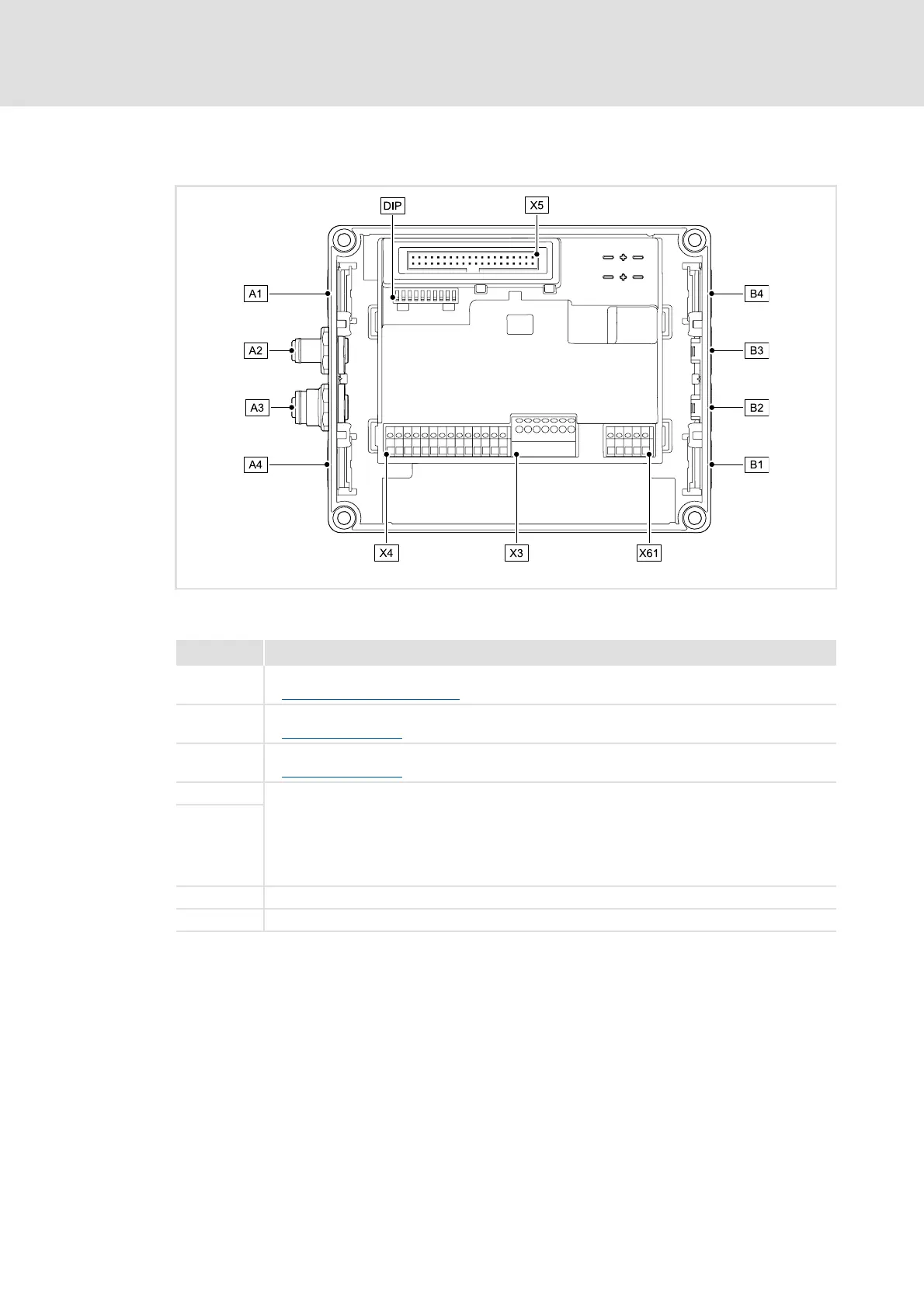

[3-1] CANopen communication unit
E84DG002
Pos. Description
DIP DIP switch
Possible settings via DIP switch
( 32)
A2 CANopen input (M12 pins, 5-pole)
CANopen connection
( 29)
A3 CANopen output (M12 socket, 5-pole)
CANopen connection
( 29)
A1 / A4 Positions for further freely designable inputs and outputs:
• Digital inputs
•Digital output
• Analog input (only for E84DGFCCxJx)
• Relay output (only for E84DGFCCxJx)
• Connection of safety system "Safety Option" (only for E84DGFCCxJx)
B1 ... B4
X3 / X4 / X61 Terminal strips for wiring the connectors at A1 ... A4 and B1 ... B4
X5 Plug connector for connection to the drive unit
