MC-12

TRIGGER SETUP MENU

This section replaces the TRIGGER SETUP section that begins on page 3-35 of the MC-12 User Guide

(Rev 1).

Selecting the SETUP menu TRIGGERS option prompts the selection of the desired TRIGGER OUTPUT

connector. The MC-12 rear panel includes three 12V DC TRIGGER OUTPUT connectors, labeled

PWR, 1, and 2. The connector labeled PWR – the power TRIGGER OUTPUT connector – is not

configurable. It is activated when the MC-12 is powered on and deactivated when the MC-12 is

placed in standby or powered off. The connectors labeled 1 and 2 are configurable.

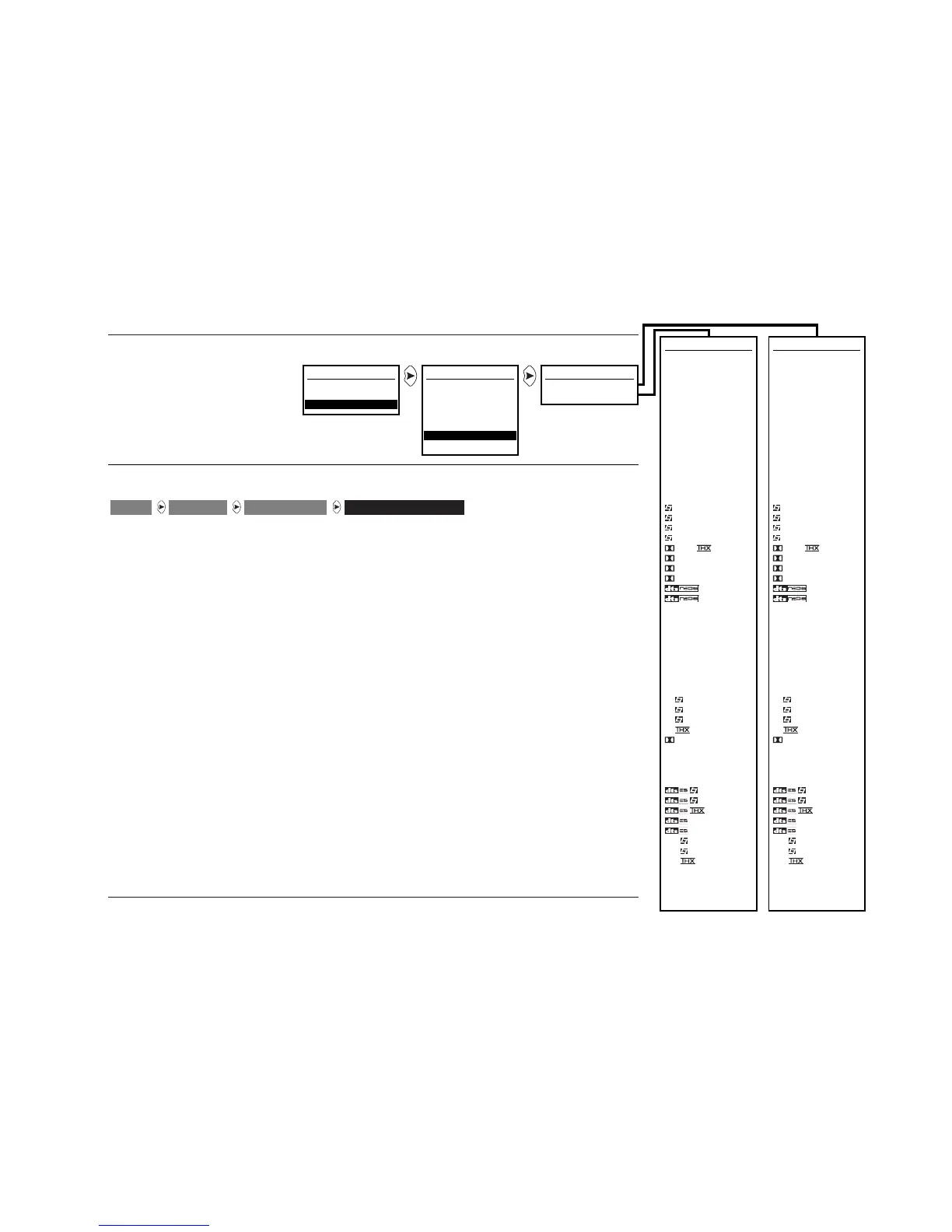

Selecting a TRIGGER OUTPUT connector on the menu shown above accesses the corresponding

TRIGGER SETUP menu shown at the right (TRIGGER 1 or 2 SETUP), which can be used to configure

the connector for remote or program operation. The REMOTE ONLY parameter can be used to

configure the selected TRIGGER OUTPUT connector for remote operation. All other parameters are

referred to as program operation parameters, and can be used to configure the selected connector

for program operation when the REMOTE ONLY parameter is set to OFF.

The TRIGGER 1 and 2 SETUP menus are shown at the right. The parameters on the right side of

these menus are identical regardless of which connector is selected. The parameter values on the

right side are adjustable. The TRIGGER 1 and 2 SETUP menus shown at the right indicate default

parameter values for each connector.

. . . TRIGGER SETUP Menu continues on page 14
