74

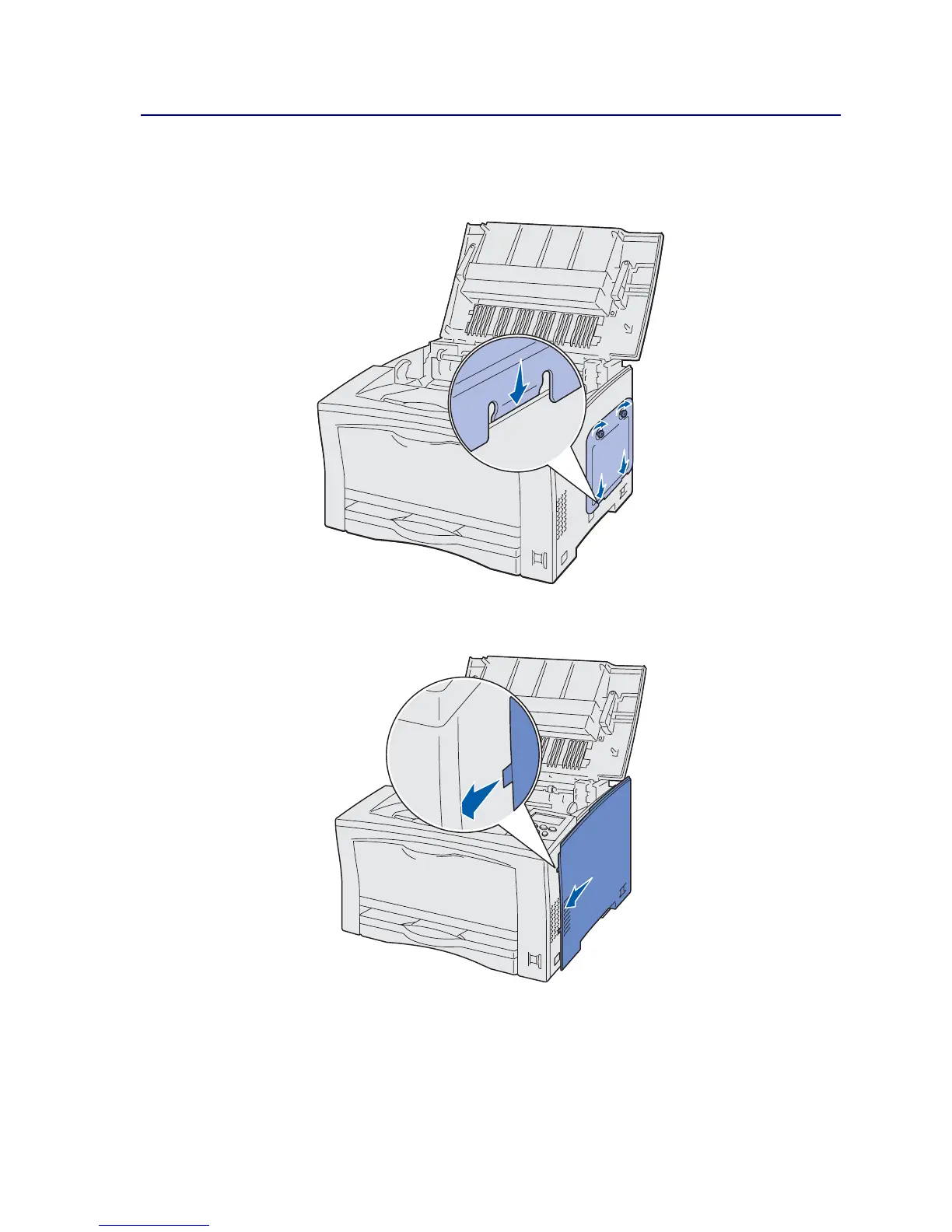

Reinstalling the system board access panel
1 Insert the metal tab on the access cover behind the printer frame, and then secure the cover
with the two screws.
2 Insert the two tabs at the front end of the right cover behind the printer frame, and then align
the cover with the release button.
3 Slide the right cover forward until it securely engages with the printer frame.
4 Close the top cover.
5 Reconnect all cables, plug in the power cord, and turn the printer on.
