THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
R6100
10K
HP_OUT
C6101
1uF
10V
HP_OUT
C6100
1uF
10V
HP_OUT
+3.3V_NORMAL
C6105
1uF
10V
HP_OUT
R6101
10K
HP_OUT
HP_LOUT_AMP
HP_LOUT_MAIN
SIDE_HP_MUTE
+3.3V_NORMAL
R6104
43K
1%
HP_OUT
R6103
33K
HP_OUT_MTK
C6102
1uF
10V
HP_OUT
R6105
4.7K
HP_OUT
C6103
1uF
10V
HP_OUT
HP_ROUT_MAIN
L6100
120-ohm
HP_OUT
BLM18PG121 SN1D
C6104
180pF
HP_OUT_MTK
R6106
43K
1%
HP_OUT
C6107
0.1uF
16V
HP_OUT
C6109
180pF
HP_OUT_MTK
R6102
33K
HP_OUT_MTK
HP_ROUT_AMP
C6104-*1
18pF
HP_OUT_H13
C6109-*1
18pF
HP_OUT_H13
C6108
10pF
50V
HP_OUT
C6106
10pF
50V
HP_OUT
IC6100
TPA6138A2
3
OUTR
2
-INR
4
GND_1
1
+INR
6
VSS
5
MUTE
7
CN
8
CP
9
VDD
10
GND_2
11
UVP
12
OUTL
13
-INL
14
+INL
R6103-*1
43K
1%
HP_OUT_H13
R6102-*1
43K
1%
HP_OUT_H13
2011.09.29

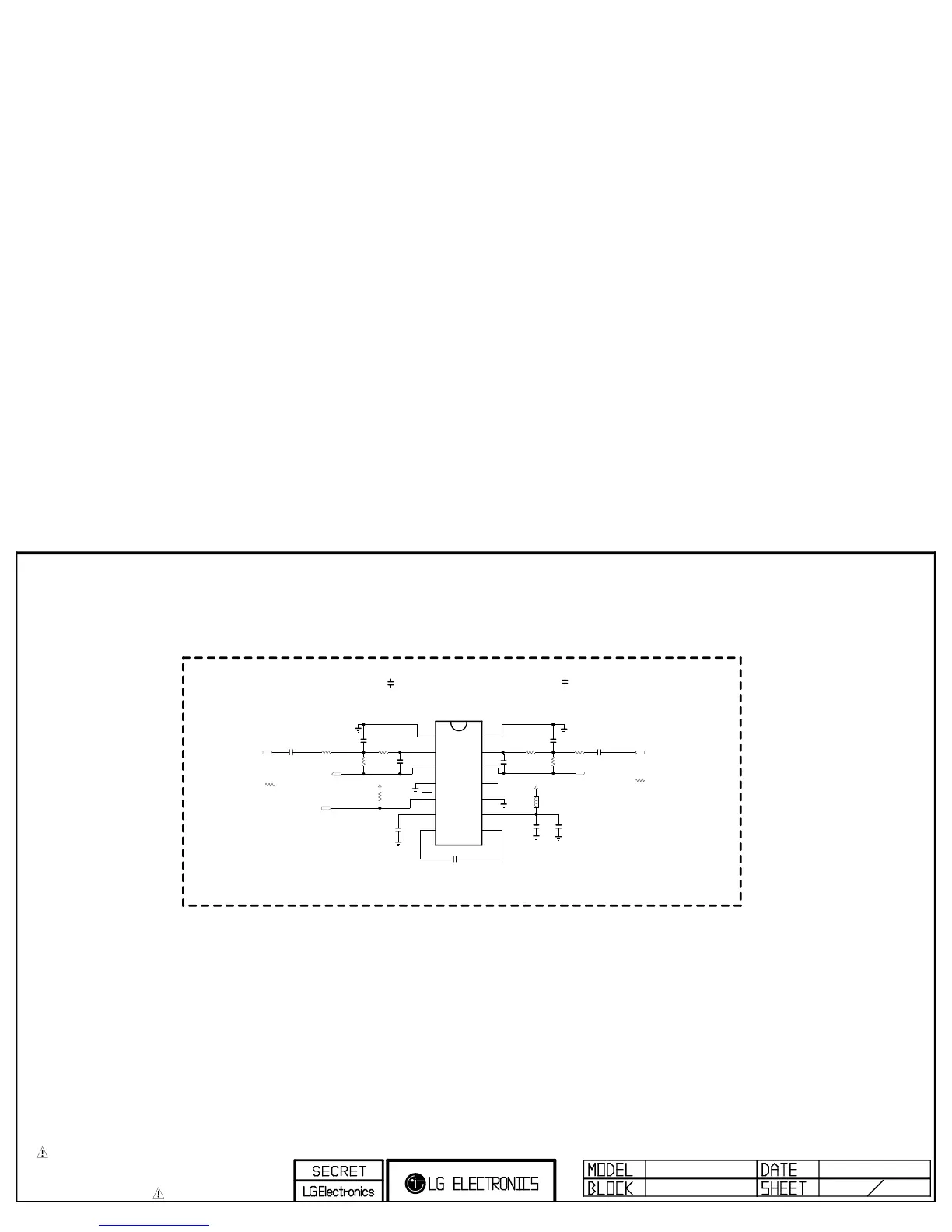

HEADPHONE AMP
61
EARPHONE AMP
