LG 49UH6500 User Manual

- 21 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes

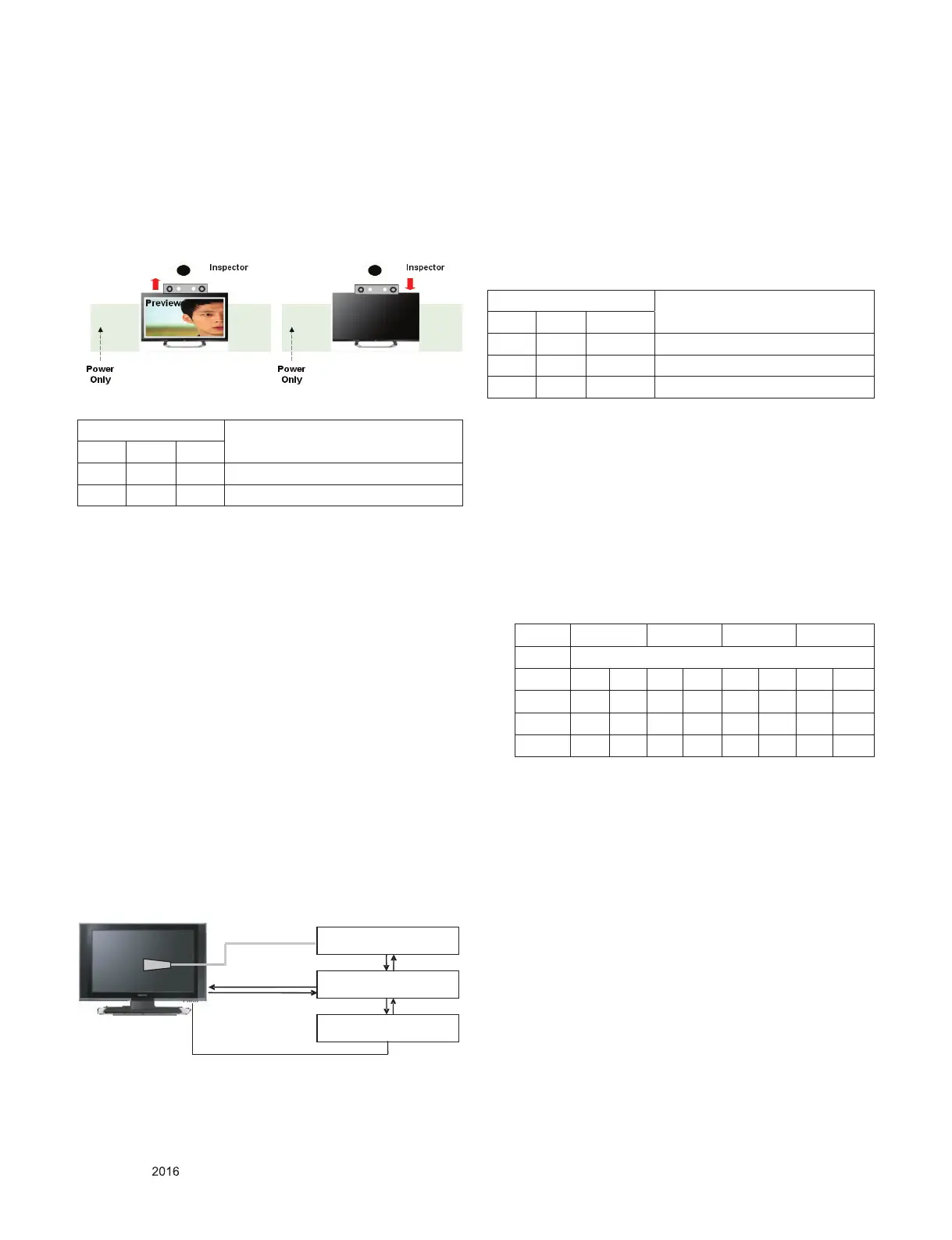

5.3. Camera Port Inspection
(1) Objective : To check how it connects between Camera and
PCBA normally, and their Function
(2) Test Method : This Inspection is available only Power-Only
Status.
1) Push Camera Up
2) Camera’s Preview picture appears on TV Set
3) Push Camera Down
(3) RS-232C Command
RS-232C COMMAND
Explanation
CMD DATA ID
Ai 00 23 Camera Function Start.
Ai 00 24 Camera Function End.
5.4. V-COM Adjust
(ONLY FOR EPI model, 43/49/55UH6600, 43/49/55UH6500)
5.4.1. Overview
▪ V-COM adj. Objective & How-it-works
- Objective: To reduce each Panel’s V-COM voltage deviation
- How-it-works: When V-COM gain in the adjust-OSD of each
SET is at default value, each SET can have flicker by each
Panel’s V-COM voltage deviation. In order to prevent flicker
of each SET, find the desired each Panel’s V-COM voltage
value.
- Adj. condition: normal temperature
1) Surrounding Temperature: 25 ºC ± 5 ºC
2) Warm-up time: About 5 Min
3) Surrounding Humidity: 20% ~ 80%
5.4.2. Equipment
(1) Color Analyzer: CA-310 (LED Module : CH 14) or CM-H505
(2) Adj. Computer (During auto adj., RS-232C protocol is
needed)
(3) Adjust Remocon
(4) Signal : internal flicker Pattern in SET
▪ Color Analyzer Matrix should be calibrated using CS-100
5.4.3. Equipment connection MAP
5.4.4. Adj. Command (Protocol)
<Command Format>
CMD ID DATA CR RF
- CMD: Command
- ID : Command
- Data : Command
(Ex) [Send: va 00 00\r\n]
(1) RS-232C Command used during auto-adj.
RS-232C COMMAND
Explanation
CMD DATA ID
va 00 00 V-com pattern
vb 00 00 ~ FE V-com adj.(internal Flicker pattern)
wb 00 FF V-com adj. completed
5.4.5. Adjustment method
(1) Set TV in POWER-ONLY mode using POWER ONLY key
(2) Zero calibrate probe then place it on the center of the
Display
(3) Connect Cable (RS-232C to USB)
(4) Select Model in “V-com adj. Program” and begin “V-com
adj.”
(5) When V-com adj. is complete (OK)
(6) Remove probe and RS-232C to USB cable to complete adj.
▪ V-com Adj. must begin as start command “va 00 00” , and
finish as end command “wb 00 ff”
▪ V-com adjust data
5.4.5.1 Manual adj. method
TBD
Color Analyzer
Computer
Pattern Generator
RS-232C
RS-232C
RS-232C
Probe
Signal Source
* If TV internal pattern is used, not needed
43” inch 49” inch 55” inch 65” inch
V-com Data
hex dec hex dec hex dec hex dec
Max B4 180 8B 139 85 133 AB 171
Default 96 150 6D 109 68 104 8D 141
Min 78 120 4F 79 49 73 6F 111

LG 49UH6500 Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	49 \
Display brightness	- cd/m²
Native refresh rate	60 Hz
Supported video modes	2160p
Screen format adjustments	16:9
Supported graphics resolutions	3840 x 2160
Motion interpolation technology	TruMotion 120 Hz
3D	No
Annual energy consumption	104 kWh
Package depth	174 mm
Package width	1197 mm
Package height	810 mm
Package weight	17700 g
Product color	Silver
Panel mounting interface	300 x 300 mm
Audio decoders	DTS, Dolby Digital
RMS rated power	20 W
Number of speakers	2
Sustainability certificates	ENERGY STAR
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Cables included	AC
Operating system version	3.0
Operating system installed	Web OS
Wi-Fi standards	Wi-Fi 5 (802.11ac)
HDMI ports quantity	3
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Consumer Electronics Control (CEC)	SimpLink
Number of OSD languages	4
Teletext function	-
Tuner type	Analog & digital
Analog signal format system	NTSC

Weight and Dimensions

Depth (with stand)	282 mm
Height (with stand)	702 mm
Weight (with stand)	13700 g
Depth (without stand)	77.2 mm
Width (without stand)	1106 mm
Height (without stand)	646 mm
Weight (without stand)	9700 g
