LG 50PX950 User Manual

182
APPENDIX
APPENDIX

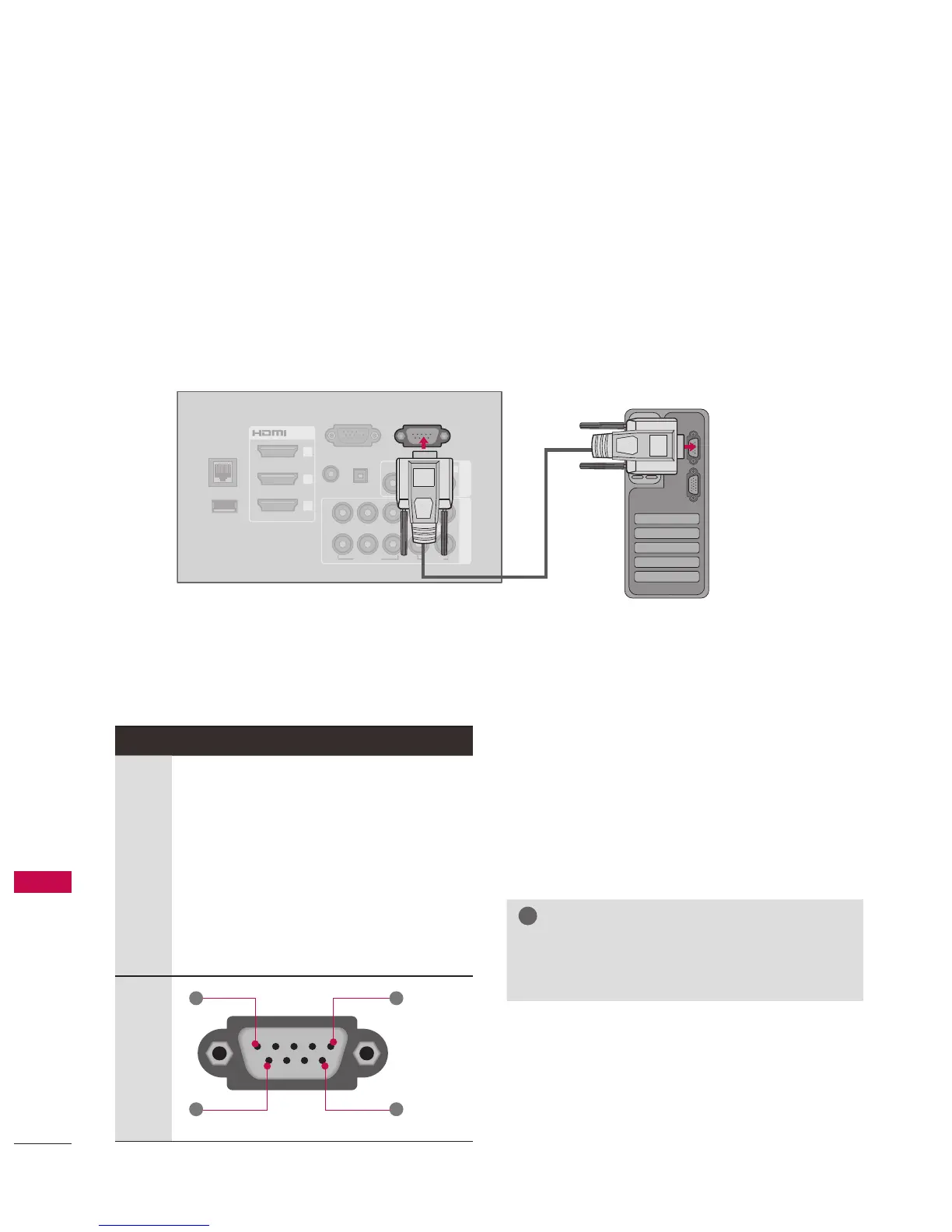

EXTERNAL CONTROL THROUGH RS-232C
RS-232C Setup
The RS-232C port allows you connect the RS-232C input jack to an external control device (such as
a computer or an A/V control system) to control the TV’s functions externally.
󰮌
Note: RS-232C on this unit is intended to be used with third party RS-232C control hardware and
software.
The instructions below are provided to help with programming software or to test functionality using
telenet software.
Type of Connector; D-Sub 9-Pin Male
Communication Parameters
󰮌
Baud rate : 9600 bps
(
UART
)
󰮌
Data length : 8 bits
󰮌
Parity : None
󰮌
Stop bit : 1 bit
󰮌
Communication code : ASCII code
󰮌
Use a crossed (reverse) cable.
!
?
!
?
NOTE
►This product has command echo back in
the RS-232C Command.
No. Pin Name
1
2
3
4
5
6
7
8
9
No connection
RXD
(
Receive data
)
TXD
(
Transmit data
)
DTR
(
DTE side ready
)
GND
DSR
(
DCE side ready
)
RTS
(
Ready to send
)
CTS
(
Clear to send
)
No Connection
1
6
5
9
RGB IN (PC)
LAN
WIRELESS
CONTROL
(RGB/DVI)
/DVI IN
2
3
1
VIDEO AUDIO
L(MONO)
R
VIDEO
AUDIO
COMPONENT INAV IN 1
AUDIO IN
2
1
AUDIO OUT
Y PB PR
L R
OPTICAL DIGITAL
ꔡ
RS-232C IN
(CONTROL& SERVICE)
i.e)
PC
