EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
42

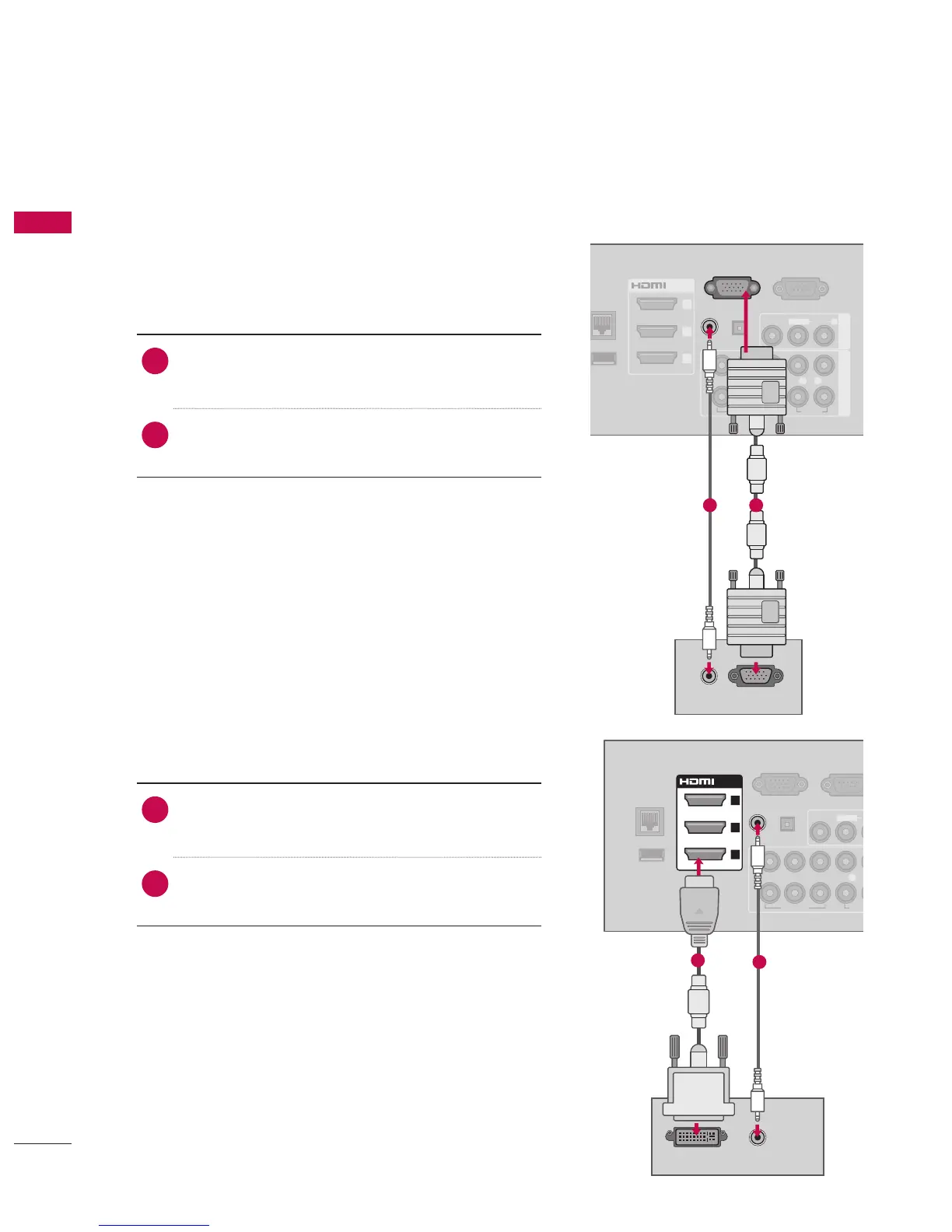

DVI to HDMI Connection
1. How to connect
1
Connect the DVI output of the PC to the HDMI/
DVI IN 1, 2, 3, or 4* jack on the TV.
2
Connect the PC audio output to the AUDIO IN
(RGB/DVI) jack on the TV.
2. How to use
󰮌
Turn on the PC and the TV.
󰮌
Select the HDMI1, HDMI2, HDMI3, or HDMI4* input
source on the TV using the INPUT button on the
remote control.
DVI OUTPUT
AUDIO
LAN
WIRELESS
CONTROL
/DVI IN
2
3
1
VIDEO AUDIO
L(MONO)
R
VIDEO
AUDIO
COMPONENT INAV IN 1
AUDIO OUT
2
1
RGB IN (PC)
RGB OUTPUT
AUDIO
(RGB/DVI)
AUDIO IN
RGB IN (PC)
LAN
WIRELESS
CONTROL
VIDEO
AUDIO
L(MONO)
R
VIDEO
AUDIO
COMPONENT INAV IN 1
AUDIO OUT
2
1
/DVI IN
2
3
1
(RGB/DVI)
AUDIO IN
Y PB PR
L R
OPTICAL DIGITAL
RS-232C IN
(CONTROL& SERVICE)
ꔡ
Y PB PR
L
R
OPTICAL DIGITAL
R
S-232C IN
(CONTROL& SE
RVICE)
ꔡ
1
2
* HDMI4: For Plasma TV
DVI OUTPUT
AUDIO
LAN
WIRELESS
CONTRO
L
/DVI IN
2
3
1
VIDEO AUDIO
L(MONO)
R
VIDEO
AUDIO
COMPONENT INAV IN 1
AUDIO OUT
2
1
RGB IN (PC)
RGB OUTPUT
AUDIO
(RGB/DVI)
AUDIO IN
RGB IN (PC)
LAN
WIRELESS
CONTROL
VIDEO AUDIO
L(MONO)
R
VIDEO
AUDIO
COMPONENT INAV IN 1
AUDIO OUT
2
1
/DVI IN
2
3
1
(RGB/DVI)
AUDIO IN
Y P
B
P
R
L R
OPTICAL DIGITAL
RS-232C IN
(CONTROL& SERVICE)
ꔡ
Y PB PR
L R
OPTICAL DIGITAL
RS-232C IN
(CONTROL& SERVICE)
ꔡ
PC SETUP
This TV provides Plug and Play capability, meaning that a PC adjusts automatically to the TV's set-
tings.
1. How to connect
1
Connect the VGA output of the PC to the
RGB IN
(
PC
)
jack on the TV.
2
Connect PC audio output to the AUDIO IN
(RGB/DVI) jack on the TV.
2. How to use
󰮌
Turn on the PC and the TV.
󰮌
Select the RGB-PC input source on the TV using
the INPUT button on the remote control.
VGA (D-Sub 15 Pin) Connection
12
